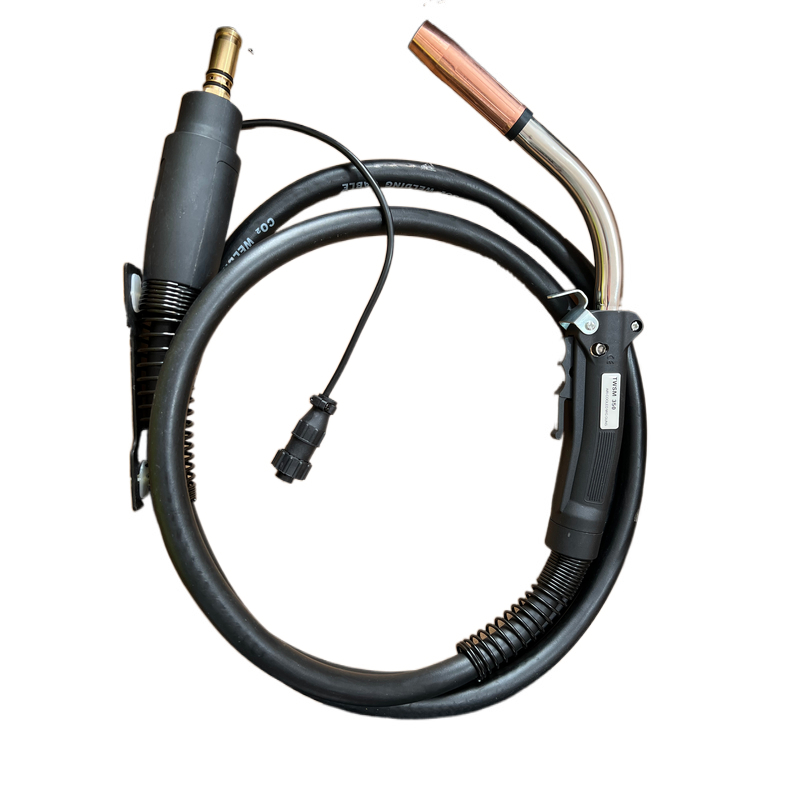

TWECO Spray Master 350A AIR-COOLED MIG TORCH DATE: |
TWECO Spray Master 350A AIR-COOLED MIG GUN TWECO TORCH
Rating: 250A CO2/220A Mixed Gases
Duty Cycle: 80%
Wire Size: .030”-1/16”(0.8-1.6mm)
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW Spray Master 350 MIG Gun Tweco Connector | TWMS310-116 | TWMS312-116 | TWMS315-116 | |
| TW Spray Master 350 MIG Gun Miller Connector | TWMS310M-116 | TWMS312M-116 | TWMS315M-116 | |
| TW Spray Master 350 MIG Gun Lincoln Connector | TWMS310L-116 | TWMS312L-116 | TWMS315L-116 | |
| TW Spray Master 350 MIG Gun Euro Connector | TWMS310X-116 | TWMS312X-116 | TWMS315X-116 | |
| No. | Description | Order | ||

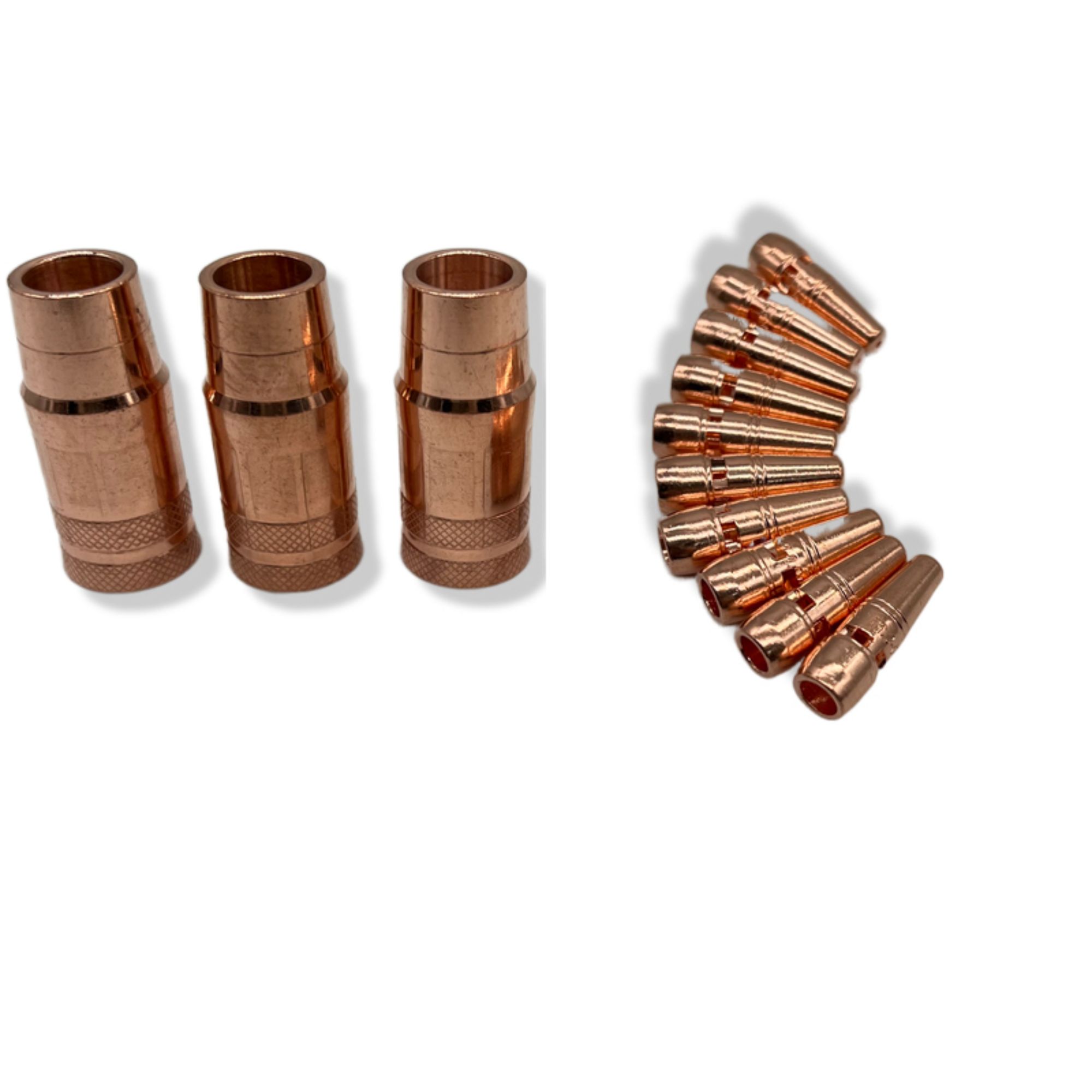

| A | Nozzle 3/8” 9.5mm | EL22CT-37 | ||
| Nozzle 3/8” 9.5mm | EL22CT-37F | |||
| Nozzle 1/2” 12.7mm | EL22CT-50 | |||
| Nozzle 1/2” 12.7mm | EL22CT-50F | |||
| Nozzle 5/8” 15.9mm | EL22CT-62 | |||
| Nozzle 5/8” 15.9mm | EL22CT-62F | |||
| Nozzle 5/8” 15.9mm | EL22CT-62P | |||
| Nozzle 5/8” 15.9mm Heavy Duty | EL22CT-62H | |||
| Nozzle 3/4” 19mm | EL22CT-75 | |||
| B | Contact Tip .035” 0.9mm Standard | 16S-35 | ||
| Contact Tip .040” 1.0mm Standard | 16S-40 | |||
| Contact Tip .045” 1.2mm Standard | 16S-45 | |||
| Contact Tip .052” 1.3mm Standard | 16S-52 | |||
| Contact Tip 1/16” 1.6mm Standard | 16S-116 | |||
| Contact Tip 5/64” 2.0mm Standard | 16S-564 | |||
| Contact Tip 3/32” 2.4mm Standard | 16S-332 | |||
| Contact Tip 7/64” 2.8mm Standard | 16S-764 | |||
| Contact Tip 3/64” AL1.2mm Standard | 16AS-364 | |||
| Contact Tip1/16” AL1.6mm Standard | 16AS-116 | |||
| Contact Tip .035” 0.9mm Tapered | 16ST-35 | |||
| Contact Tip .040” 1.0mm Tapered | 16ST-40 | |||
| Contact Tip .045” 1.2mm Tapered | 16ST-45 | |||
| Contact Tip .052” 1.3mm Tapered | 16ST-52 | |||
| Contact Tip 1/16” 1.6mm Tapered | 16ST-116 | |||

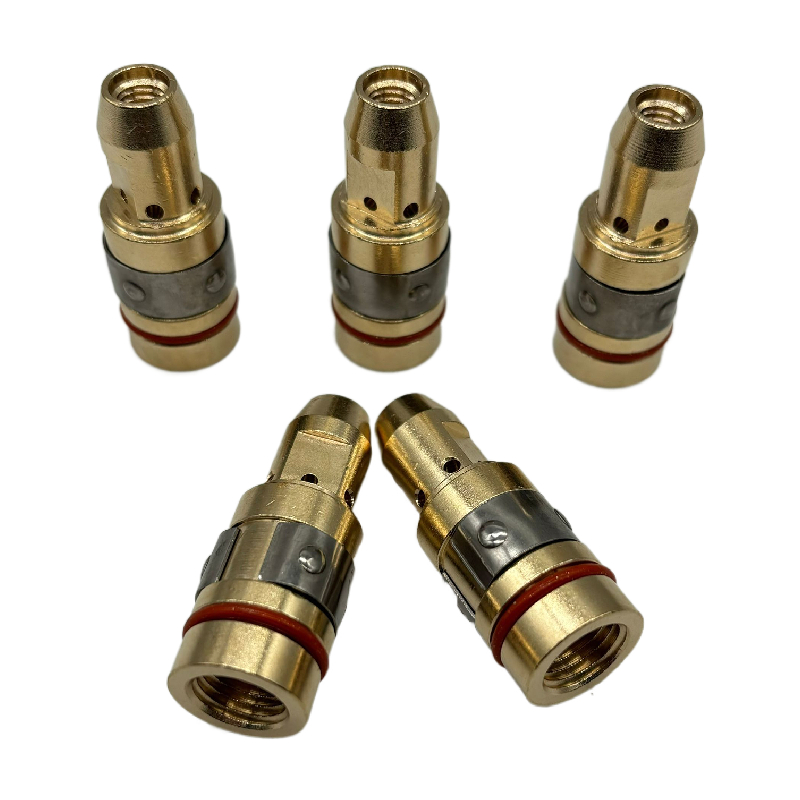

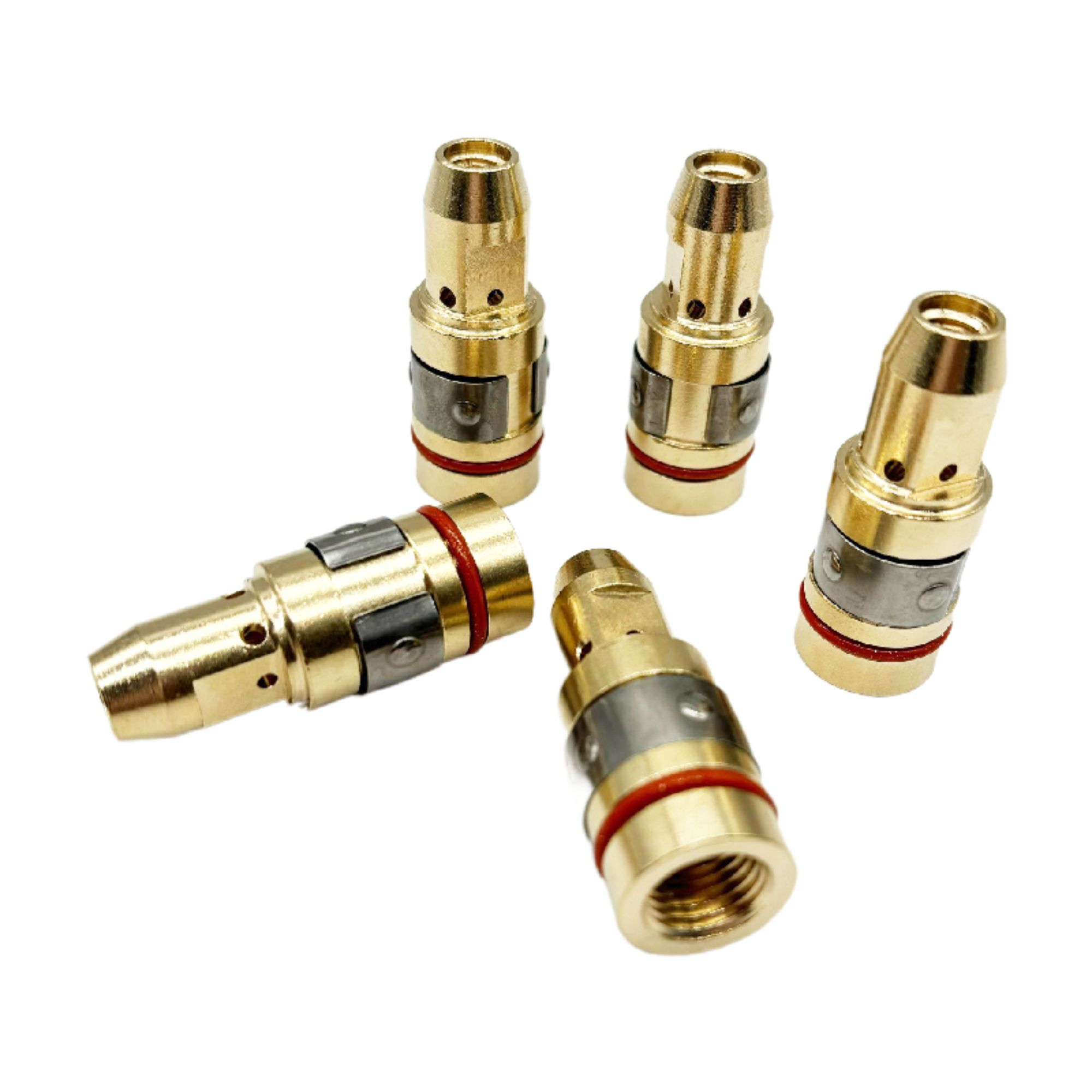

| C | Gas Diffuser | EL52CT-16 | ||
| D | Nozzle Insulator | 63J-3 | ||
| E | Liner for .035”-.045”(0.9-1.2mm) 15FT(4.5m) | 44-3545-15 | ||
| Liner for .035”-.045”(0.9-1.2mm) 25FT(7.6m) | 44-3545-25 | |||
| Liner for .052”-1/16”(1.3-1.6mm) 15FT(4.5m) | 44-116-15 | |||
| Liner for .052”-1/16”(1.3-1.6mm) 25FT(7.6m) | 44-116-25 | |||
| Liner for 1/16”-5/64”(1.6-2.0mm) 15FT(4.5m) | 44-564-15 | |||
| Liner for 1/16”-5/64”(1.6-2.0mm) 25FT(7.6m) | 44-564-25 | |||
| Liner for 3/32”(2.4mm) 15FT(4.5m) | 44-332-15 | |||
| No. | Description | Order | ||

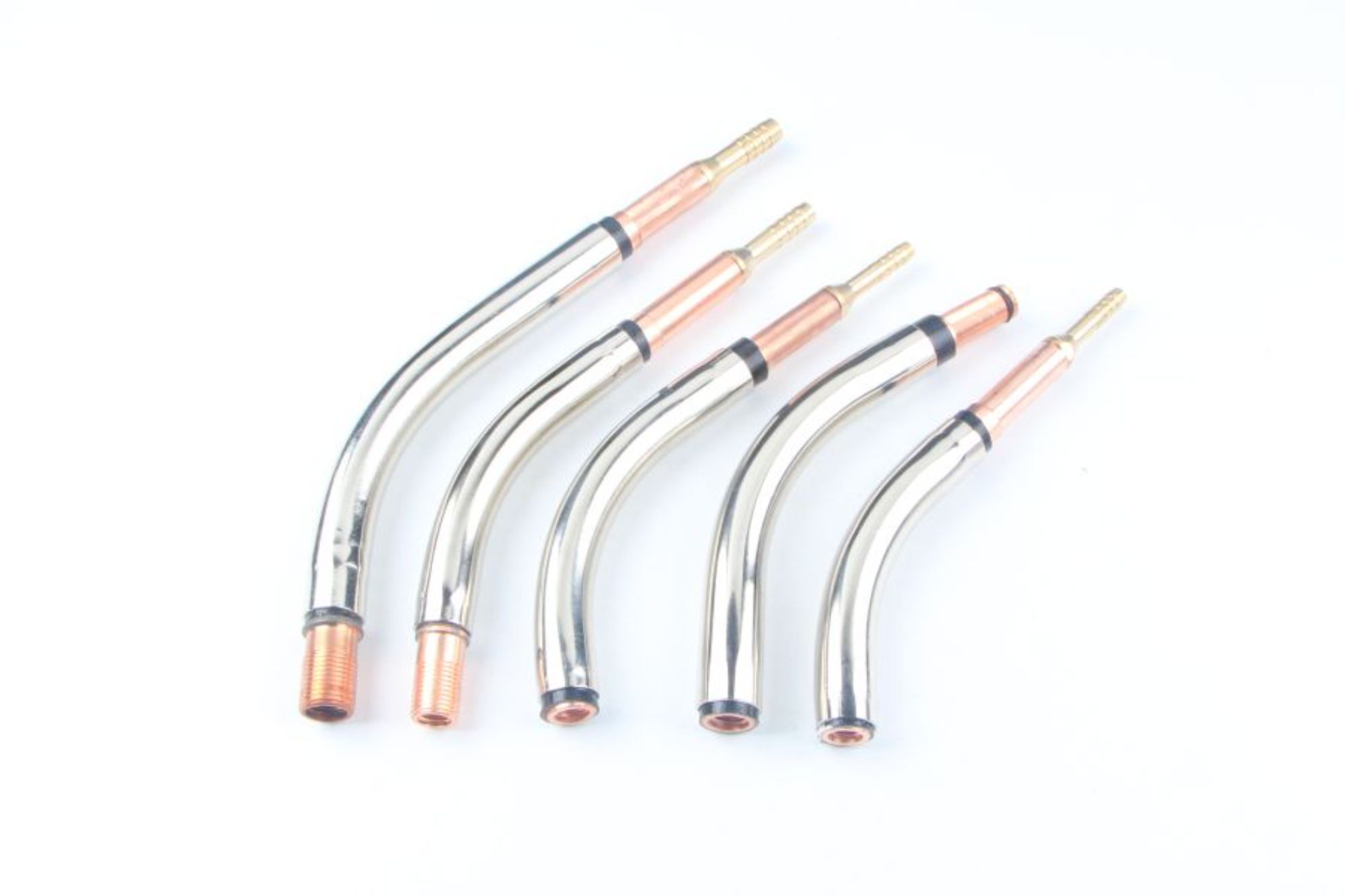

| 1 | Gun Tube 45° | MS63-45 | ||
| Gun Tube 60° | MS63-60 | |||
| 2 | Front Handle | MS84 | ||
| 3 | Trigger Blade Assembly | ELC94-BL | ||
| 4 | Trigger (Standard) | ELC94 | ||
| 5 | Front Strain Relief Spring & Cap | MS144 | ||
| 6 | Cable Assembly | TWMS350 | ||
| 7 | Rear Strain Relief Spring | 235RSSR | ||
| 8 | Rear Case (Direct Plug) | R6RC | ||
| 9 | Control Wire (Tweco/Miller) | MAK-354 | ||
| 9-1 | Control Wire (Lincoln) | LAK-354 | ||

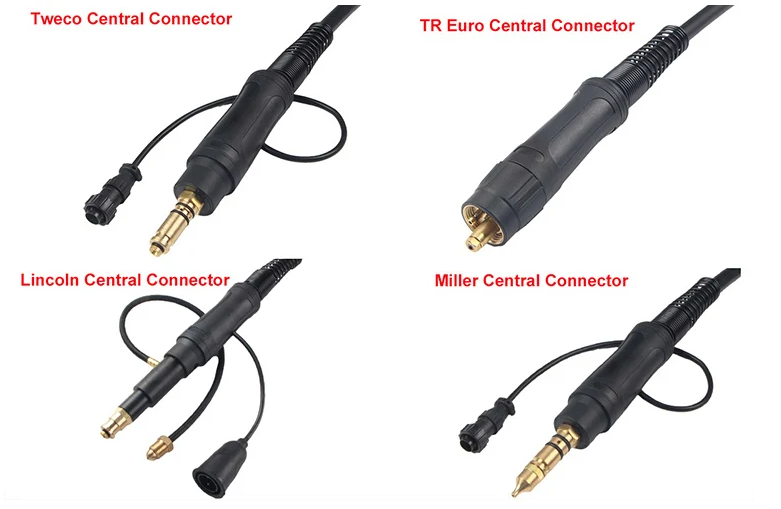

| 10 | Tweco Central Connector | 350-174H | ||
| 11 | Miller Central Connector | 350-174MH | ||
| 12 | Lincoln Central Connector | 350-174LH | ||
| 12-1 | Gas Tube | LKGAS | ||
| 13 | Euro Central Connector | 174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | ||
| 13-2 | Euro Rear Handle | 501.2248 | ||
| 13-3 | Euro Nut | 174X-2 | ||
| 13-4 | Euro Body Assembly | 174EX-1 | ||
| 13-5 | Euro Conduit Cap | 174EX-1C |
| TWECO Spray Master 350A AIR-COOLED MIG TORCH WELDING TORCH AND WELDING PARTS SHOW: |
| TWECO Spray Master 350A AIR-COOLED MIG TORCH TWEOC TORCH PACKING: |
1pc packing in small box, then 5pc packing one carton
135pc packing one pallet.
