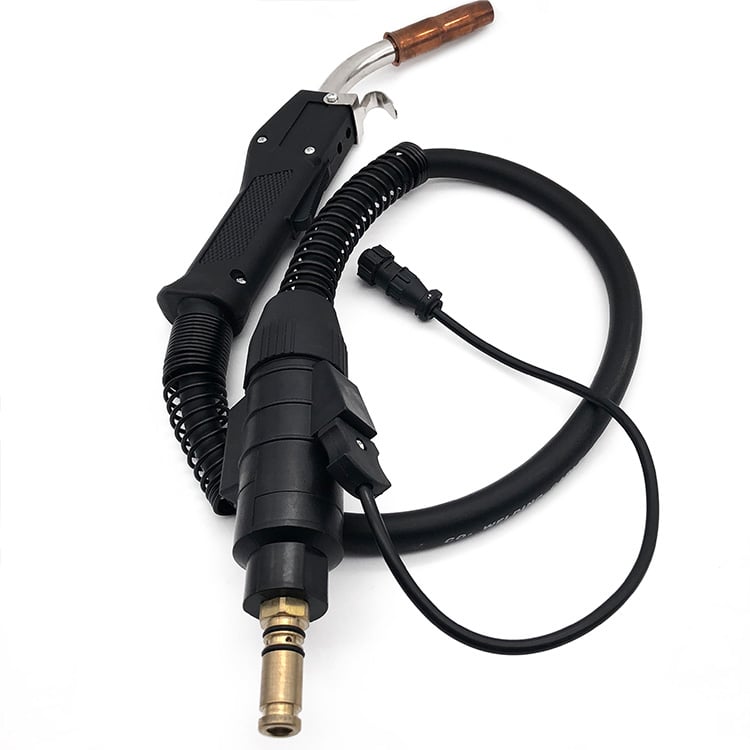

Tweco 5# mig CO2 500A welding torch and mig consumables Date: |
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW5 MIG Gun Tweco Connector | TW5-10T | TW5-12T | TW5-15T | |
| TW5 MIG Gun Miller Connector | TW5-10M | TW5-12M | TW5-15M | |
| TW5 MIG Gun Lincoln Connector | TW5-10L | TW5-12L | TW5-15L | |
| TW5 MIG Gun Euro Connector | TW5-10E | TW5-12E | TW5-15E | |
| No. | Description | Order | ||

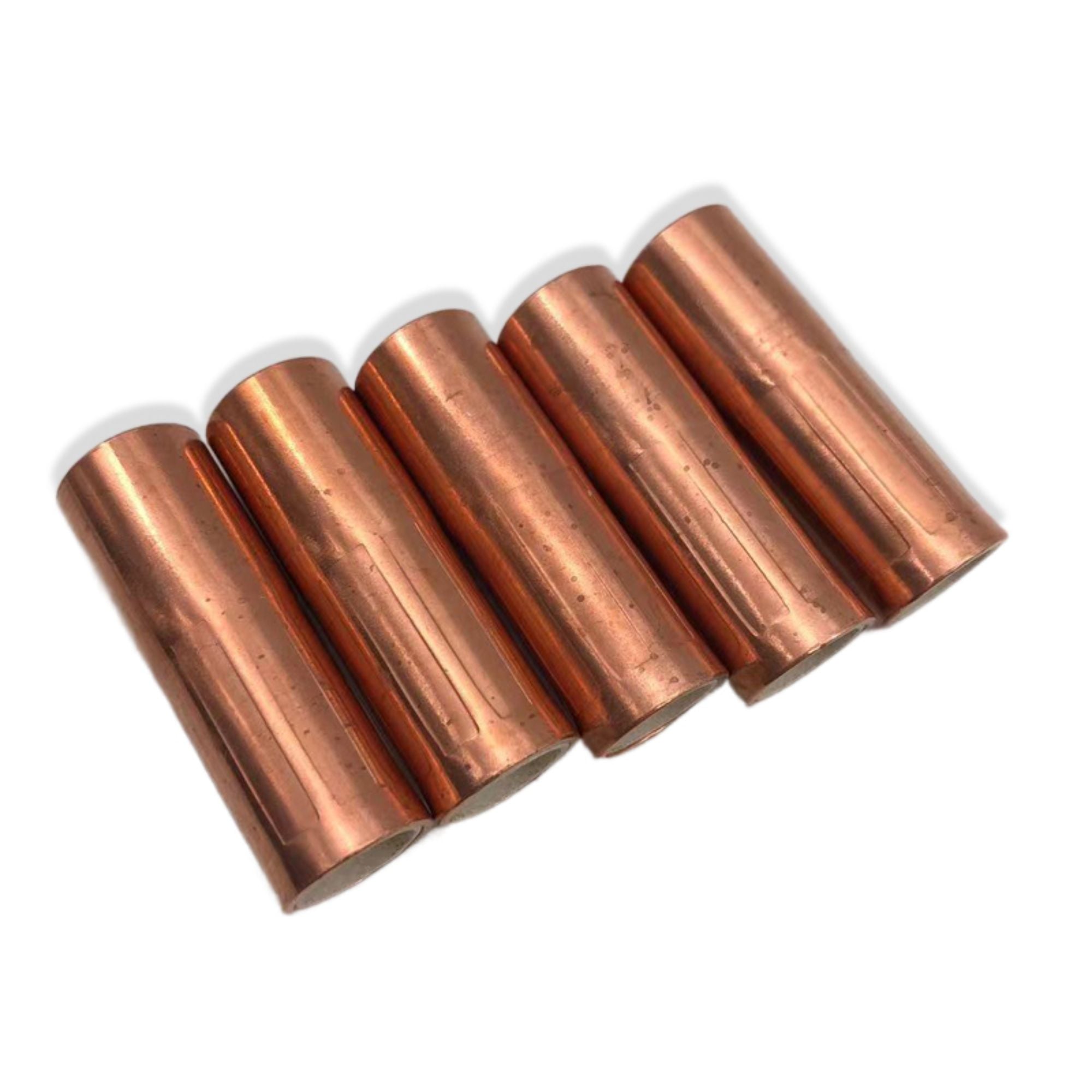

| A | Nozzle 1/2” 12.7mm | 25CT-50 | ||
| Nozzle 5/8″ 5.9mm | 25CT-62 | |||
| Nozzle 3/4″ 19mm | 25CT-75 | |||

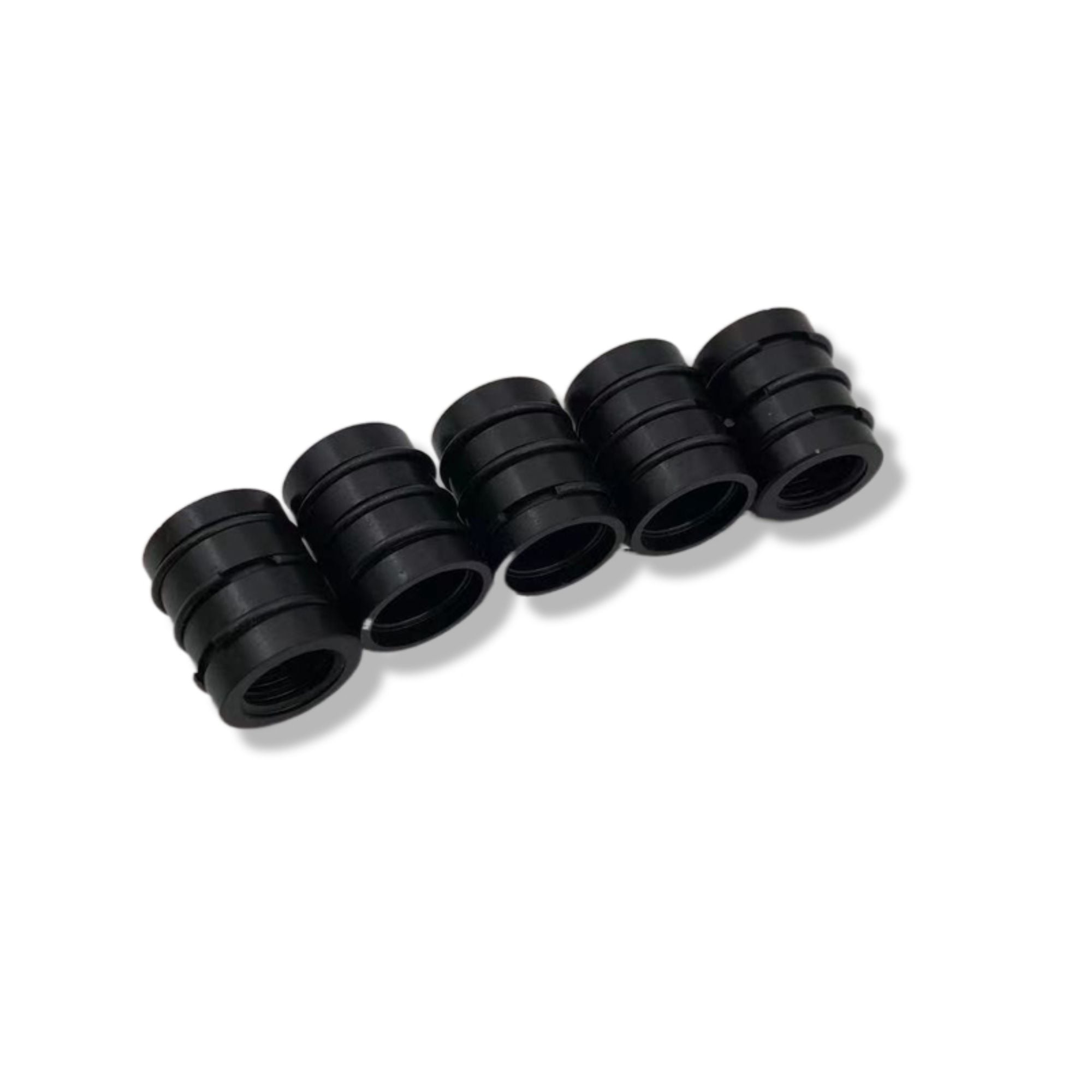

| B | Insulator | 35CT | ||

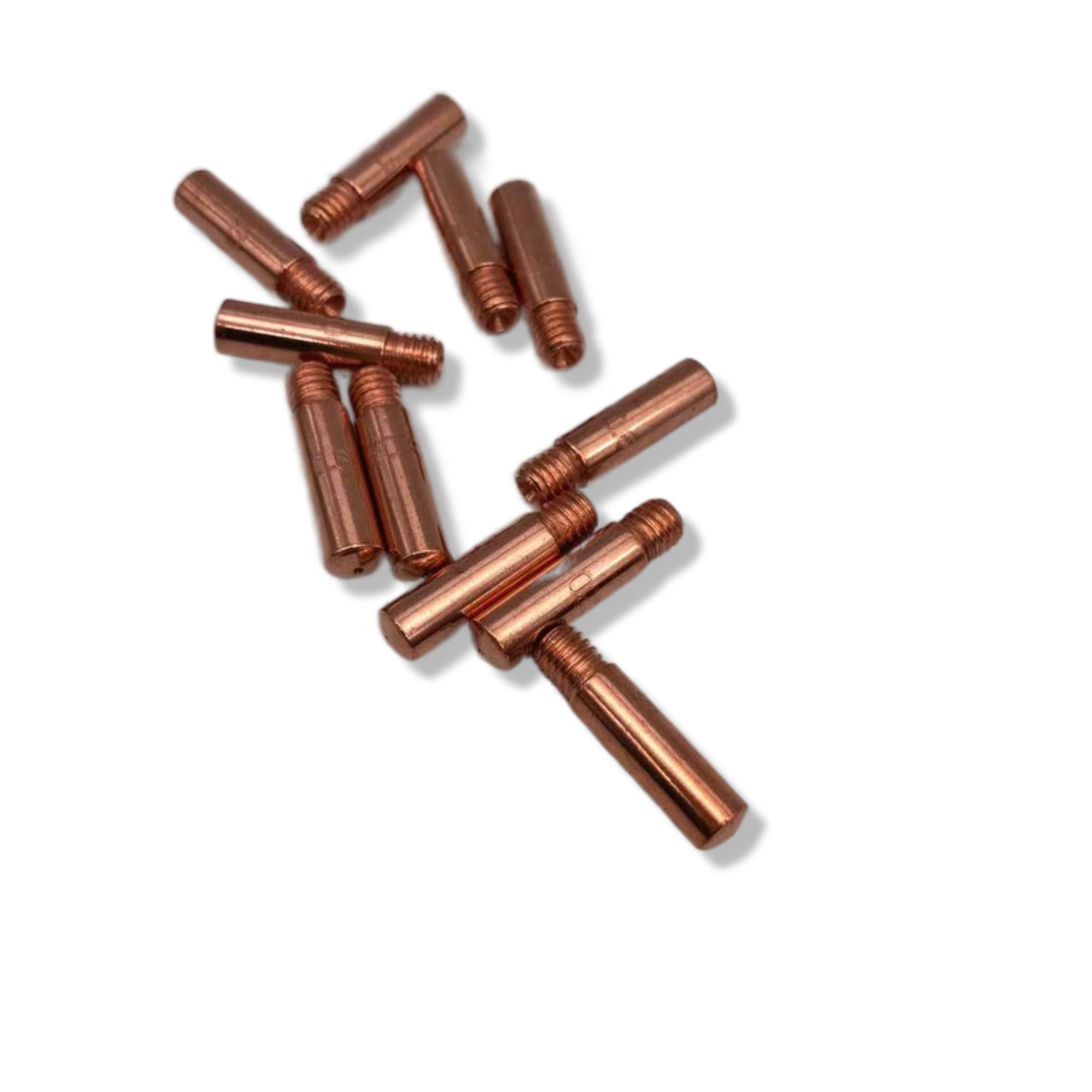

| C | Contact Tip .035” 0.9mm Standard | 15H-35 | ||
| Contact Tip .040” 1.0mm Standard | 15H-40 | |||
| Contact Tip .045” 1.2mm Standard | 15H-45 | |||
| Contact Tip .052” 1.3mm Standard | 15H-52 | |||
| Contact Tip 1/16” 1.6mm Standard | 15H-116 | |||
| Contact Tip 5/64” 2.0mm Standard | 15H-564 | |||
| Contact Tip 3/32” 2.4mm Standard | 15H-332 | |||
| Contact Tip 7/64” 2.8mm Standard | 15H-764 | |||
| Contact Tip 1/8” 3.2mm Standard | 15H-18 | |||

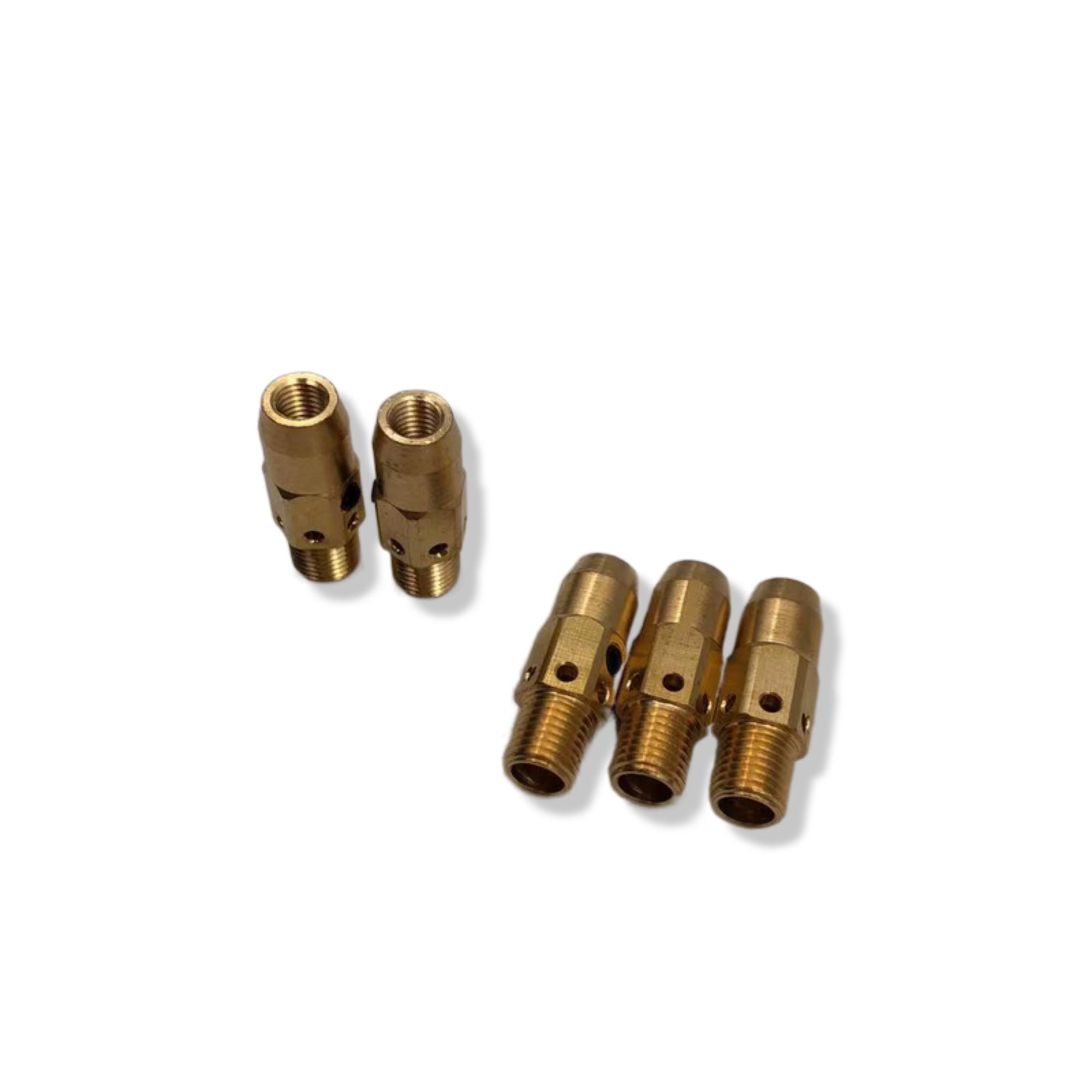

| D | Gas Diffuser Use 0.9-1.6mm Liners | 55 | ||
| Gas Diffuser Use 1.6-2,0mm Liners | 55SW | |||
| Gas Diffuser Use 2.0-3.2mm Liners | 55H | |||
| E | Liner for. 035”-.045”(0.9-1.2mm) 15FT (4.5m) | 45-3545-15 | ||
| Liner for .035”-.045”(0.9-1.2mm) 25FT (7.6m) | 45-3545-25 | |||
| Liner for .052”-1/16”(1.3-1.6mm) 15FT (4.5m) | 45-116-15 | |||
| Liner for .052”-1/16”(1.3-1.6mm) 25FT (7.6m) | 45-116-25 | |||
| Liner for 1/16”-5/64”(1.6-2.0mm) 15FT (4.5m) | 45-564-15 | |||
| Liner for 1/16”-5/64”(1.6-2.0mm) 25FT (7.6m) | 45-564-25 | |||
| Liner for 5/64”-3/32”(2.0-2.4mm) 15FT (4.5m) | 45H-332-15 | |||
| Liner for 5/64”-3/32”(2.0-2.4mm) 25FT (7.6m) | 45H-332-25 | |||
| Liner for 3/32”-7/64”(2.4-2.8mm) 15FT(4.5m) | 45H-764-15 | |||
| Liner for 7/64”-1/8”(2.8-3.2mm) 15FT (4.5m) | 45-18-15 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | 65J-45 | ||
| Gun Tube 60° | 65J-60 | |||
| 2 | Front Cable Assembly | 104 | ||
| 3 | Front Handle | 84RC | ||
| 4 | Switch | 94RR | ||
| 5 | Cable Ball Joint & Support Spring Big | 400.1010B | ||
| 6 | Cable Assembly | TW500 | ||
| 7 | Rear Strain Relief Spring | 235RSSR | ||
| 8 | Rear Case (Direct Plug) | R6RC | ||
| 9 | Control Wire (Tweco/Miller) | MAK-354 | ||
| 9-1 | Control Wire (Lincoln) | LAK-354 | ||
| 10 | Tweco Central Connector | 176SH | ||
| 11 | Miller Central Connector | 350-174MH | ||
| 12 | Lincoln Central Connector | 350-174LH | ||
| 12-1 | Gas Tube | LKGAS | ||
| 13 | Euro Central Connector | 174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | ||
| 13-2 | Euro Rear Handle | 501.2248 | ||
| 13-3 | Euro Nut | 174X-2 | ||
| 13-4 | Euro Body Assembly | 174EX-1 | ||
| 13-5 | Euro Conduit Cap | 174EX-1C |
| Tweco 5# mig CO2 500A torch and mig consumables Show: |
| Tweco 5# mig CO2 500A torch and mig consumables packing : |
. 1pc packing in small box, then 5pc packing one carton.
135pc packing one pallet.
