Tweco 4# 400A mig CO2 welding torch and cosnuambels DATA:

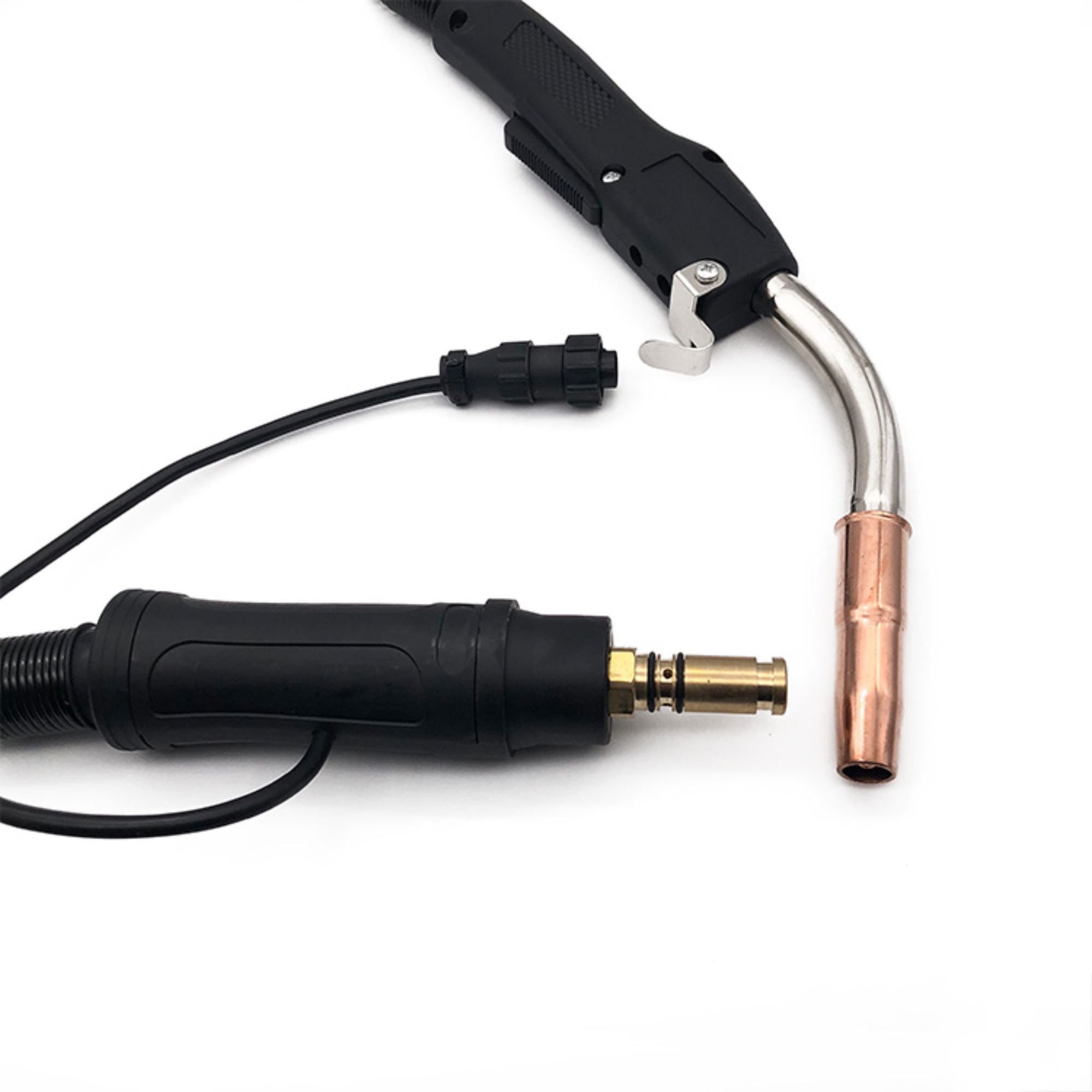

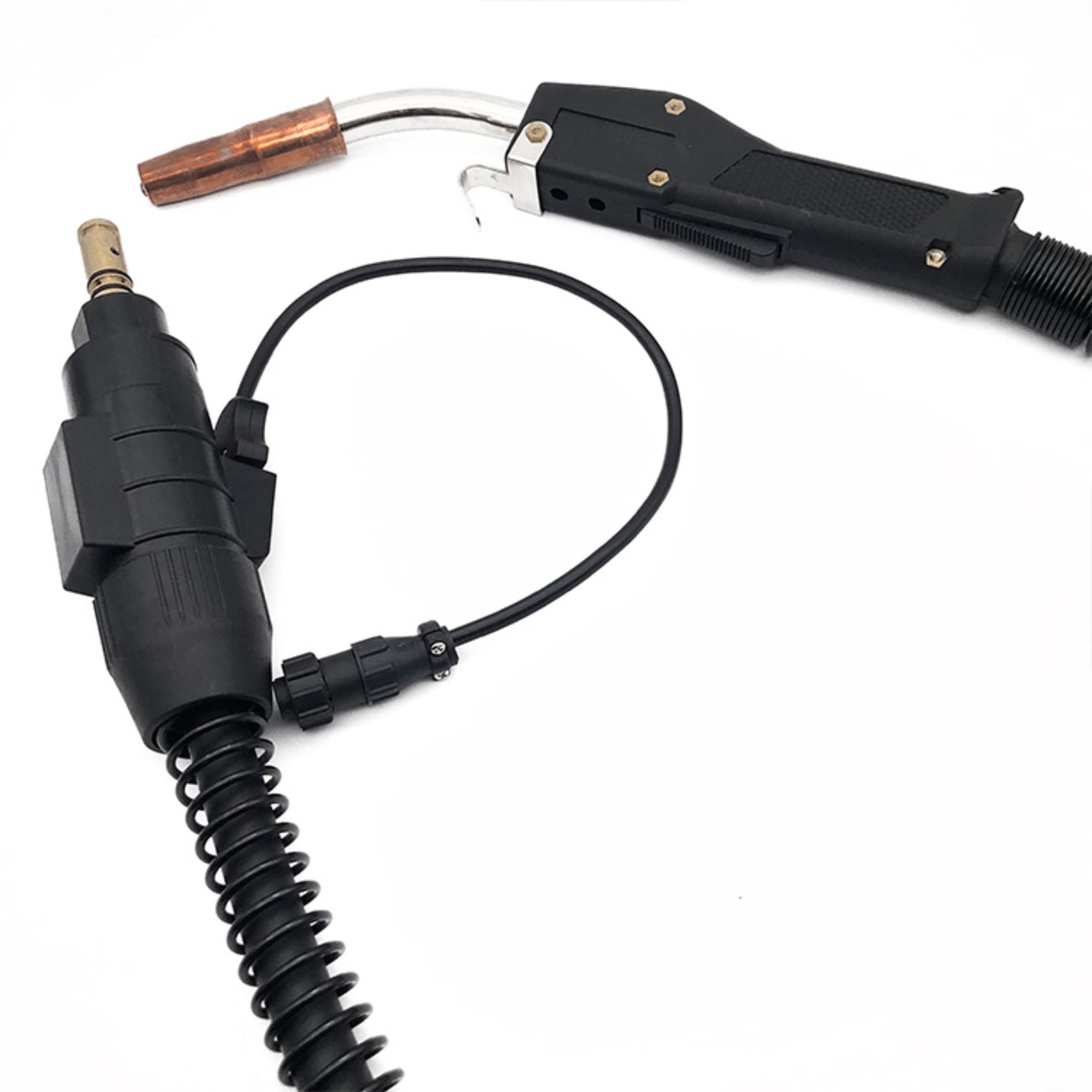

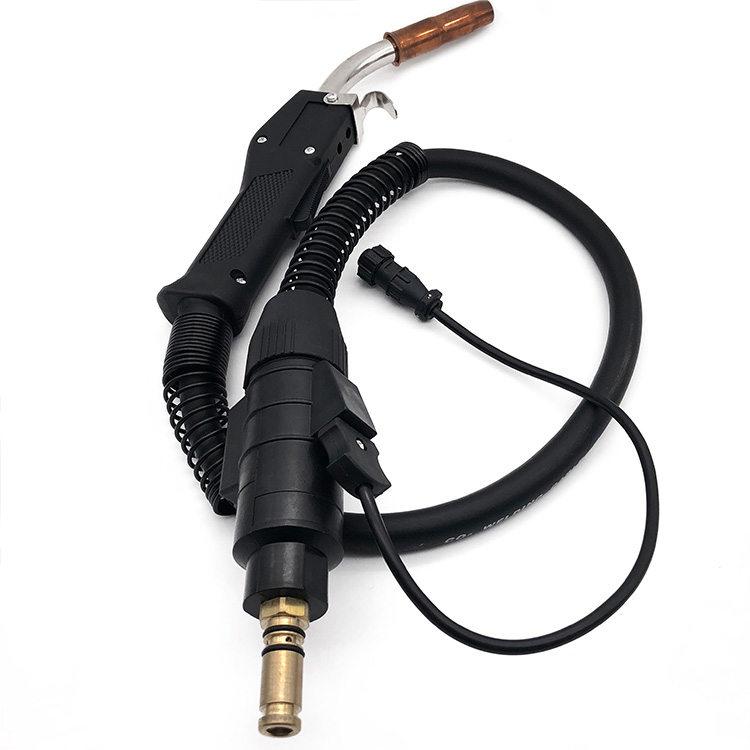

TW4 400A AIR-COOLED MIG GUN
Technical Data:	Rating: 400A CO2/350A Mixed Gases
	Duty Cycle: 80%
	Wire Size: .025”-1/16”(0.6-1.6mm)
	Type	10ft(3.0m)	12ft(3.5m)	15ft(4.5m)
	TW4 MIG Gun Tweco Connector	TW4-10T	TW4-12T	TW4-15T
	TW4 MIG Gun Miller Connector	TW4-10M	TW4-12M	TW4-15M
	TW4 MIG Gun Lincoln Connector	TW4-10L	TW4-12L	TW4-15L
	TW4 MIG Gun Euro Connector	TW4-10E	TW4-12E	TW4-15E

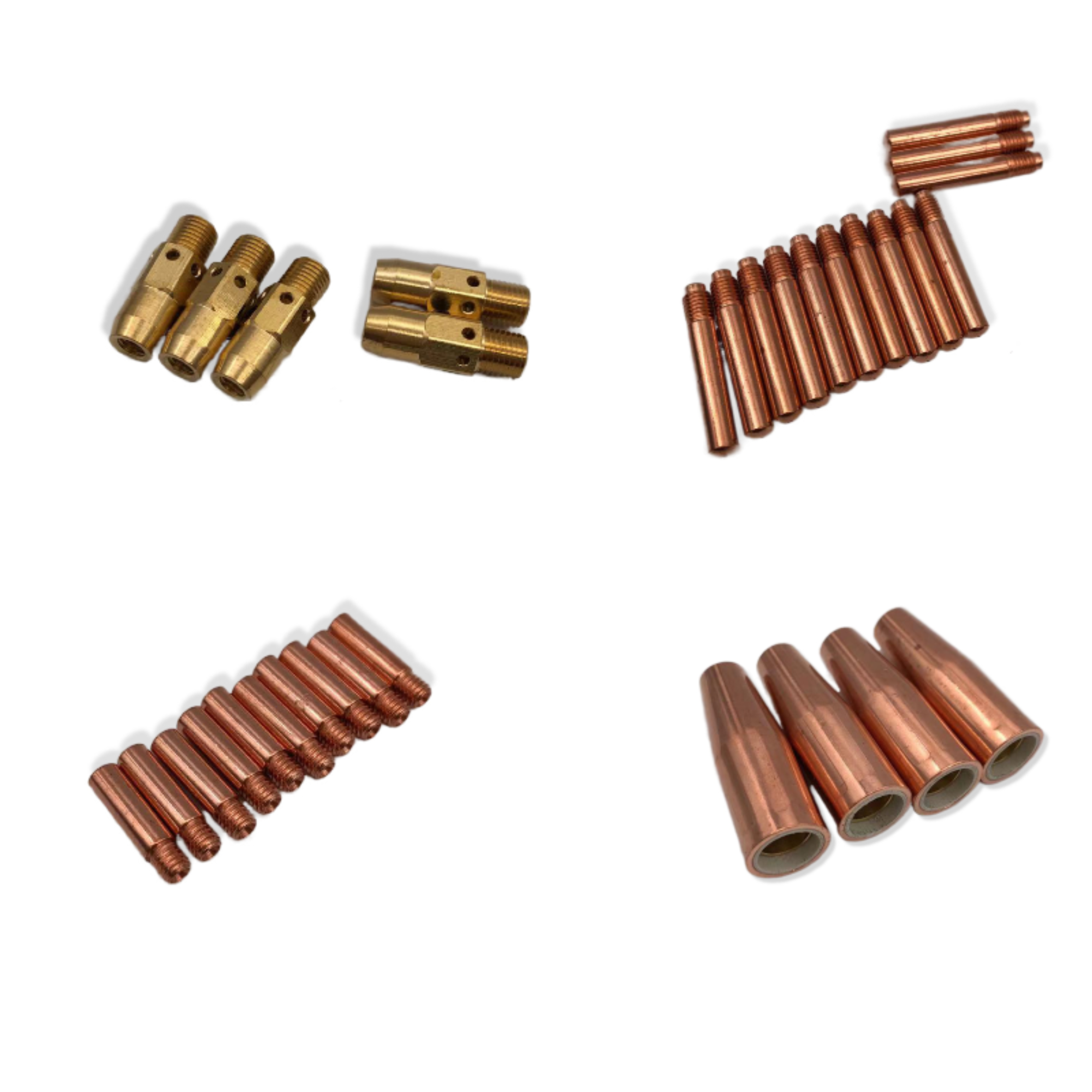

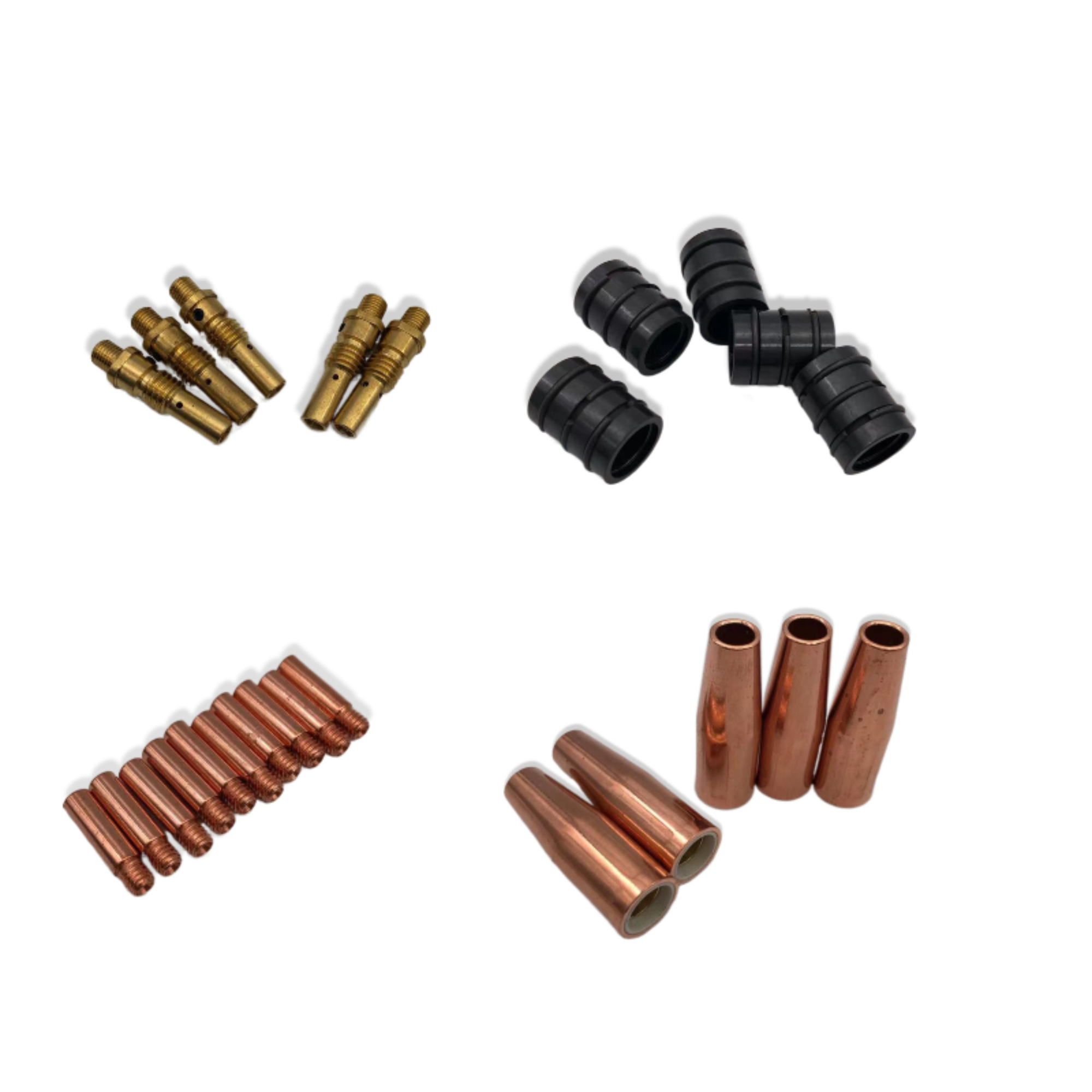

No.	Description	Order
A	Nozzle 1/2”12.7mm Standard	24A-50
	Nozzle 5/8″ 15.9mm Standard	24A-62
	Nozzle 3/4″ 19mm Standard	24A-75
	Nozzle 3/8” 9.5mm Short Stop	24A-37SS
	Nozzle 1/2” 12.7mm Short Stop	24A-50SS
	Nozzle 5/8″ 15.9mm Short Stop	24A-62SS
	Nozzle 3/4″ 19mm Short Stop	24A-75SS
	Nozzle 3/8” 9.5mm Short Stop	24AT-37SS
	Nozzle 5/8″ 15.9mm Heavy Duty	24AH-62
	Nozzle 3/4″ 19mm Heavy Duty	24AH-75
	Nozzle 5/8″ 15.9mm Heavy Duty Short	24AH-62SS
	Nozzle 3/4″ 19mm Heavy Duty Short	24AH-75SS
A-1	Nozzle 3/8” 9.5mm	24CT-37S
	Nozzle 1/2”12.7mm	24CT-50S
	Nozzle 5/8″ 15.9mm	24CT-62S
	Nozzle 3/4″ 19mm	24CT-75S
B	Insulator	34A
B-1	Insulator	34CT
C	Contact Tip .023” 0.6mm Standard	14-23
	Contact Tip .030” 0.8mm Standard	14-30
	Contact Tip .035” 0.9mm Standard	14-35
	Contact Tip .040” 1.0mm Standard	14-40
	Contact Tip .045” 1.2mm Standard	14-45*
	Contact Tip .052” 1.3mm Standard	14-52
	Contact Tip 1/16” 1.6mm Standard	14-116
	Contact Tip 5/64″ 2.0 mm Standard	14-564
	Contact Tip 3/64″AL 1.2 mm Standard	14A364
	Contact Tip .030” 0.8mm Heavy Duty	14H-35
	Contact Tip .035” 0.9mm Heavy Duty	14H-35
	Contact Tip .040” 1.0mm Heavy Duty	14H-40
	Contact Tip .045” 1.2mm Heavy Duty	14H-45
	Contact Tip .052” 1.3mm Heavy Duty	14H-52
	Contact Tip 1/16” 1.6mm Heavy Duty	14H-116
	Contact Tip 5/64″ 2.0 mm Heavy Duty	14H-564
	Contact Tip 3/64″AL 1.2 mm Heavy Duty	14AH-364
	Contact Tip 1/16”AL1.6mm Heavy Duty	14AH-116
	Contact Tip .023” 0.6mm Tapered	14T-23
	Contact Tip .030” 0.8mm Tapered	14T-30
	Contact Tip .035” 0.9mm Tapered	14T-35
	Contact Tip .040” 1.0mm Tapered	14T-40
	Contact Tip .045” 1.2mm Tapered	14T-45
	Contact Tip .052” 1.3mm Tapered	14T-52
	Contact Tip 1/16” 1.6mm Tapered	14T-116
D	Gas Diffuser	54A
E	Liner for .035”-.045”(0.9-1.2mm) 15FT(4.5m)	44-3545-15
	Liner for .035”-.045”(0.9-1.2mm) 25FT(7.6m)	44-3545-25
	Liner for .052”-1/16”(1.3-1.6mm) 15FT(4.5m)	44-116-15
	Liner for .052”-1/16”(1.3-1.6mm) 25FT(7.6m)	44-116-25
	Liner for 1/16”-5/64”(1.6-2.0mm) 15FT(4.5m)	44-564-15
	Liner for 1/16”-5/64”(1.6-2.0mm) 25FT(7.6m)	44-564-25
	Liner for 3/32”(2.4mm) 15FT(4.5m)	44-332-15

No.	Description	Order
1	Gun Tube 45°	64J-45
	Gun Tube 60°	64J-60
2	Front Cable Assembly	104
3	Front Handle	84RC
4	Switch	94RR
5	Cable Ball Joint & Support Spring Big	400.1010B
6	Cable Assembly	TW400
7	Rear Strain Relief Spring	235RSSR
8	Rear Case (Direct Plug)	R6RC
9	Control Wire (Tweco/Miller)	MAK-354
9-1	Control Wire (Lincoln)	LAK-354
10	Tweco Central Connector	350-174H
11	Miller Central Connector	350-174MH
12	Lincoln Central Connector	350-174LH
12-1	Gas Tube	LKGAS
13	Euro Central Connector	174EX-1
13-1	Cable Ball Joint & Support Spring Big	400.1010B
13-2	Euro Rear Handle	501.2248
13-3	Euro Nut	174X-2
13-4	Euro Body Assembly	174EX-1
13-5	Euro Conduit Cap	174EX-1C
