| Tweco 3# mig welding CO2 torch 300A and welding consumables |

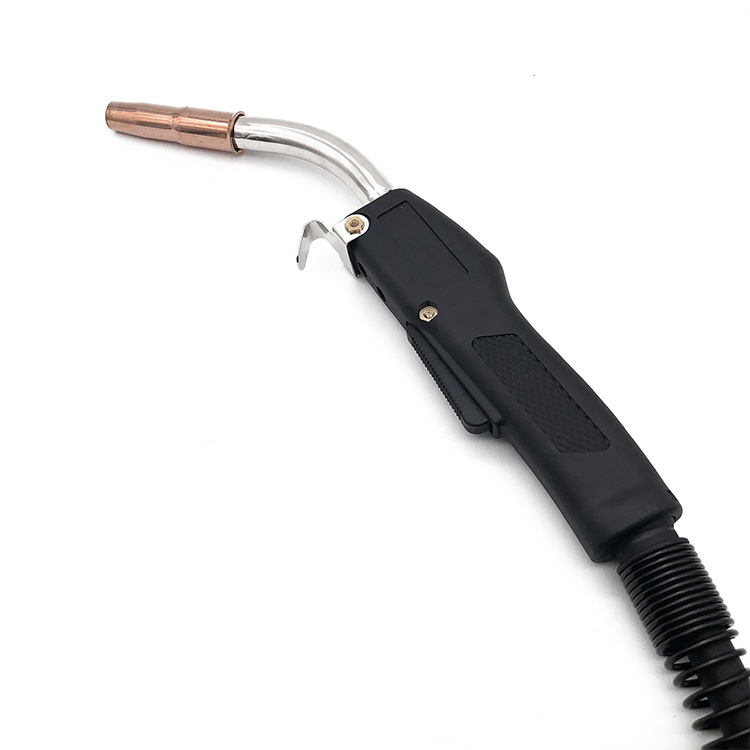

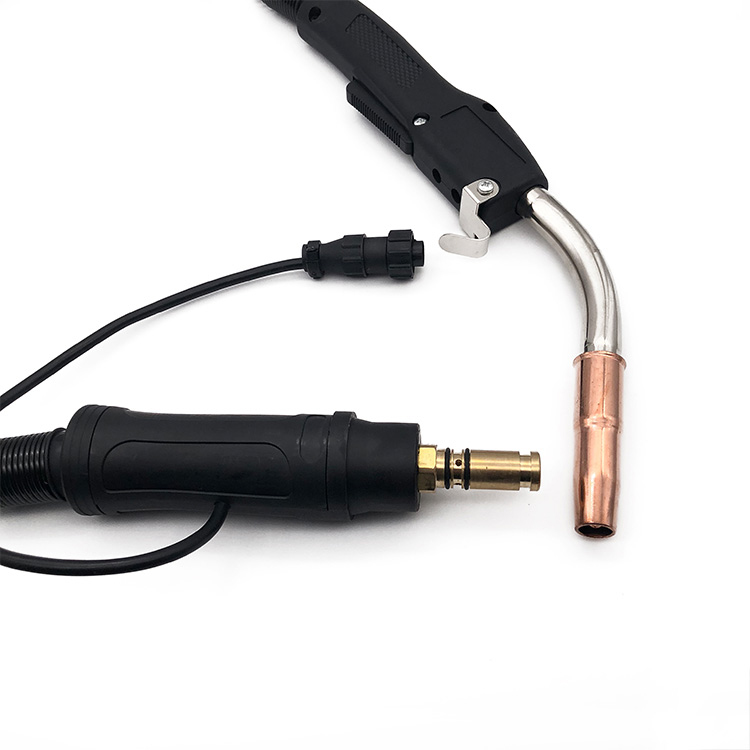

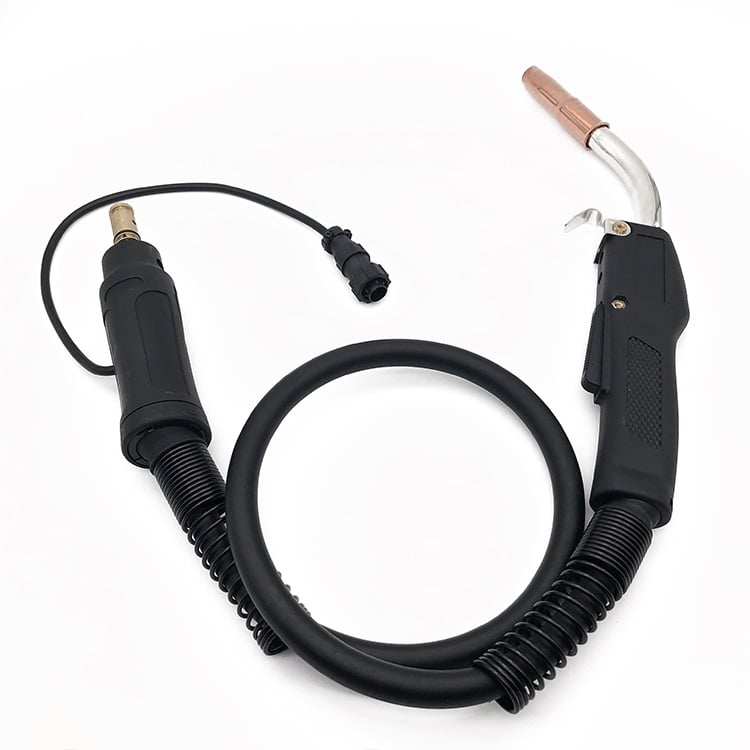

| TWeco 3# 300A AIR-COOLED MIG GUN welding gun | ||||
| Technical Data: | Rating: 300A CO2/250A Mixed Gases | |||
| Duty Cycle: 60% | ||||
| Wire Size: .025”-.045”(0.6-1.2mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW3 MIG Gun Tweco Connector | TW-10T | TW-12T | TW-15T | |
| TW3 MIG Gun Miller Connector | TW-10M | TW-12M | TW-15M | |
| TW3 MIG Gun Lincoln Connector | TW-10L | TW-12L | TW-15L | |
| TW3 MIG Gun Euro Connector | TW-10E | TW-12E | TW-15E | |
| No. | Description | Order | ||

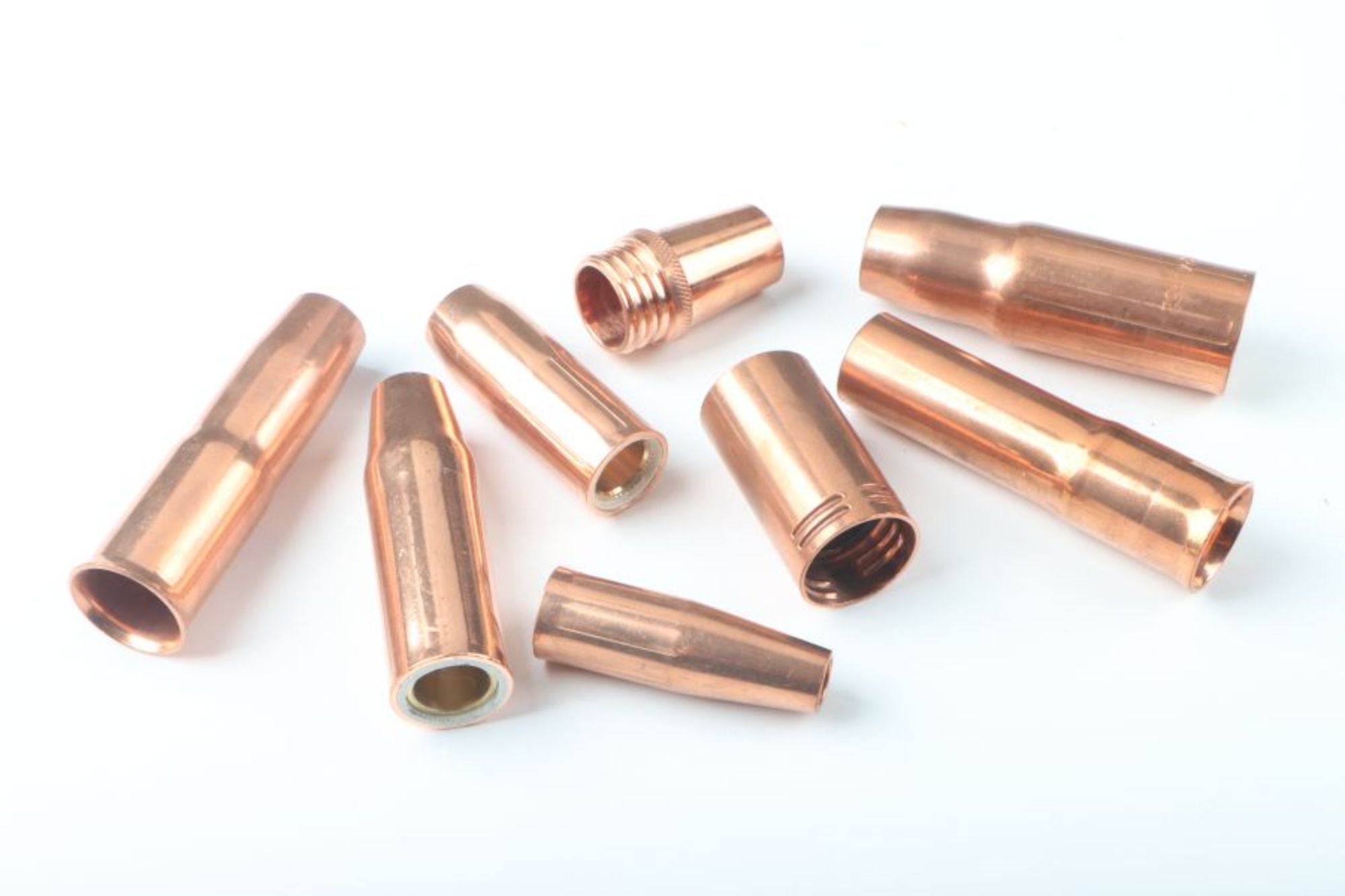

| A | Nozzle 3/8” 9.5mm | 23-37 | ||
| Nozzle 1/2” 12.7mm | 23-50 | |||
| Nozzle 5/8″ 15.9mm | 23-62 | |||
| Nozzle 3/4″ 19mm | 23-75 | |||
| Nozzle 1/2”12.7mm | 23-50F | |||
| Nozzle 5/8″ 15.9mm | 23-62F | |||
| Nozzle 3/4″ 19mm | 23-75F | |||
| Nozzle 1/2”12.7mm Heavy Duty | 23H-50 | |||
| Nozzle 5/8″15.9mm Heavy Duty | 23H-62 | |||
| Nozzle 5/8″15.9mm Heavy Duty | 23H-62F | |||
| Nozzle 3/4″19mm Heavy Duty | 23H-75 | |||
| Nozzle 3/8” 9.5mm Tapered | 23T-37 | |||
| Nozzle 3/8” 9.5mm Tapered | 23T-37F | |||

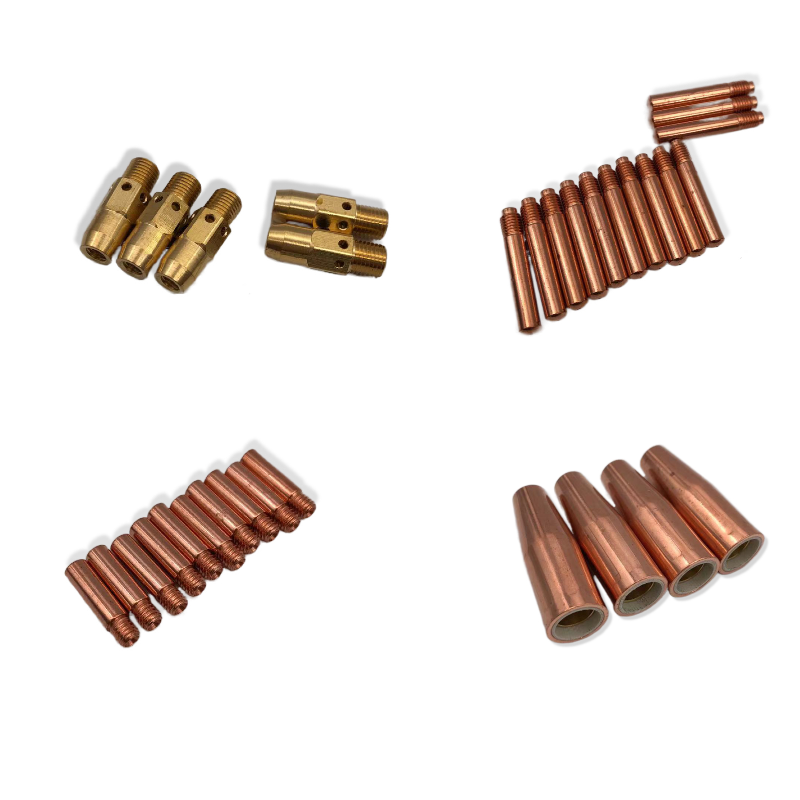

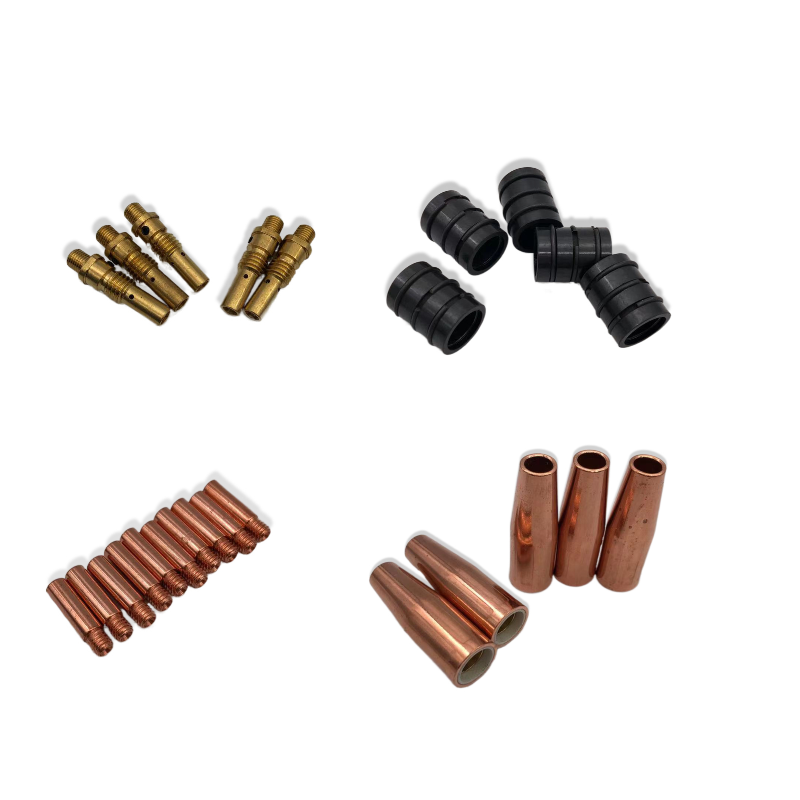

| B | Contact Tip .023” 0.6mm Standard | 14-23 | ||
| Contact Tip .030” 0.8mm Standard | 14-30 | |||
| Contact Tip .035” 0.9mm Standard | 14-35 | |||
| Contact Tip .040” 1.0mm Standard | 14-40 | |||
| Contact Tip .045” 1.2mm Standard | 14-45 | |||
| Contact Tip .052” 1.3mm Standard | 14-52 | |||
| Contact Tip 1/16” 1.6mm Standard | 14-116 | |||
| Contact Tip 5/64″ 2.0 mm Standard | 14-564 | |||
| Contact Tip 3/64″AL 1.2 mm Standard | 14A364 | |||
| Contact Tip .030” 0.8mm Heavy Duty | 14H-35 | |||
| Contact Tip .035” 0.9mm Heavy Duty | 14H-35 | |||
| Contact Tip .040” 1.0mm Heavy Duty | 14H-40 | |||
| Contact Tip .045” 1.2mm Heavy Duty | 14H-45 | |||
| Contact Tip .052” 1.3mm Heavy Duty | 14H-52 | |||
| Contact Tip 1/16” 1.6mm Heavy Duty | 14H-116 | |||
| Contact Tip 5/64″ 2.0 mm Heavy Duty | 14H-564 | |||
| Contact Tip 3/64″AL 1.2 mm Heavy Duty | 14AH-364 | |||
| Contact Tip 1/16”AL1.6mm Heavy Duty | 14AH-116 | |||
| Contact Tip .023” 0.6mm Tapered | 14T-23 | |||
| Contact Tip .030” 0.8mm Tapered | 14T-30 | |||
| Contact Tip .035” 0.9mm Tapered | 14T-35 | |||
| Contact Tip .040” 1.0mm Tapered | 14T-40 | |||
| Contact Tip .045” 1.2mm Tapered | 14T-45 | |||
| Contact Tip .052” 1.3mm Tapered | 14T-52 | |||
| Contact Tip 1/16” 1.6mm Tapered | 14T-116 | |||

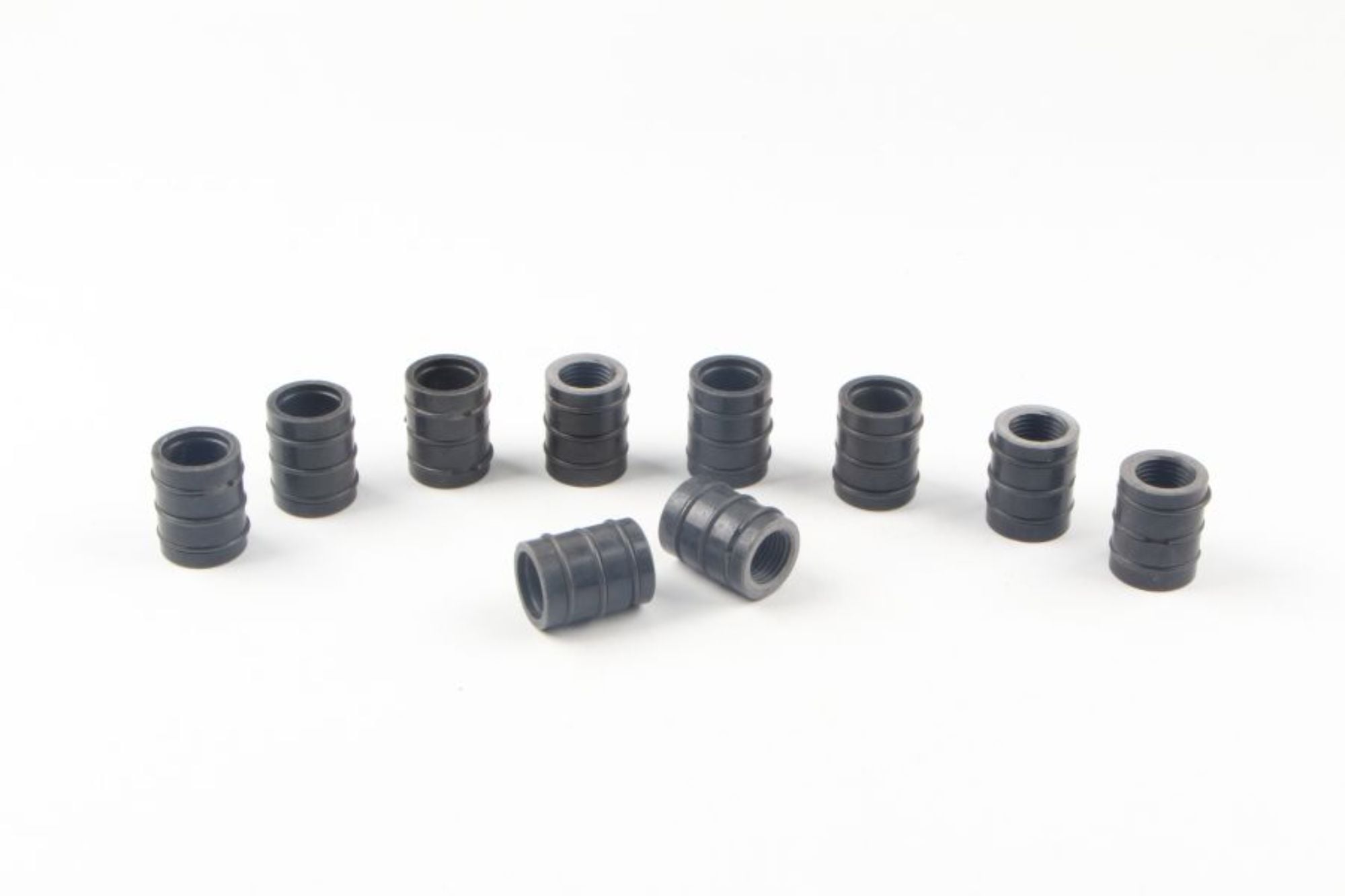

| C | Gas Diffuser | 54A | ||

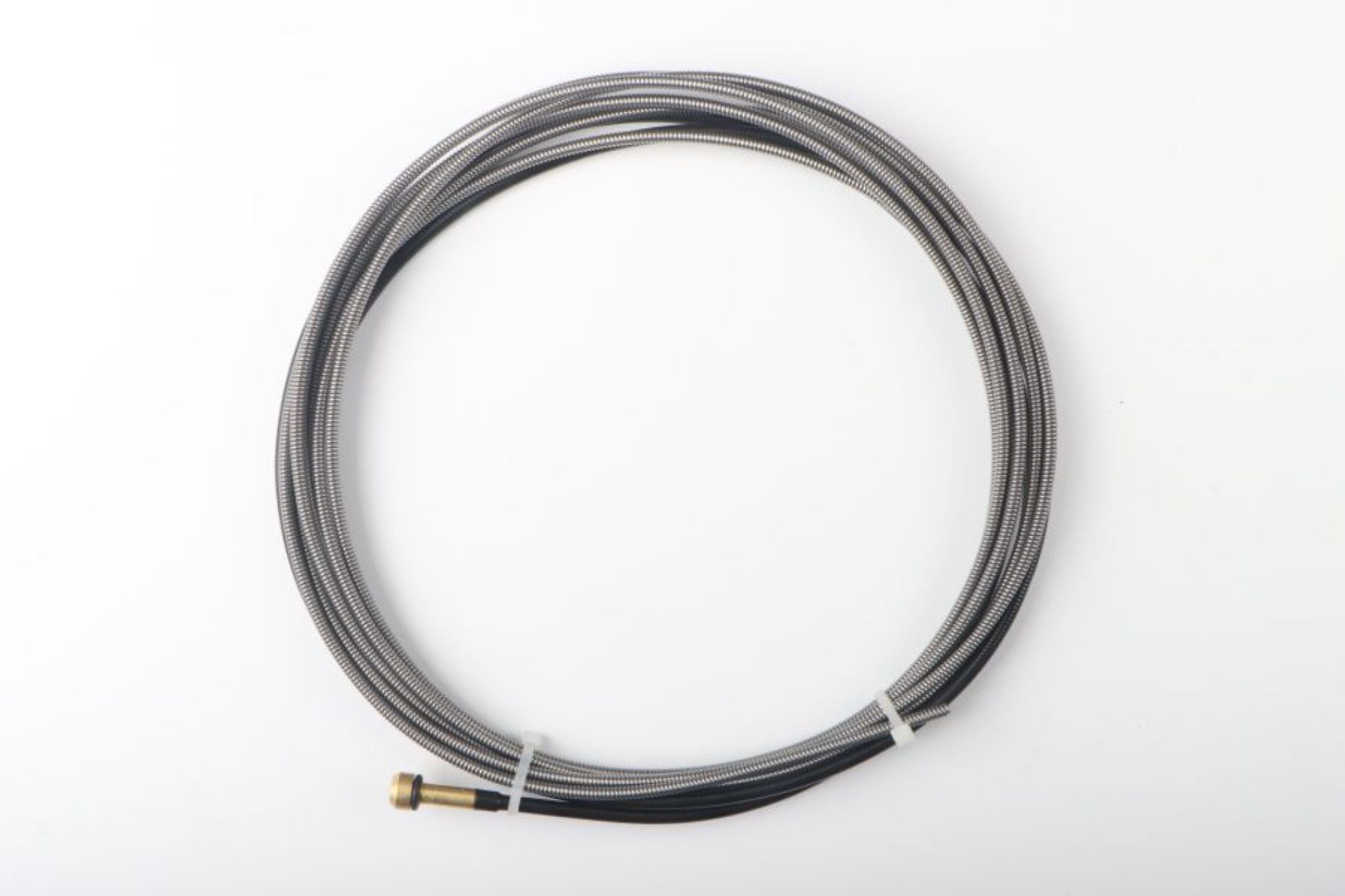

| D | Liner for .035”-.045”(0.9-1.2mm) 15FT(4.5m) | 44-3545-15 | ||
| Liner for .035”-.045”(0.9-1.2mm) 25FT(7.6m) | 44-3545-25 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | 63J-45 | ||
| Gun Tube 60° | 63J-60 | |||
| 2 | Front Cable Assembly | 102 | ||
| 3 | Front Handle | 83RC | ||
| 4 | Switch | 94RR | ||
| 5 | Cable Ball Joint & Support Spring Small | 400.1010S | ||
| 6 | Cable Assembly | TW300 | ||
| 7 | Rear Strain Relief Spring | 235RSSR | ||
| 8 | Rear Case (Direct Plug) | R6RC | ||
| 9 | Control Wire (Tweco/Miller) | MAK-354 | ||
| 9-1 | Control Wire (Lincoln) | LAK-354 | ||
| 10 | Tweco Central Connector | 350-174H | ||
| 11 | Miller Central Connector | 350-174MH | ||
| 12 | Lincoln Central Connector | 350-174LH | ||
| 12-1 | Gas Tube | LKGAS | ||
| 13 | Euro Central Connector | 174EX-1 | ||
| 13-1 | Cable Ball Joint & Support Spring Big | 400.1010B | ||
| 13-2 | Euro Rear Handle | 501.2248 | ||
| 13-3 | Euro Nut | 174X-2 | ||
| 13-4 | Euro Body Assembly | 174EX-1 | ||
| 13-5 | Euro Conduit Cap | 174EX-1C | ||
| Tweco 3# mig welding CO2 torch 300A and welding consumables |
| Tweco 3# mig welding CO2 torch 300A and welding consumables packing: |
1pc packing in small box, then 5pc packing one carton.
135pc packing one pallet.
