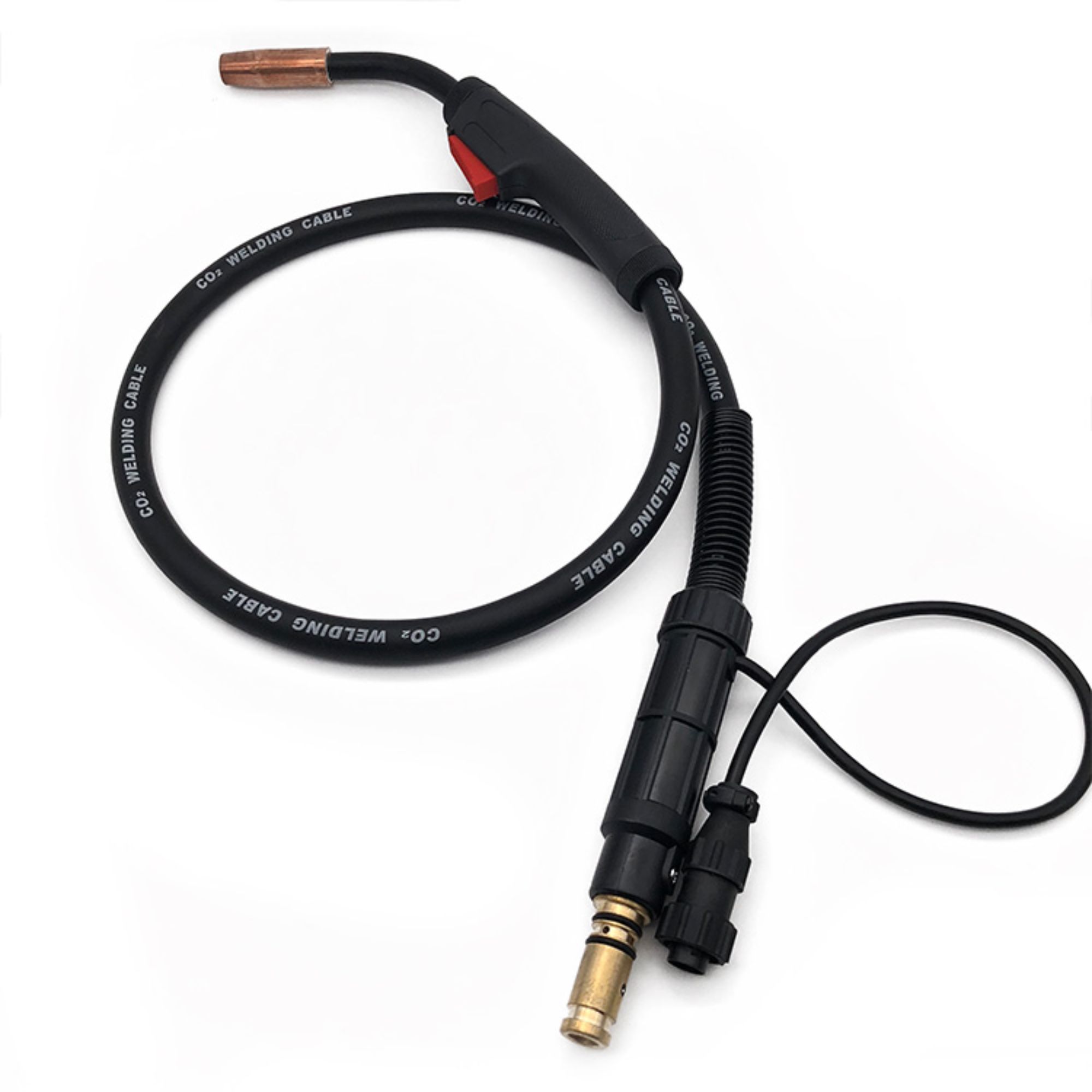

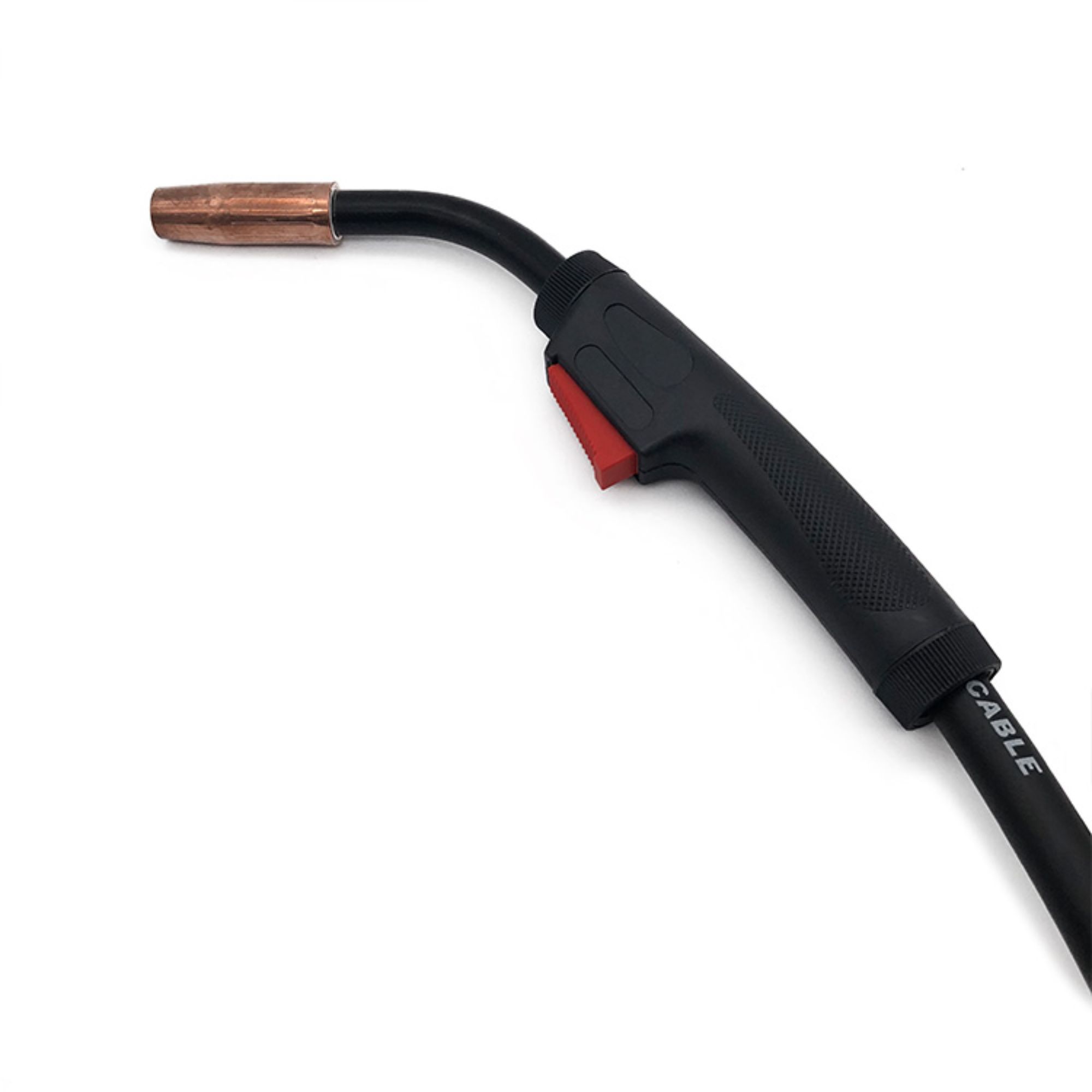

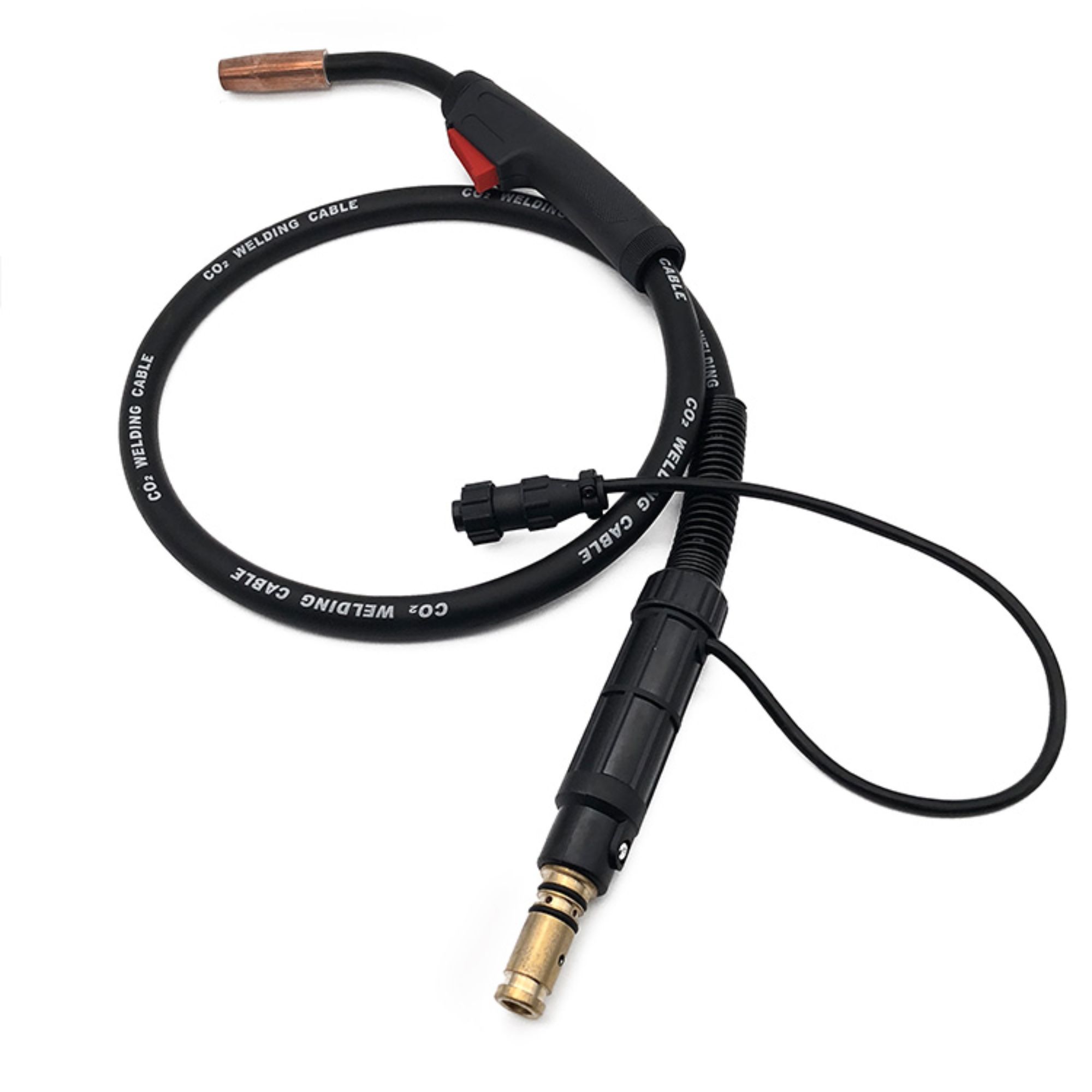

| Tweco 1# 180A mig CO2 welding torch and welding cosnuambels |
| Technical Data | Rating: 180A CO2/120A Mixed Gases | |||
| Duty Cycle: 60% | ||||
| Wire Size: .025”-.045”(0.6-1.2mm) | ||||
| Type | 10ft(3.0m) | 12ft(3.5m) | 15ft(4.5m) | |
| TW1 MIG Gun Tweco Connector | TW1-10T | TW1-12T | TW1-15T | |
| TW1 MIG Gun Miller Connector | TW1-10M | TW1-12M | TW1-15M | |
| TW1 MIG Gun Lincoln Connector | TW1-10L | TW1-12L | TW1-15L | |
| TW1 MIG Gun Euro Connector | TW1-10E | TW1-12E | TW1-15E | |
| No. | Description | Order | ||
| A | Nozzle 3/8” 9.5mm | 21-37 | ||
| Nozzle 1/2”12.7mm | 21-50 | |||
| Nozzle 5/8” 15.9mm | 21-62 | |||
| B | Contact Tip .023” 0.6mm | 11-23 | ||
| Contact Tip .030” 0.8mm | 11-30 | |||
| Contact Tip .035” 0.9mm | 11-35 | |||
| Contact Tip .040” 1.0mm | 11-40 | |||
| Contact Tip .045” 1.2mm | 11-45 | |||
| Contact Tip Heavy Duty .030” 0.8mm | 11H-30 | |||
| Contact Tip Heavy Duty .035” 0.9mm | 11H-35 | |||
| Contact Tip Heavy Duty .040” 1.0mm | 11H-40 | |||
| Contact Tip Heavy Duty .045” 1.2mm | 11H-45 | |||
| Contact Tip Tapered .023” 0.6mm | 11T-23 | |||
| Contact Tip Tapered .030” 0.8mm | 11T-30 | |||
| Contact Tip Tapered .035” 0.9mm | 11T-35 | |||
| Contact Tip Tapered .040” 1.0mm | 11T-40 | |||
| Contact Tip Tapered .045” 1.2mm | 11T-45 | |||
| C | Gas Diffuser | 51 | ||
| Gas Diffuser | 51-23 | |||
| D | Liner for .030”-.035” (0.8-0.9mm) 10ft (3.0m) | 42-3035-10 | ||
| Liner for .030”-.035” (0.8-0.9mm) 12ft (3.6m) | 42-3035-12 | |||
| Liner for .030”-.035” (0.8-0.9mm) 15ft (4.6m) | 42-3035-15 | |||
| No. | Description | Order | ||
| 1 | Gun Tube 45° | 61-45 | ||
| Gun Tube 60° | 61-60 | |||
| 2 | Front Handle | 180.D078 | ||
| 3 | Switch | 185.0031S | ||
| 4 | Cable Ball Joint & Support Spring Middle | 400.1010M | ||
| 5 | Cable Assembly | TW180 | ||
| 6 | Rear Strain Relief Spring | 235RSSR | ||
| 7 | Rear Case (Direct Plug) | R6RC | ||
| 8 | Control Wire (Tweco/Miller) | MAK-354 | ||
| 8-1 | Control Wire (Lincoln) | LAK-354 | ||

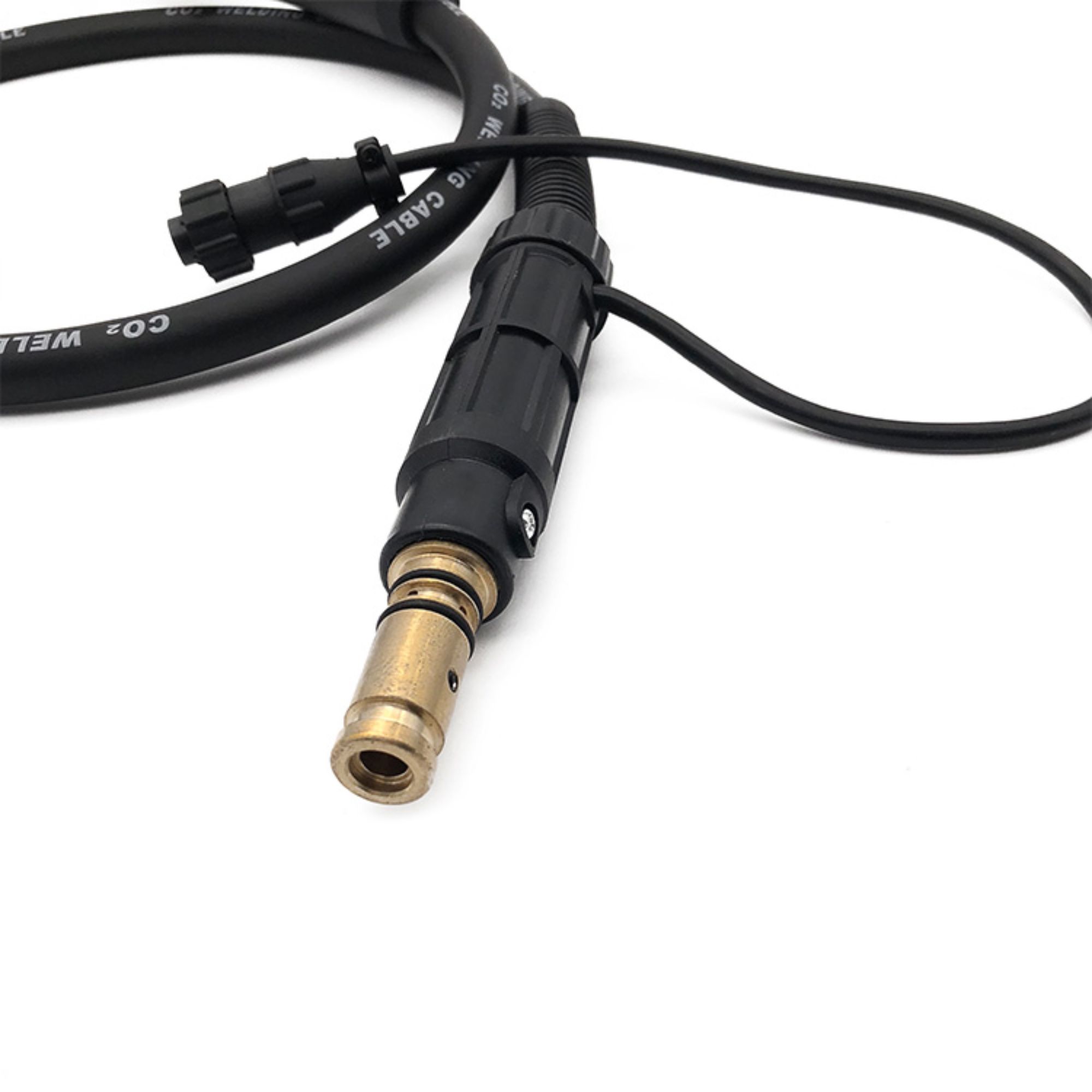

| 9 | Tweco Central Connector | 350-174H | ||
| 10 | Miller Central Connector | 350-174MH | ||
| 11 | Lincoln Central Connector | 350-174LH | ||
| 11-1 | Gas Tube | LKGAS | ||
| 12 | Euro Central Connector | 174EX-1 | ||
| 12-1 | Cable Ball Joint & Support Spring Big | 400.1010B | ||
| 12-2 | Euro Rear Handle | 501.2248 | ||
| 12-3 | Euro Nut | 174X-2 | ||
| 12-4 | Euro Body Assembly | 174EX-1 | ||
| 12-5 | Euro Conduit Cap | 174EX-1C |
| Tweco 1# 180A mig CO2 welding torch and cosnuambels packing |
1pc packing in small box, then 5pc packing one carton.
135pc packing one pallet.
