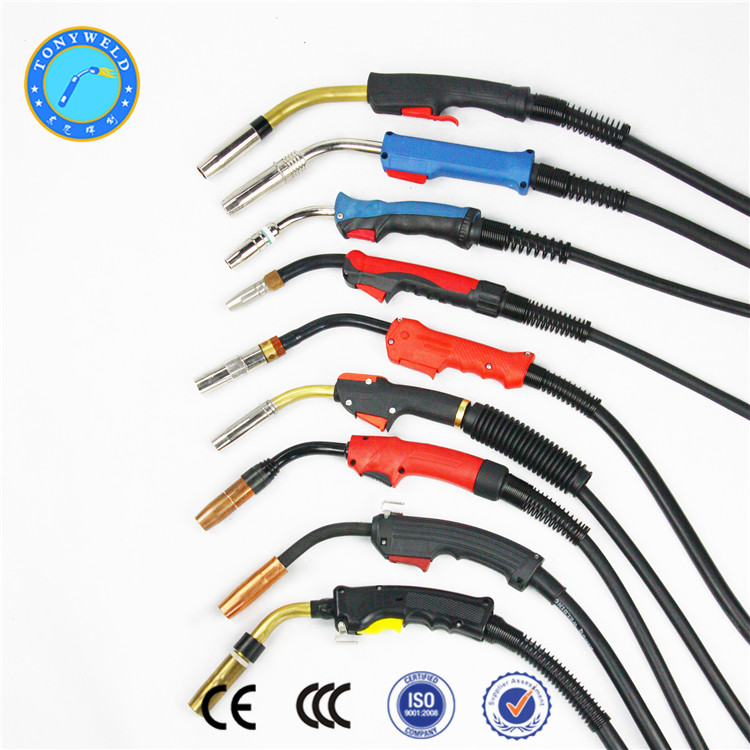

1.MIG guns and Parts,such as Binzle , Tweco , Bnd ,Fronius,Miller,OTC,Tregaskiss.
2.TIG welding guns and parts, such as torch head, back cap, cup gasket, collet, collet body, gas lens body, cable fittings, alumina nozzle, power cable adapters, switch, torch body etc. ,
3.Plasma guns and accessories such as P80,PT-31,AG60,Hypertherm,Thermal,Trafimet,KJELLBER,CEBORA .
4.Other welding accessories: welding helmet, tungsten electrode,earth clamp.
wp18 wp17 wp26 tig weld torch water cooled

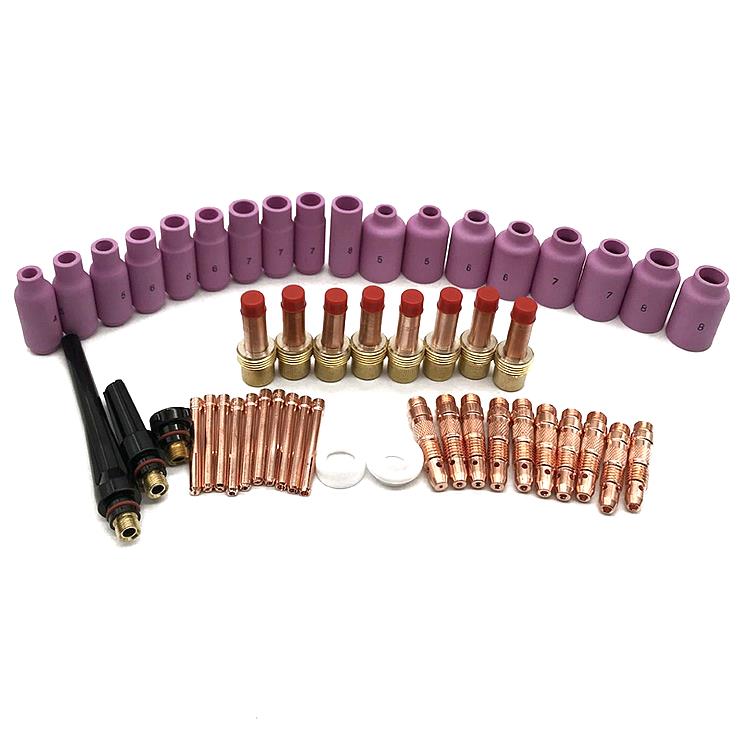

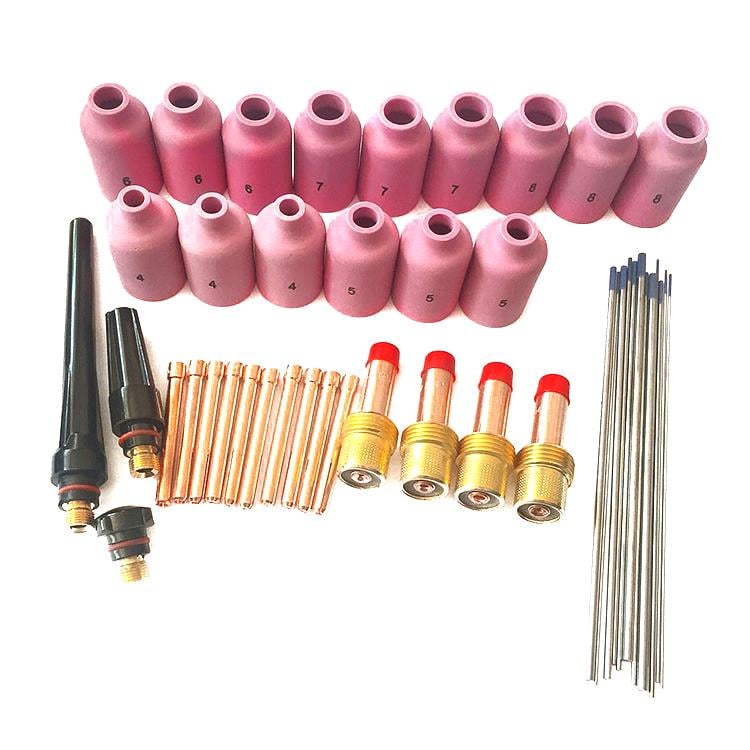

WP26 TIG Welding Torch WP26 Tig torch accessories ARC air cooled tig gun Over View: |
WP/SR-26 TORCH-ERUO
Air-Cooled Tig Welding Torch
Rating: 250A DC/160A AC @ 60% Duty Cycle
.020″-1/8″/0.5-3.2mm Electrodes
No. Part Number Description
WP-26-1-4M WP-26 Torch (Gas and Power Whole) 4m
WP-26-1-8M WP-26 Torch (Gas and Power Whole) 8m
WP-26-2-4M WP-26 Torch (Gas and Power Separate) 4m
WP-26-2-8M WP-26 Torch (Gas and Power Separate) 8m
wp26 tig weld torch air cooled
wp26 welding torch tig gun tig welding gun spare parts back cap

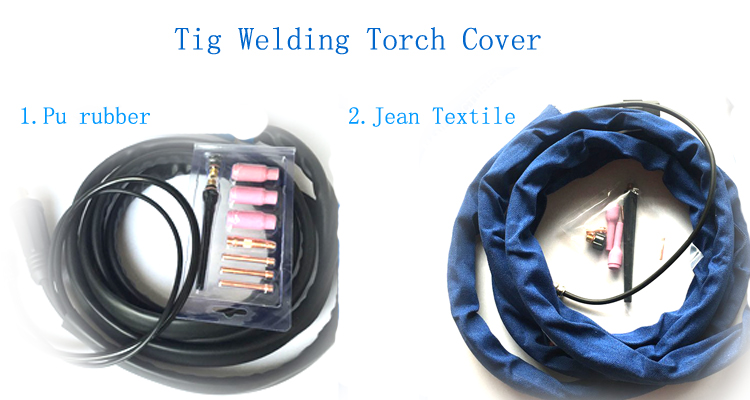

WP26 TIG Welding Torch WP26 Tig torch accessories ARC air cooled tig gun Cover: |

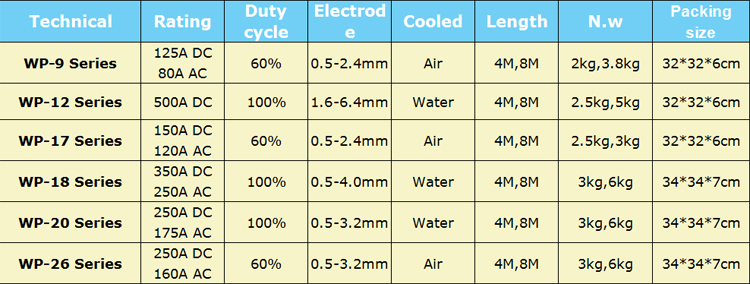

Water cooled torch tig wp26 weldcraft tig torch Technical Data: |
Description of goods |
Standard Number |
Description of goods |
Standard number |
WP-26-1-(4M) WP26 torch(Gas and cable whole)
WP-26-1-(8M) WP26 torch(Gas and cable whole)
WP-26-2-(4M) WP26 torch(Gas and cable separate)
WP-26-2-(8M) WP26 torch(Gas and cable separate)
|
|
|
|
|
Torch body |
WP-26 |
Long back cap |
57Y02 |
Torch body flexible |
WP-26F |
Milldle back cap |
57Y03 |
Torch body valve |
WP-26V |
Short back cap |
57Y04 |
Torch body flexible and valve |
WP-26FV |
Gasket |
18CG |
Torch body pencil |
WP-26P |
Stubby Gasket |
18CG-20 |
Collet |
10N21,0.5mm |
Gas lens insulator |
54N01 |
Collet |
10N22,1.0mm |
Gas lens insulator |
54N63 |
Collet |
10N23,1.6mm |
|
|
Collet |
10N23m,2.0mm |
Ceramic Nozzle |
10N50,6MM |
Collet |
10N24,2.4mm |
Ceramic Nozzle |
10N49,8MM |
Collet |
10N25,3.2mm |
Ceramic Nozzle |
10N48,10MM |
Stubby collet |
10N21S,0.5mm |
Ceramic Nozzle |
10N47,11MM |
Stubby collet |
10N22S,1.0mm |
Ceramic Nozzle |
10N46,13MM |
Stubby collet |
10N23S,1.6mm |
Ceramic Nozzle |
10N45,16MM |
Stubby collet |
1023MS,2.0mm |
Ceramic Nozzle |
45N44,19MM |
Stubby collet |
10N24S,2.4mm |
Long ceramic nozzle |
10N49L,8MM |
Stubby collet |
10N25S,3.2mm |
Long ceramic nozzle |
10N48L,10MM |
Collet body |
10N29,0.5mm |
Long ceramic nozzle |
10N47L,11MM |
Collet body |
10N30,1.0mm |
Short ceramic nozzle |
13N08,6MM |
Collet body |
10N31,1.6mm |
Short ceramic nozzle |
1N09,8MM |
Collet body |
10N32,2.4mm |
Short ceramic nozzle |
13N10,10MM |
Collet body |
10N28,3.2mm |
Short ceramic nozzle |
13N11,11MM |
stubby collet body |
17CB20,3.2mm |
Short ceramic nozzle |
13N12,13MM |
Small gas lens |
45V29,0.5mm |
Ceramic nozzle |
54N18,6MM |
Small gas lens |
45V24,1.0MM |
Ceramic nozzle |
54N17,8MM |
Small gas lens |
45v25,1.6mm |
Ceramic nozzle |
54N16,10MM |
Small gas lens |
45V26,2.4mm |
Ceramic nozzle |
54N15,10MM |
Small gas lens |
45V27,3.2mm |
Ceramic nozzle |
54N14,13MM |
Large long gas lens |
45V116,1.6MM |
Ceramic nozzle |
54N19,18MM |
Large long gas lens |
45V64,2.4MM |
Lava nozzle |
54N17L,8MM |
Large long gas lens |
995795,2.4MM |
Lava nozzle |
54N16L,10MM |
Large long gas lens |
45V63,3.2MM |
Lave nozzle |
54N15L,11MM |
Switch |
|
Extra ceramic nozzle |
57N75,10MM |
Handle |
|
Extra ceramic nozzle |
57N74,13MM |
Valve stem |
VS-2 |
Extra ceramic nozzle |
53N88,16MM |
|
|
Extra ceramic nozzle |
53N87,19MM |
Related Item of torch tig wp17 |
Q1:Can I get a free samples to check the quality of torch tig wp26?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge of torch tig wp26?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products of torch tig wp26 ?
A:Yes,we need your certificate of authorization.
Q4:Welding torch payment terms of torch tig wp26:
T/T,L/C,Western union all support
Q5:Welding torch delivery time of torch tig wp26:
sample order 2 working days, 500pcs order 10 working days.
Q6:Min order torch tig wp26:
1pc torch tig wp26
The WP26 TIG Welding Torch coming from Tonyweld is a high-grade device for specialist welders.
This ARC air cooled tig gun is the ideal option for accomplishing accurate welding outcomes along with very little warm distortion. The WP26 TIG Welding Torch is an exceptional high top premium item that offers exceptional efficiency, resilience, and dependability. This torch is developed towards deal with one of the absolute most prominent TIG welders, creating it the ideal enhancement for your welding device compilation.
One concerning the possibly very most certainly functions is its own air-cooled style. This implies the torch utilizes air towards cool-down the very best components that fume throughout welding.
Consequently, the torch remains awesome towards the style and enables much a lot longer periods of welding without needing to closed the torch to awesome it down. The design is air-cooled assists towards guarantee that the WP26 TIG Welding Torch is light-weight and easy towards use, also for much a lot longer durations of the moment.
Provides versatility is outstanding. It functions a move is flexible can be turned 360 levels, creating it simple towards accessibility hard-to-reach locations. Individuals can likewise change the dimension of the torch utilizing the consisted of expansion or even decreasing it as required. These flexible functions create the WP26 TIG Welding Torch an option is perfect welders that require flexibility and versatility within their function.
Another include is outstanding is its own simplicity of utilization. The torch is developed through possessing a hold is comfy enables simple and easy procedure and reduces palm tiredness. It likewise includes a fingertip command in the torch manage, which materials accuracy command over the welding procedure. The command body allows you towards change the current and fuel stream, creating it simple to obtain the welding is precise you will such as.
The Tonyweld WP26 TIG Welding Torch is a high-quality device that is ideal for welders that need the very best efficiency and flexibility in their devices. Along with its own air-cooled style, flexible functions, and simplicity of utilization, this torch is an essential for any type of specialist welder. Therefore why hang around? Begin welding along with self-peace of mind and accuracy today along with the WP26 TIG Welding Torch through Tonyweld.
