1.MIG guns and Parts,such as Binzle , Tweco , Bnd ,Fronius,Miller,OTC,Tregaskiss.
2.TIG welding guns and parts, such as torch head, back cap, cup gasket, collet, collet body, gas lens body, cable fittings, alumina nozzle, power cable adapters, switch, torch body etc. ,
3.Plasma guns and accessories such as P80,PT-31,AG60,Hypertherm,Thermal,Trafimet,KJELLBER,CEBORA .
4.Other welding accessories: welding helmet, tungsten electrode,earth clamp.

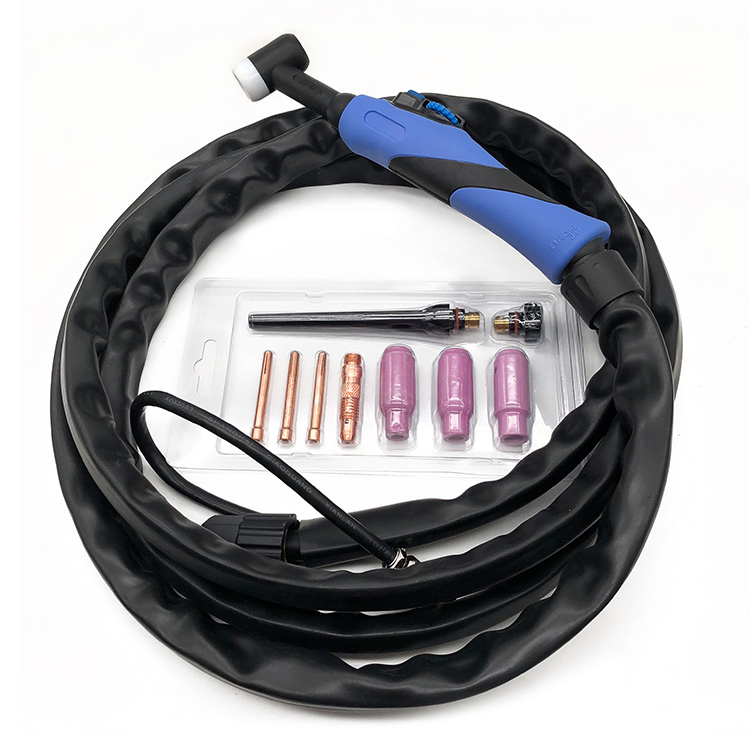

wp20 tig weld torch water cooled
WP20 TIG Welding Torch WP20 Tig torch accessories water cooled tig gun Over View: |
WP/SR-20 TORCH-ERUO
water-Cooled Tig Welding Torch
Rating: 250A DC/175A AC @ 100% Duty Cycle
.020″-1/8″/0.5-3.2mm Electrodes
No. Part Number Description
WP-20-4M WP-20Torch 4m
WP-20-8M WP-20 Torch 8m
wp20 tig weld torch water cooled
wp20 welding torch tig gun tig welding gun spare parts back cap
WP20 TIG Welding Torch WP9 Tig torch accessories water cooled tig gun Cover: |
Water cooled torch tig wp20 weldcraft tig torch Technical Data: |
Description of goods |
Standard Number |
Description of goods |
Standard number |
WP-20-(4M) WP20 torch
WP-20-(8M) WP20 torch
|
|
|
|
|

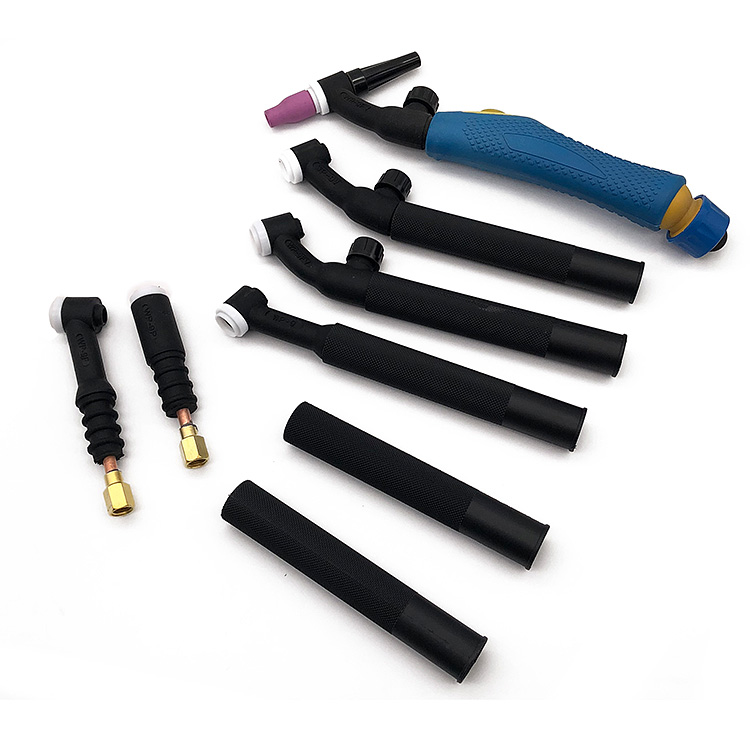

Torch body |
WP-20 |
Long back cap |
41V24 |
Torch body flexible |
WP-20F |
Milldle back cap |
41V35 |
Torch body valve |
WP-20V |
Short back cap |
41V33 |
Torch body flexible and valve |
WP-20FV |
Gasket |
598882 |
Torch body pencil |
WP-20P |
Gas lens insulator |
54N63-20 |
Collet |
13N20,0.5mm |
|
|
Collet |
13N21,1.0mm |
|
|
Collet |
13N22,1.6mm |
|
|
Collet |
13N22m,2.0mm |

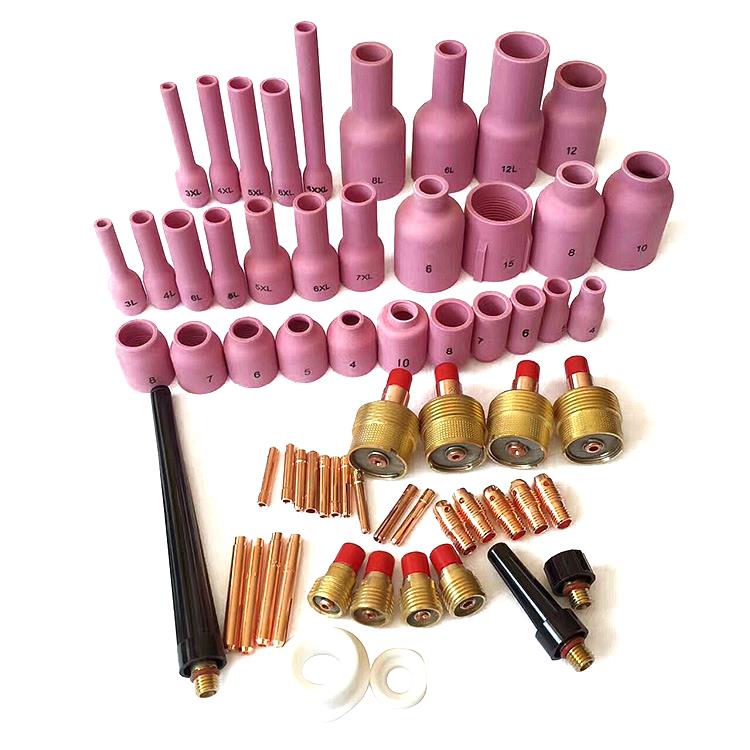

Ceramic Nozzle |
10N50,6MM |
Collet |
13N23,2.4mm |
Ceramic Nozzle |
10N49,8MM |
|
|
Ceramic Nozzle |
10N48,10MM |
Stubby collet |
13N20L,0.5mm |
Ceramic Nozzle |
10N47,11MM |
Stubby collet |
13N22L,1.0mm |
Ceramic Nozzle |
10N46,13MM |
Stubby collet |
13N23L,1.6mm |
Ceramic Nozzle |
10N45,16MM |
|
|
Ceramic Nozzle |
45N44,19MM |
|
|
Long ceramic nozzle |
10N49L,8MM |
|
|
Long ceramic nozzle |
10N48L,10MM |
Collet body |
13N25,0.5mm |
Long ceramic nozzle |
10N47L,11MM |
Collet body |
13N26,1.0mm |
Short ceramic nozzle |
13N08,6MM |
Collet body |
13N27,1.6mm |
Short ceramic nozzle |
13N09,8MM |
Collet body |
13N27M,2.4mm |
Short ceramic nozzle |
13N10,10MM |
Collet body |
13N28,3.2mm |
Short ceramic nozzle |
13N11,11MM |
stubby collet body |
17CB20,3.2mm |
Short ceramic nozzle |
13N12,13MM |
Small gas lens |
45V41,0.5mm |
Ceramic nozzle |
53N58,6MM |
Small gas lens |
45V42,1.0MM |
Ceramic nozzle |
53N59,8MM |
Small gas lens |
45v43,1.6mm |
Ceramic nozzle |
53N60,10MM |
Small gas lens |
45V43M,2.0mm |
Ceramic nozzle |
53N61,11MM |
Small gas lens |
45V44,2.4mm |
Ceramic nozzle |
53N61S,13MM |
Large long gas lens |
45V0204S |
Lava nozzle |
53N77,19MM |
Large long gas lens |
45V116S,1.6MM |
Lava nozzle |
53N75,10MM |
Large long gas lens |
45V64S,2.4MM |
Lava nozzle |
53N74,13MM |
|
|
Lave nozzle |
53N88,16MM |
Switch |
|
Long ceramic nozzle |
796F70,5MM |
Handle |
|
Long ceramic nozzle |
796F71,6MM
|
Valve stem |
VS-2 |
Long ceramic nozzle |
796F72,8MM
|
|
|
Long ceramic nozzle |
796F73,10MM
|
|
|
Long ceramic nozzle |
796F74,5MM |
|
|
Long ceramic nozzle |
796F75,6MM |
|
|
Long ceramic nozzle |
796F76,8MM |
|
|
Long ceramic nozzle |
796F77,10MM |
Related Item of torch tig wp9 |
Brand: Tonyweld
Tonyweld's WP20 TIG Welding Torch WP9 Tig torch accessories water cooled tig gun this is certainly tig the solution that is perfect high-quality TIG welding. This system is perfect for professional welders who require superior operation and performance this is certainly reliable many different welding applications, including not limited to: automotive, industrial, aerospace, and marine. Boasts ergonomics which are superior precision in design.
Created for capability of good usage, enabling welding that is extensive in just weakness this is certainly minimal. The torch handle is done with non-slip properties, ensuring a hold is protected whenever damp. Additionally, the torch thoughts are made from a collar this is certainly rotating control that is complete the angle is welding. Features construction is durable, ensuring performance this is certainly long-lasting possibly the most demanding welding applications.
The torch thoughts are manufactured far from top-notch copper alloys, that provide exceptional temperature and conductivity resistance, minimizing the possibility of damage or failure during use. The torch body can also be created from robust materials, such as steel this is certainly stainless opposition that is ensuring corrosion and wear. The WP9 Tig torch accessories included with the item are formulated to provide you with compatibility is seamless the WP20 TIG Welding Torch. A number is roofed by these accessories of collets, nozzles, and fuel contacts, which makes it simple for accurate control when it comes to arc during welding operations.
These top-quality add-ons are manufactured from durable materials that provide excellent heat opposition and conductivity, ensuring performance is optimal every welding project. Developed to effortlessly connect with systems which are water-cooled. This feature this is certainly particular efficient cooling related to torch head during extended welding sessions, preventing temperature harm and prolonging living of the torch. Tonyweld's WP20 TIG Welding Torch WP9 Tig torch accessories water cooled tig gun this is certainly tig an item that is perfect welding enthusiasts who appreciate exceptional quality and gratification.
