| Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 |
Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Our company produces :
1.MIG/MAG,CO2 welding torch and welding parts such as nozzle,contact tip,swan neck,diffuser etc.
2.Tig welding torches and welding accessories such as collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,torch body etc.
3.air plasma cutting guns such as electrodes,tips,shields,swirl ring etc.
4.cable joint ,earth clamp,cutting nozzle.
5.welding helmet,electorde holder
6.tungsten electrode

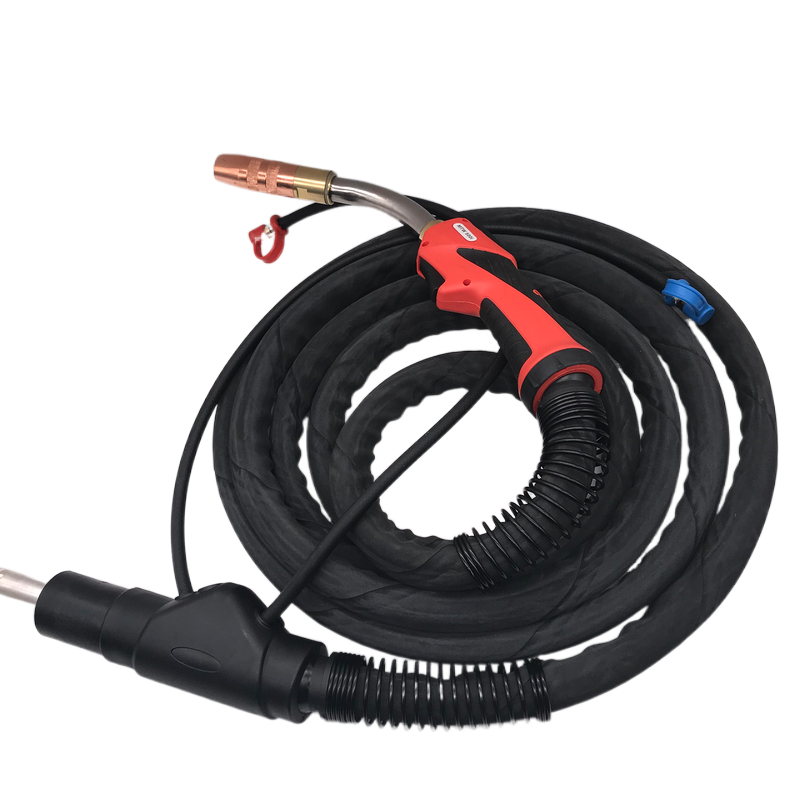

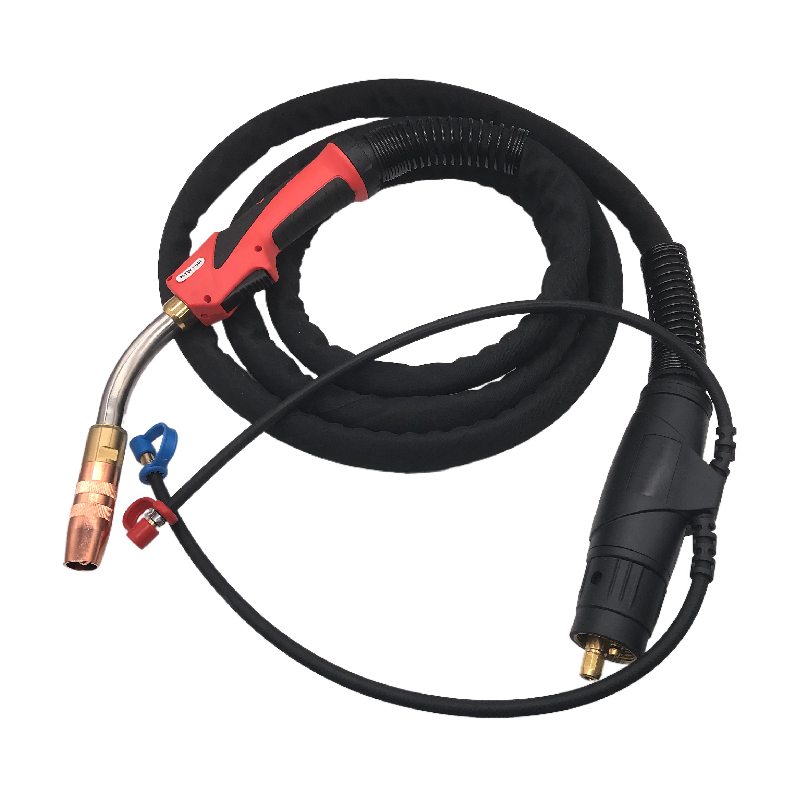

| 1. Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 View |
.
| 2. Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 Technical Data: |
| Model | Fronius MTW500I Complete torch-3.5Meters Fronis system connector |
Fronius MTW500i Complete torch -4.5Meters Fronius system connector |
Fronius MTW 500i 3.5M Comlete torch -3.5Meters Euro connector |
| Item No. | 4.035.957 | 4.035.960 | 4.035.957E |
| Welding Type | MIG/MAG CO2 torch | ||
| Rating | 500A CO2/Mixed Gases |
||
| Duty Cycle | 100% | ||
| Wire Size | 1.0-1.6mm | ||
| Cooled Type | Water Cooled | ||
| Connector Choosend | Euro,fronius system connector. | ||
| Handle Choosen | Fronius | ||
| Net Weight | 3KG | 3.5KG | 4KG |
| Gross Weight | 3.2KG | 3.8KG | 4.2KG |
| Packing Size | 37*35*7CM |
||
| 3. Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 Item No.: |
| OEM # | Description |
| 4.035.957 | MTW 500i Water coooled torch Fronius systerm connector(FSC) 3.5M |
| 4.035.960 | MTW 500i Water coooled torch Fronius systerm connector(FSC) 4.5M |
| 4.035.957E | MTW 500i Water coooled torch Euro connector |
| 4.035.960E | MTW 500i Water coooled torch Euro connector |
| 42.0001.4080 | Nozzleφ13.63mm |
| 42.0001.4497 | Nozzleφ13.63mm AI |
| 42.0001.4051 | Nozzleφ15.63mm |
| 42.0001.4496 | Nozzleφ15.63mm AI |
| 42.0001.4050 | Nozzleφ17.63mm |
| 42.0001.4494 | Nozzleφ17.63mm AI |
| 42.0001.4054 | Nozzleφ21.63mm |

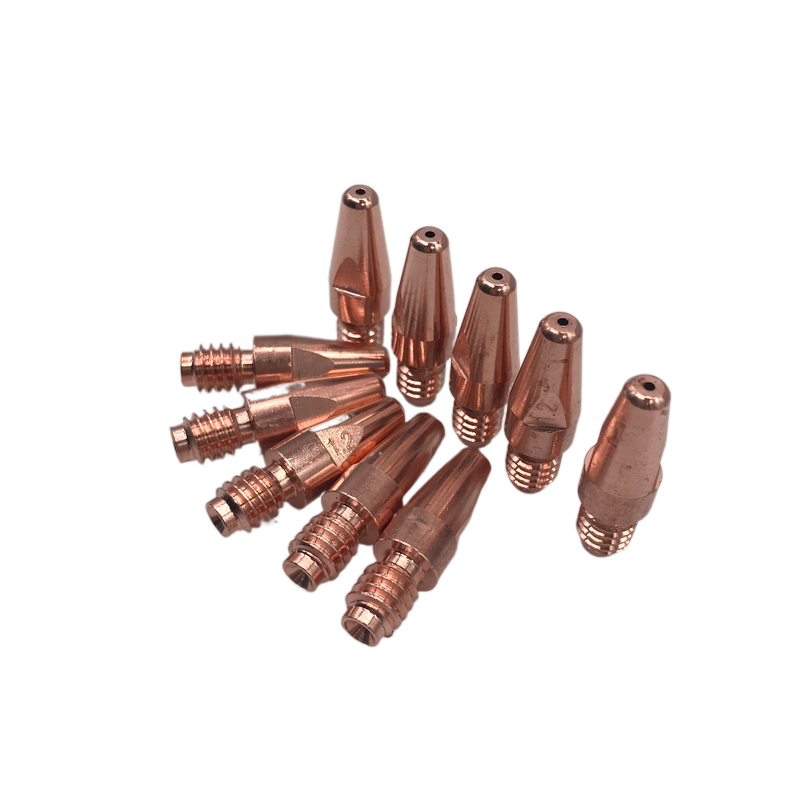

| 42.0001.6464 | Contact tip M8X1.5*32*0.8mm,E-cu |
| 42.0001.6465 | Contact tip M8X1.5*32*0.9mm,E-cu |
| 42.0001.6466 | Contact tip M8X1.5*32*1.0mm,E-cu |
| 42.0001.6467 | Contact tip M8X1.5*32*1.2mm,E-cu |
| 42.0001.6468 | Contact tip M8X1.5*32*1.4mm,E-cu |
| 42.0001.6469 | Contact tip M8X1.5*32*1.6mm,E-cu |
| 42.0001.6470 | Contact tip M8X1.5*32*1.8mm,E-cu |
| 42.0001.6471 | Contact tip M8X1.5*32*2.0mm,E-cu |
| 42.0001.6472 | Contact tip M8X1.5*32*2.4mm,E-cu |
| 42.0001.4642 | Contact tip M8X1.5*32*2.8mm,E-cu |
| 42.0001.4750 | Contact tip M8X1.5*32*1.0mm,E-cu AL |
| 42.0001.4751 | Contact tip M8X1.5*32*1.2mm,E-cu AL |
| 42.0001.4752 | Contact tip M8X1.5*32*1.6mm,E-cu AL |
| 42.0100.0854 | Gas diffuser |
| 42.0001.4037 | Tip Holder |
| 42.0100.1329 | Insulator |
| 44.035.3262 | Swan Neck |
| 42.0405.0660 | Handle |
| 43.0002.0386 | Switch |
| 40.0002.0043 | Steel liner,For wireφ1.4-1.6,5M |
| 40.0002.0044 | Steel liner,For wireφ2.0,5M |

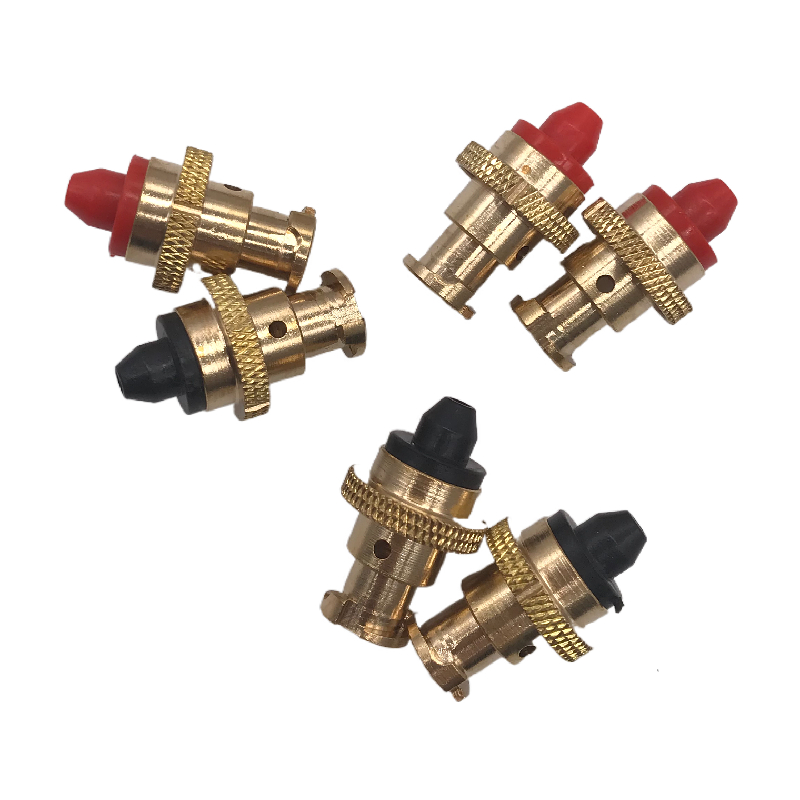

| 44.0350.3320 | MTG/MTW Liner clamping 1.4-1.6 black Nut |
| 44.0350.3321 | MTG/MTW Liner Clamping 2.0mm Green Nut |
| 4. Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960Packing Size: |
. 1 piece Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 packed in a plastic bag
. then packed in a box(box size 37*35*7CM)
. 5 pieces Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 packed in a carton(carton size 38*36*35CM)
. 135 pieces Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960 packed in a pallet(pallet size 110*110*120CM)
| 5.Family Welding Torch: |
. Mag Mig wleding torch Tonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960
. Mag Mig wleding torchTonyweld water colled Fronius MTW 500i welding torch 4.035.957 4.035.960
. Mag Mig wleding torch fronius AW5000
| 6.Our Services: |
. supply the qualified products
. samples are available
. trial order are available
. processing with customer's samples
| 7.Factory View: |
We TONYWELD CO are a professional manufacture in welding torch and cutting torch.
We supply the following products:
1.MIG MAG welding torch and welding accessories
2.TIG welding torch and welding accessories
3.Air plasma cutting torch and cutting accessoires
4.Our products with CE and CCC certificate
5.We have 12 years experience to export many countries.
| 8.Welding torch FAQ: |
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Q4:Welding torch payment terms:
T/T,L/C,Western union all support
Q5:Welding torch delivery time:
sample order 2 working days, 500pcs order 10 working days.
Q6:Min order:
1pc
TONYWELD
Presenting the sprinkle cooled down Fronius MTW 500i welding lantern. This effective tool is ideal for every one of your welding requirements. The lantern is developed along with top quality products that guarantee dependable constant efficiency along with each utilize.
Understood for creating product and services which are high-quality are resilient lasting. This welding lantern is no exemption. It is available in 2 designs, the 4.035.957 the 4.035.960, towards suit your specific welding requirements.
The include is essential of welding lantern is its own water-cooled style. This include guarantees that the lantern performs get too hot throughout utilize not, enabling you towards deal with long durations without disruption. This implies you can easily obtain your welding performed quicker much a lot extra effectively, conserving opportunity cash.
Can easily be light-weight simple towards manage, making it ideal for each welders that are specialist DIY lovers as well. It was produced end up being comfy to prevent, decreasing fatigue allowing you profit prolonged durations without experiencing pain.
Functions Fronius MTW innovation, which is understood for its own welding is exceptional high top premium. This implies that you obtain a tidy, accurate weld every single opportunity, creating your function appearance much a lot extra brightened specialist. This innovation likewise assists towards attenuate spatter, creating your clean-up simpler.
Among one of the absolute most helpful factors for possessing this welding lantern is its own flexibility. It is created towards deal with a selection of various products, consisting of steel, steel, much a lot extra, light weight aluminum. This will create it ideal for a selection of various welding jobs.
The Tonyweld water-cooled Fronius MTW 500i welding lantern is an outstanding option for anybody searching for a dependable, top quality welding lantern. Along with its own resilient building, water-cooled style, accuracy welding abilities, it is an outstanding financial assets for each specialist welders DIY lovers as well. Obtain your own today expertise the distinction on your own.
