Overview

-Plasma-cutting-torches-and-parts_03

Changzhou Tonyweld Group Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Changzhou tonyweld can produces :
1.MIG/MAG,CO2 :Binzel 14AK, 15AK,24KD,36KD,501D, Pana 180A, 200A,350A,500A, Bernard 200E,Bernard

300E Bernard 400E,Bernard 600E,Tweco 2#,Tweco 3#,Tweco 4#,Tweco 5#,Fronius AW4000,AW5000,AL3000,AL4000, Saf welding torch and gas nozzle,contact tip,contact tip holder,swan neck,gas diffuser liner etc.

2.Tig : WP12,WP9,WP17,WP18,WP26 welding torches and torch head (F/FV/V/P) , collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,long/mediu/short cap etc.

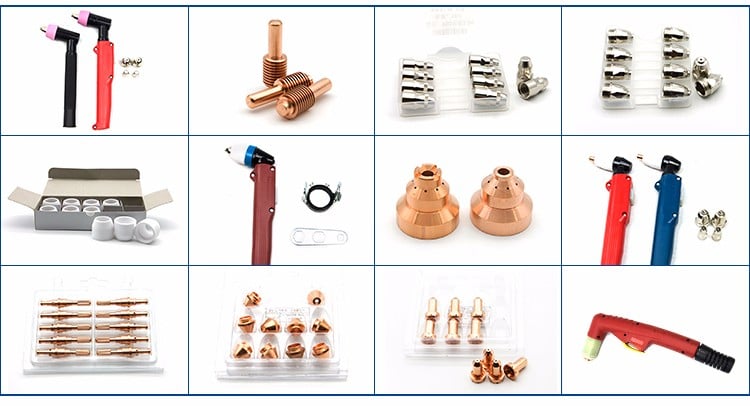

3.Air plasma cutting :P80,P160,PT31,AG60,SG55,JG60,JG100,Trafimet serise cutting torches, torch head ,nozzle,electrodes,tips,ceramic shield cap,,white wheel,swirl ring etc.
4.cable joint ,earth clamp
5.welding helmet,electorde holder
6.tungsten electrode

Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT

Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT View

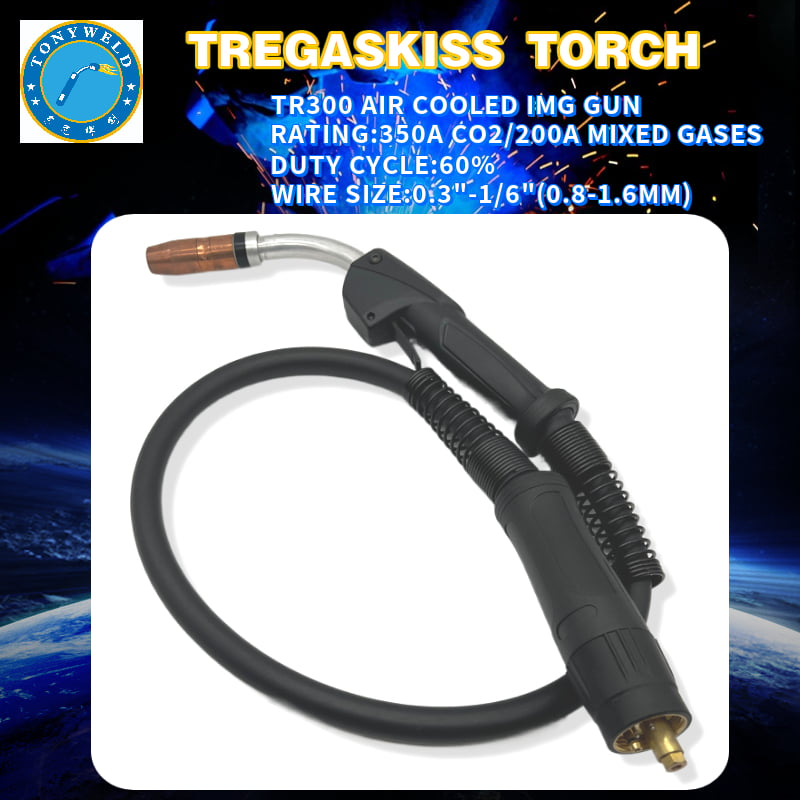

TR300 Air Cooled MIG GUN
Technical Data:	Rating: 350A CO2/200A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .030”-1/16”(0.8-1.6mm)
	Type	10ft(3.0m)	12ft(3.5m)	15ft(4.5m)
	TR300 MIG GUN Miller Connector	3010M	3012M	3015M
	TR300 MIG GUN Tweco Connector	3010T	3012T	3015T
	TR300 MIG GUN Lincoln Connector	3010L	3012L	3015L
	TR300 MIG GUN Euro Connector	3010E	3012E	3015E

No.	Description	Order

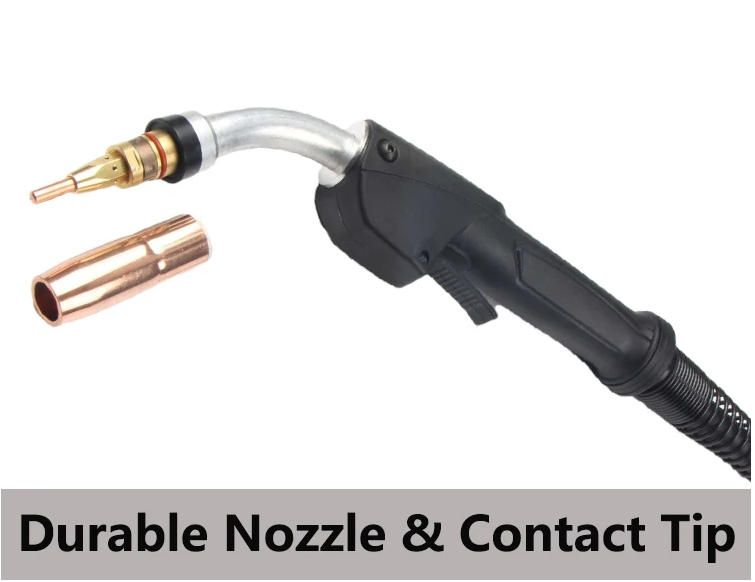

A	Nozzle 3/8″ 9.5mm Flush Copper	401-4-38
	Nozzle 1/2″ 12.7mm 1/8″ Recess Copper	401-4-50
	Nozzle 5/8” 15.9mm 1/8” Recess Copper	401-4-62
	Nozzle 3/4” 19mm 1/8″ Recess Copper	401-4-75
	Nozzle 5/8” 15.9mm 1/8” Stick Out Brass	401-8-62
	Nozzle 5/8” 15.9mm 1/4” Stick Out Copper	401-9-62
	Nozzle 1/2” 12.7mm 1/4” Stick Out Brass	401-44-50
	Nozzle 1/2” 12.7mm 1/8” Stick Out Brass	401-48-50
	Nozzle 1/2″ 12.7mm 1/8” Recess Brass	401-42-50
	Nozzle 3/8″ 9.5mm 1/16” Recess Brass	401-40-38
B	Contact Tip .230” 0.6mm	403-23
	Contact Tip .030” 0.8mm	403-30
	Contact Tip .035” 0.9mm	403-35
	Contact Tip .040” 1.0mm	403-40
	Contact Tip .045” 1.2mm	403-45
	Contact Tip .052” 1.4mm	403-52
	Contact Tip 1/16” 1.6mm	403-116
C	Gas Diffuser (1/4-20Thd)	404
D	Nozzle Retainer	402-3
E	Neck Insulator	402-11
F	Liner for .035″-.045″(0.9-1.2mm) 10FT(3.0m)	415-35-10
	Liner for .035″-.045″(0.9-1.2mm) 15FT(4.6m)	415-35-15

No.	Description	Order
1	Swan Neck 45°	305-45
	Swan Neck 60°	305-60
2	Torch Body Assembly	407

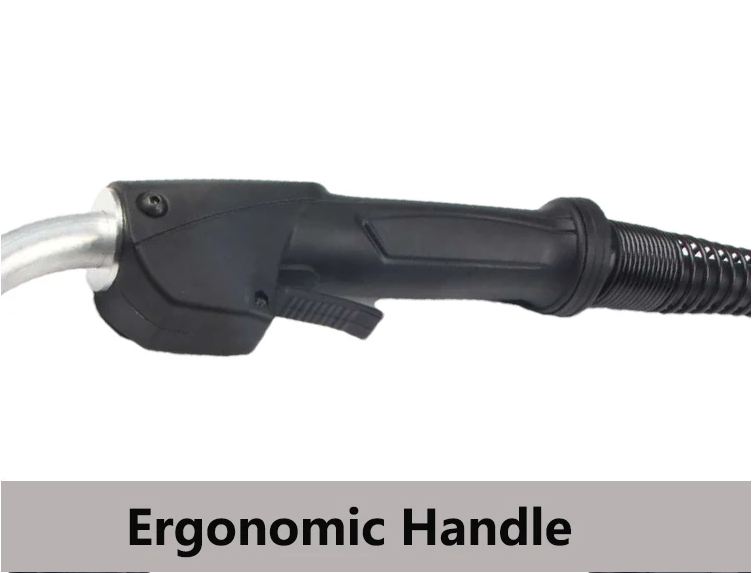

3	Handle	410
4	Switch	411-1
5	Switch The Trigger	411-2X
6	End Fitting	308
7	Cone Nut	409
8	Cable Ball Joint & Support Spring Big	400.1010B
9	Cable Assembly
10	Euro Direct Plug Kit	1199E
10-1	Rear Handle	501.2248
10-2	Adaptor nut	4861
10-3	Euro Central Connector	5060
11	Rear Handle American Brand	2520047
12	Control Wire (Tweco/Miller)	MAK-354
12-1	Control Wire (Lincoln)	LAK-354
13	Tweco Central Connector	2200103
14	Miller Central Connector	2200101
15	Lincoln Central Connector	2200099
15-1	Gas Tube	LKGAS

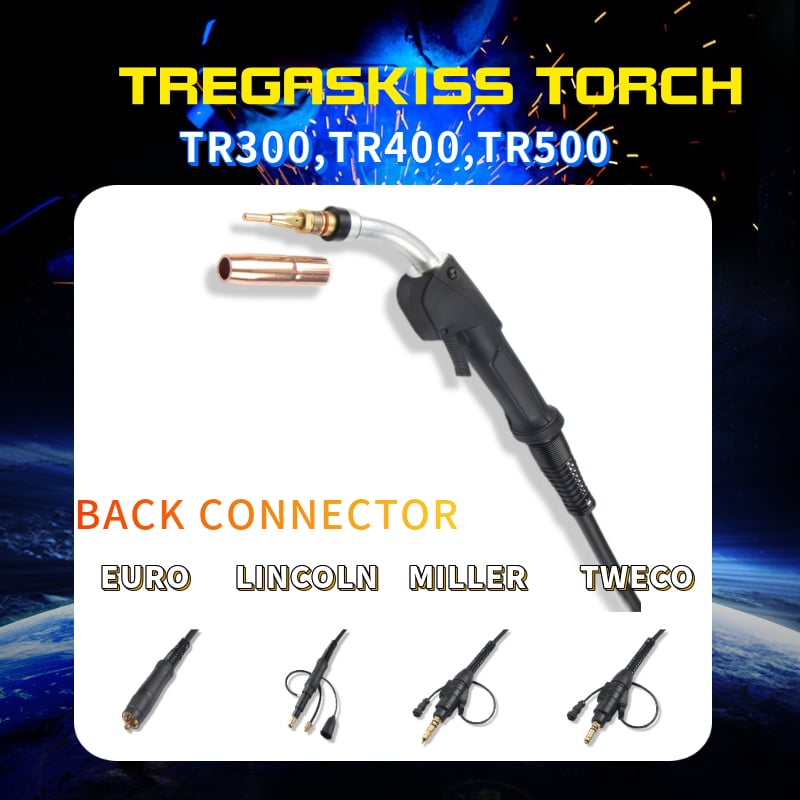

TRE PARTS-3

Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT details

Tonyweld Welding torches tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 10FT related productions

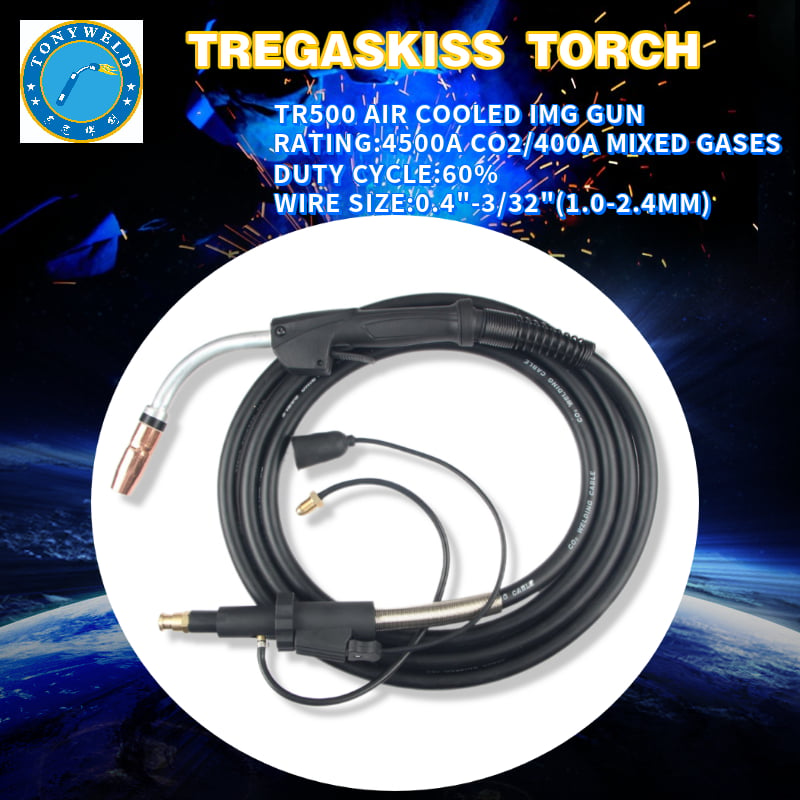

TRE 500A TORCH-1 TRE300 TREGASKISS

Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT Packing Size:

Neutral packing or our design package or as the customer's request of Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT

Our Services of Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT

. supply the qualified Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT

. samples Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT are available

. trial order Tonyweld mig torch tregaskiss torch tregaskiss tr300 350A air cooled Mig gun 15FT are available

. processing with customer's samples

FAQ:

Q1:Can I get a free samples to check the quality?

A:Sure,we can supply the free samples which price is low than US$5.

Q2:Will I afford the carrier charge?

A:Yes,you will afford the express charge or your account is OK.

Q3:Can I add my trademark on my products?

A:Yes,we need your certificate of authorization.

Q4:Welding torch payment terms:

T/T,L/C,Western union all support

Q5:Welding torch delivery time:

sample order 2 working days, 500pcs order 10 working days.

Q6:Min order:

1pc

9e1ab62ee8803ef88d1f71277c9b8b4fe9bb40d4e7175f017150c2f194a3f407

TONYWELD

The MIG Torch Tregaskiss Torch Tregaskiss TR300 350A Air Cooled MIG Gun 15FT is an essential addition to any welder's toolkit. This product is a high-quality and reliable MIG gun that has been designed to provide the ultimate welding experience.

Synonymous with durability and quality, while the TR300 MIG gun is no exception. It is made of premium materials that have been carefully selected to make sure that the weapon can handle even the most welding is challenging.

Provides 350 amps of energy, which makes it suitable for the range is wide of applications. It can be air-cooled, which means it can run for extended periods without overheating. This function is particularly ideal for people who need to complete jobs quickly and efficiently.

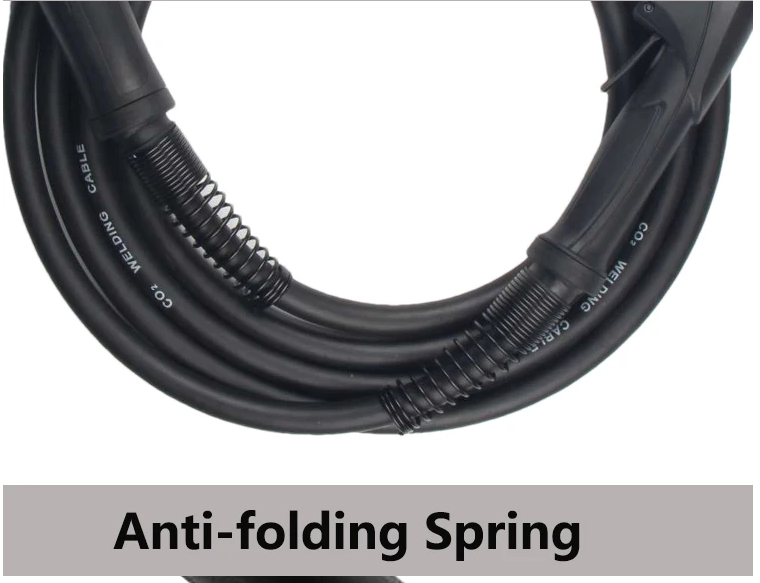

Includes a cable is 15FT giving you lots of room to manoeuvre around your workspace and reach perhaps the most challenging angles. The cable can also be made to be flexible and durable, ensuring that it won't easily snap or fray.

What sets it apart from its competitors is its Tregaskiss Torch design. This design ensures that welders experience a consistent and arc is stable also when working with complex welding projects. The Tregaskiss Torch also decreases spatter, which not merely makes the welding process cleaner but also helps to reduce the amount of post-weld clean-up required.

Overall, it is an device is exceptional is designed to really make the welding process easier, faster, and cleaner. It is made from top-quality materials that are designed to last, and the Tregaskiss Torch design ensures that welders can achieve accurate and results which can be consistent time they put it to use.

Whether you're a professional welder who needs a reliable tool for daily work or a hobbyist who wants to take their welding skills to the next level, the TR300 MIG gun is the perfect addition to your workshop. It comes from the trusted Tonyweld brand, which ensures that you can rely on it to get the job done right every time.
