| Mini mig welding torch MB 14AK -3m5AK Welding Gun |
Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Our company produces :
1.MIG/MAG,CO2 welding torch and welding parts such as nozzle,contact tip,swan neck,diffuser etc.
2.Tig welding torches and welding accessories such as collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,torch body etc.
3.air plasma cutting guns such as electrodes,tips,shields,swirl ring etc.
4.cable joint ,earth clamp,cutting nozzle.
5.welding helmet,electorde holder
6.tungsten electrode

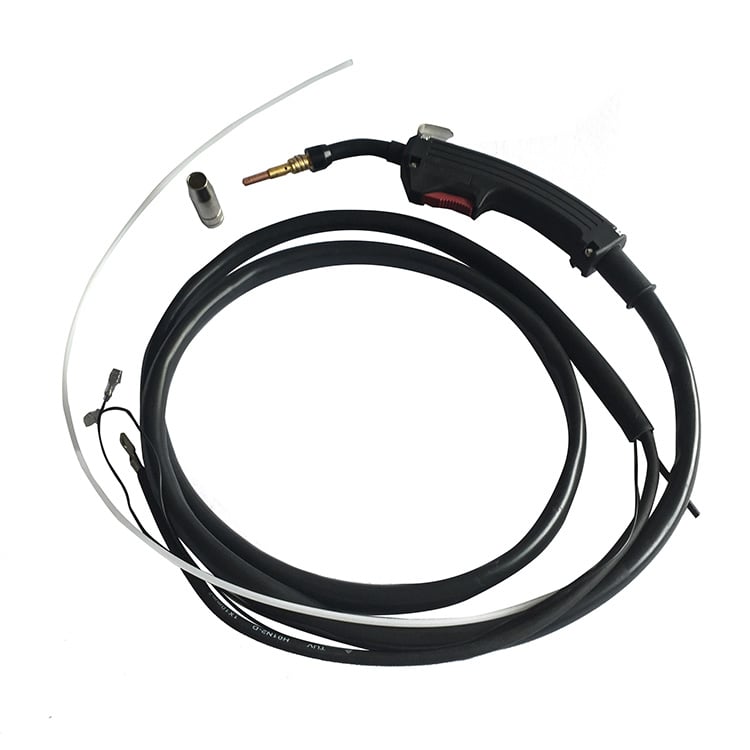

| 1.Mini mig welding torch MB 14AK -3m View |
.
| 2. Mini mig welding torch MB 14AK -3mTechnical Data: |
| Model |
MB-14AK Complete torch -3Meters |
MB-14 AKComplete torch -4Meters |
MB-14AK Comlete torch -5Meters |
| Item No. | 001.1303 | 001.1304 | 001.1305 |
| Welding Type | MIG/MAG CO2 torch | ||
| Rating |
100A CO2 120A Mixed Gases |
||
| Duty Cycle | 60% | ||
| Wire Size | 0.6-1.0mm | ||
| Cooled Type | Air Cooled | ||
| Connector Choosend | Euro,TBI,Panasonic,Miller,OTC,Bernard,Tweco etc. | ||
| Handle Choosen | Binzel(old type),Binzel(grip type),TBI | ||
| Net Weight | 2.5KG | 3KG | 3.5KG |
| Gross Weight | 2.8KG | 3.3KG | 3.8KG |
| Packing Size |
34*34*6CM |
||
| 3. Mini mig welding torch MB 14AK -3m Accessories Item No.: |
| OEM # | Description |
| 001.1303 | MB-14AK Complete Welding Torch-3M |
| 001.1304 | MB-14AK Complete Welding Torch-4M |
| 001.1305 | MB-14AK Complete Welding Torch-5M |
| 145.0041 | Cylindrical Nozzleφ16mm |
| 145.0075 | Conical Nozzleφ12mm |
| 145.0123 | Tapered Nozzleφ9.5mm |
| 140.0008 | Contact tip M6*25*0.6,E-cu |
| 140.0059 | Contact tip M6*25*0.8,E-cu |
| 140.0177 | Contact tip M6*25*0.9,E-cu |
| 140.0253 | Contact tip M6*25*1.0,E-cu |
| 140.0855 | Contact tip M6*25*0.6,CuCrZr |
| 140.0062 | Contact tip M6*25*0.8,CuCrZr |
| 140.0180 | Contact tip M6*25*0.9,CuCrZr |
| 140.0256 | Contact tip M6*25*1.0,CuCrZr |
| 002.0058 | Gas Nozzle Holder |
| 012.0183 | Gas Diffuser |
| 902.0004 | Swan Neck |
| 180.0076 | Handle |
| 185.0031 | Switch |
| 500.0213 | Adapotor Nut |
| 501.0003 | Central ConnectorKZ-2 |
| Steel liner,For wireφ0.8-1.0,3.5M | |
| Steel liner,For wireφ0.8-1.0,4.5M | |
| Steel liner,For wireφ0.8-1.0,5.5M |

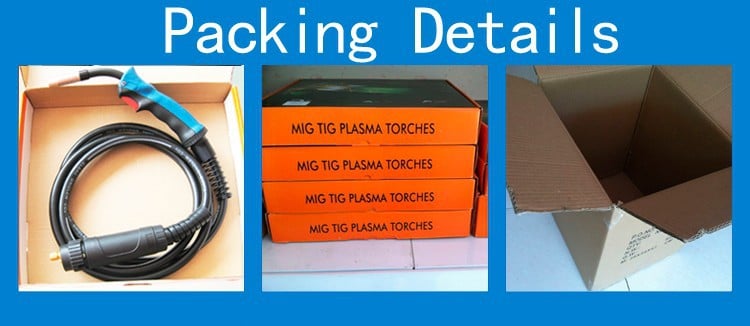

| 4. Mini mig welding torch MB 14AK -3m Packing Size: |
. 1 piece Mini mig welding torch MB 14AK -3mpacked in a plastic bag
. then packed in a box(box size 37*35*7CM)
. 5 pieces Mini mig welding torch MB 14AK -3m packed in a carton(carton size 38*36*35CM)
. 135 pieces Mini mig welding torch MB 14AK -3m packed in a pallet(pallet size 110*110*120CM)
| 5.Family Welding Torch: |
. MB-14AK welding torch
. MB-24KD welding torch
. MB-25AK welding torch
. MB-36KD welding torch
. MB-40KD welding torch
. MB-501D welding torch
| 6.Our Services: |
. supply the qualified products
. samples are available
. trial order are available
. processing with customer's samples
| 7.Factory View: |
We TONYWELD CO are a professional manufacture in welding torch and cutting torch.
We supply the following products:
1.MIG MAG welding torch and welding accessories
2.TIG welding torch and welding accessories
3.Air plasma cutting torch and cutting accessoires
4.Our products with CE and CCC certificate
5.We have 12 years experience to export many countries.
| 8.FAQ: |
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Tonyweld
The Mini MIG welding torch MB 14AK -3m could be the device welding ideal and specialists alike. The torch is manufactured utilizing often materials top-notch is built to final. It is designed to squeeze into tiny an areas easy task to manage, offering the consumer total control of their welds.
The Mini MIG welding torch MB 14AK -3m is wonderful for employed in tight areas which consists of compact design and construction lightweight. Its size Bit and yes it an easy task to transport, that makes it well suited for on-the-go tasks if not for using to work sites. The Tonyweld torch includes a hold comfortable enables a person to exert effort effortlessly without experiencing any pressure on the fingers and hands.
The Mini MIG welding torch MB 14AK -3m is suitable for several welding devices. It offers a cable 3-meter permits a person to operate and never having to be tethered to your welding device. The cable is made from durable materials which will withstand the welding conditions toughest.
The Mini MIG welding torch MB 14AK -3m is great for welding a quantity of metals, including metal aluminum stainless. It Might manage both work and light heavy-duty may be used when it comes to choose of applications. The torch is by using the ability of delivering a frequent and exact weld, making work is with this quality greatest.
The Mini MIG welding torch MB 14AK -3m is manufactured by tonyweld, a business well known for creating top-notch welding equipment both dependable and sturdy. Their products or services or services are created to final and they are built to meet up with the requirements of both professional welders DIY enthusiasts.
The Mini MIG welding torch MB 14AK -3m may be the perfect device if you should be buying compact and versatile welding torch for you personally. Its compact design, compatibility by having an array of welding devices, and compatibility having an array of metals make sure it is something versatile can handle any welding task. Why wait? Get the Mini MIG welding torch MB 14AK -3m today and merely take your welding abilities to the degree next.
