Home > Products > MAG/MIG CO2 > Binzel welding Torch and Parts
| 25AK mag mig welder welding torch welding gun |
Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Our company produces :
1.MIG/MAG,CO2 welding torch and welding parts such as nozzle,contact tip,swan neck,diffuser etc.
2.Tig welding torches and welding accessories such as collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,torch body etc.
3.air plasma cutting guns such as electrodes,tips,shields,swirl ring etc.
4.cable joint ,earth clamp,cutting nozzle.
5.welding helmet,electorde holder
6.tungsten electrode

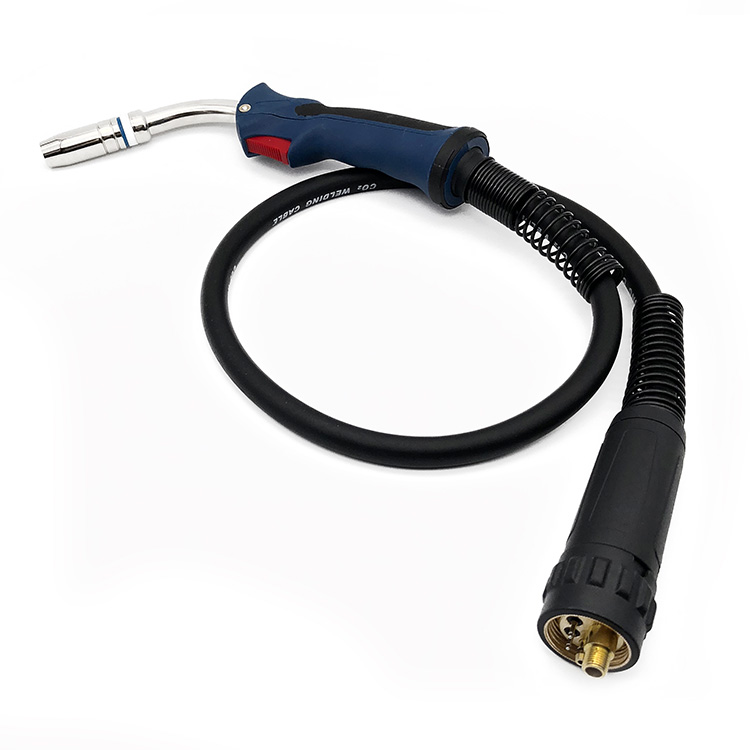

| 1. 25AK mag mig welder welding torch welding gun View |
.
| 2. 25AK mag mig welder welding torch welding gun Technical Data: |
| Model |
MB-25AK Complete torch -3Meters |
MB-25 AKComplete torch -4Meters |
MB-25AK Comlete torch -5Meters |
| Item No. | 0024.0312 | 004.0313 | 004.0314 |
| Welding Type | MIG/MAG CO2 torch | ||
| Rating |
230A CO2 200A Mixed Gases |
||
| Duty Cycle | 60% | ||
| Wire Size | 0.8-1.2mm | ||
| Cooled Type | Air Cooled | ||
| Connector Choosend | Euro,TBI,Panasonic,Miller,OTC,Bernard,Tweco etc. | ||
| Handle Choosen | Binzel(old type),Binzel(grip type),TBI | ||
| Net Weight | 2.5KG | 3KG | 3.5KG |
| Gross Weight | 2.8KG | 3.3KG | 3.8KG |
| Packing Size | 34*34*6CM |
||
| 3. 25AK mag mig welder welding torch welding gun Accessories Item No.: |
| OEM # | Description |
| 004.0312 | MB-25AK Complete Welding Torch-3M |
| 004.0313 | MB-25AK Complete Welding Torch-4M |
| 004.0314 | MB-25AK Complete Welding Torch-5M |
| 145.0042 | Cylindrical Nozzleφ18mm |
| 145.0076 | Conical Nozzleφ15mm |
| 145.0124 | Tapered Nozzleφ11.5mm |
| 140.0005 | Contact tip M6*28*0.6,E-cu |
| 140.0051 | Contact tip M6*28*0.8,E-cu |
| 140.0169 | Contact tip M6*28*0.9,E-cu |
| 140.0242 | Contact tip M6*28*1.0,E-cu |
| 140.0379 | Contact tip M6*28*1.2,E-cu |
| 140.0998 | Contact tip M6*28*0.6,CuCrZr |
| 140.0054 | Contact tip M6*28*0.8,CuCrZr |
| 140.0172 | Contact tip M6*28*0.9,CuCrZr |
| 140.0245 | Contact tip M6*28*1.0,CuCrZr |
| 140.0382 | Contact tip M6*28*1.2,CuCrZr |
| 003.0013 | Gas Nozzle Holder |
| 004.0012 | Swan Neck |
| 180.0076 | Handle |
| 185.0031 | Switch |
| 500.0213 | Adapotor Nut |
| 501.0003 | Central ConnectorKZ-2 |
| Steel liner,For wireφ0.8-1.0,3.5M | |
| Steel liner,For wireφ0.8-1.0,4.5M | |
| Steel liner,For wireφ0.8-1.0,5.5M |
| 4. 25AK mag mig welder welding torch welding gun Welding Torch Packing Size: |
. 1 piece 25AK mag mig welder welding torch welding gun packed in a plastic bag
. then packed in a box(box size 37*35*7CM)
. 5 pieces 25AK mag mig welder welding torch welding gunpacked in a carton(carton size 38*36*35CM)
. 135 pieces 25AK mag mig welder welding torch welding gun packed in a pallet(pallet size 110*110*120CM)
| 5.Family Welding Torch: |
. MB-14AK welding torch
. MB-24KD welding torch
. MB-25AK welding torch
. MB-36KD welding torch
. MB-40KD welding torch
. MB-501D welding torch
| 6.Our Services: |
. supply the qualified products
. samples are available
. trial order are available
. processing with customer's samples
| 7.Factory View: |
We TONYWELD CO are a professional manufacture in welding torch and cutting torch.
We supply the following products:
1.MIG MAG welding torch and welding accessories
2.TIG welding torch and welding accessories
3.Air plasma cutting torch and cutting accessoires
4.Our products with CE and CCC certificate
5.We have 12 years experience to export many countries.
| 8.FAQ: |
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Providing 25AK mag mig welder welding lantern welding weapon, these gadgets supreme your finish welding demands! This item is produced along with progressed degree innovation that assurances the requirement biggest of welding, creating this effectively fit for professionals DIY lovers as well.
The 25AK mag mig welder welding lantern welding weapon is easy to change, providing you the accuracy you will require for the welding tasks which includes easy to use style. The lantern is created coming from resilient products which will endure problems which are higher creating specific it lasts long which is immune towards practically any type of wear and tear.
25AK mag mig welder welding lantern welding weapon is really a gadget flexible may be been applicable along with a number of type of welding cable television, that makes it a essential for metalworkers throughout the globe. Its own ergonomic style assists towards ensure it truly fits towards function effectively along with, decreasing driver fatigue effectiveness enhancing.
The lantern has cable television lengthy provides one towards walk around easily while welding, offering you along with much a lot extra flexibility towards weld in hard-to-reach locations. Furthermore is packed up along with a gas shutoff that enables you towards certainly obtain a hold on the motion of gas, providing you much a lot extra command within the treatment creating specific your welding is coming from the high top premium biggest.
25AK mag mig welder welding lantern welding weapon consists of a selection of attachments, providing you options which are additional your welding jobs. A welding is roofed due to the set nozzle, a welding lantern, a nozzle cleanser, as well as a nozzle deal with. These attachments are created to create your function simpler a lot more pleasurable.
This technique is light-weight simple towards relocate, that makes it ideal for people of all of ability degrees, whether they are experts or even DIY lovers. It is extremely sensible, creating it available to people that are just beginning in welding.
