| 15AK mag mig welder welding torch welding gun |
Changzhou Tonyweld Co.,Ltd.is a professionl manufacturer MIG/MAG welding torch,TIG welding torch and air plasma cutting gun.We have tens years exprience to export many countries,and our products is very competitive in the world.
Our company produces :
1.MIG/MAG,CO2 welding torch and welding parts such as nozzle,contact tip,swan neck,diffuser etc.
2.Tig welding torches and welding accessories such as collet,collet body,gas lens,ceramic nozzle,aluminal nozzle,torch body etc.
3.air plasma cutting guns such as electrodes,tips,shields,swirl ring etc.
4.cable joint ,earth clamp,cutting nozzle.
5.welding helmet,electorde holder
6.tungsten electrode

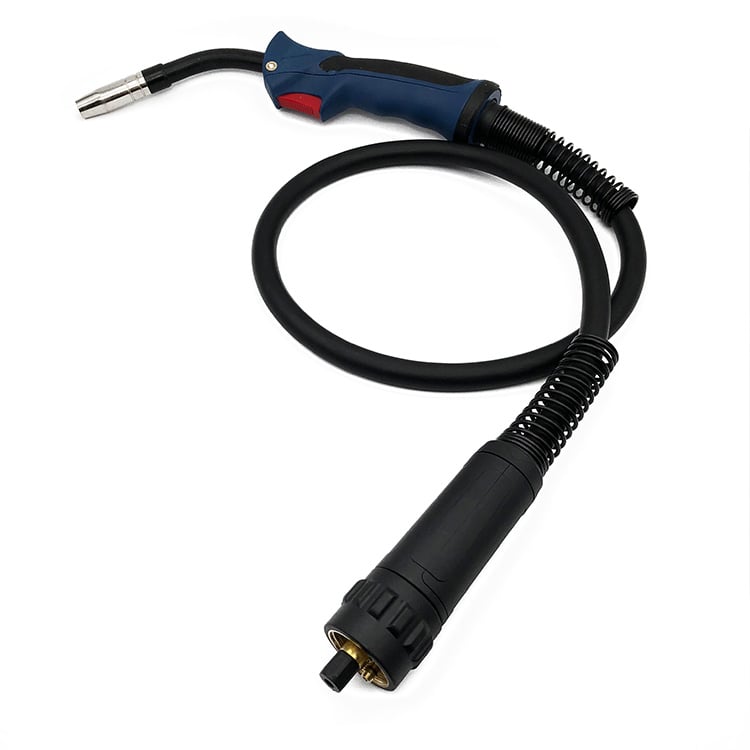

| 1. 15AK mag mig welder welding torch welding gun View |
| 2. 15AK mag mig welder welding torch welding gun Technical Data: |
| Model |
MB-15AK Complete torch -3Meters |
MB-15 AKComplete torch -4Meters |
MB-15AK Comlete torch -5Meters |
| Item No. | 002.0449 | 002.0450 | 002.0451 |
| Welding Type | MIG/MAG CO2 torch | ||
| Rating |
180A CO2 150A Mixed Gases |
||
| Duty Cycle | 60% | ||
| Wire Size | 0.6-1.0mm | ||
| Cooled Type | Air Cooled | ||
| Connector Choosend | Euro,TBI,Panasonic,Miller,OTC,Bernard,Tweco etc. | ||
| Handle Choosen | Binzel(old type),Binzel(grip type),TBI | ||
| Net Weight | 2.5KG | 3KG | 3.5KG |
| Gross Weight | 2.8KG | 3.3KG | 3.8KG |
| Packing Size | 34*34*6CM |
||
| 3. 15AK mag mig welder welding torch welding gun Accessories Item No.: |
| OEM # | Description |
| 002.0449 | MB-15AK Complete Welding Torch-3M |
| 002.0450 | MB-15AK Complete Welding Torch-4M |
| 002.0451 | MB-15AK Complete Welding Torch-5M |
| 145.0041 | Cylindrical Nozzleφ16mm |
| 145.0075 | Conical Nozzleφ12mm |
| 145.0123 | Tapered Nozzleφ9.5mm |
| 140.0008 | Contact tip M6*25*0.6,E-cu |
| 140.0059 | Contact tip M6*25*0.8,E-cu |
| 140.0177 | Contact tip M6*25*0.9,E-cu |
| 140.0253 | Contact tip M6*25*1.0,E-cu |
| 140.0855 | Contact tip M6*25*0.6,CuCrZr |
| 140.0062 | Contact tip M6*25*0.8,CuCrZr |
| 140.0180 | Contact tip M6*25*0.9,CuCrZr |
| 140.0256 | Contact tip M6*25*1.0,CuCrZr |
| 002.0058 | Gas Nozzle Holder |
| 012.0183 | Gas Diffuser |
| 902.0004 | Swan Neck |
| 180.0076 | Handle |
| 185.0031 | Switch |
| 500.0213 | Adapotor Nut |
| 501.0003 | Central ConnectorKZ-2 |
| Steel liner,For wireφ0.8-1.0,3.5M | |
| Steel liner,For wireφ0.8-1.0,4.5M | |
| Steel liner,For wireφ0.8-1.0,5.5M |
| 4. 15AK mag mig welder welding torch welding gun Welding Torch Packing Size: |
. 1 piece welding torch packed in a plastic bag
. then packed in a box(box size 37*35*7CM)
. 5 pieces welding torches packed in a carton(carton size 38*36*35CM)
. 135 pieces welding torches packed in a pallet(pallet size 110*110*120CM)
| 5.Family Welding Torch: |
. MB-14AK welding torch
. MB-24KD welding torch
. MB-25AK welding torch
. MB-36KD welding torch
. MB-40KD welding torch
. MB-501D welding torch
| 6.Our Services: |
. supply the qualified products
. samples are available
. trial order are available
. processing with customer's samples
| 7.Factory View: |
We TONYWELD CO are a professional manufacture in welding torch and cutting torch.
We supply the following products:
1.MIG MAG welding torch and welding accessories
2.TIG welding torch and welding accessories
3.Air plasma cutting torch and cutting accessoires
4.Our products with CE and CCC certificate
5.We have 12 years experience to export many countries.
| 8.FAQ: |
Q1:Can I get a free samples to check the quality?
A:Sure,we can supply the free samples which price is low than US$5.
Q2:Will I afford the carrier charge?
A:Yes,you will afford the express charge or your account is OK.
Q3:Can I add my trademark on my products?
A:Yes,we need your certificate of authorization.
Tonyweld
The 15AK MIG/MAG welding torch is the perfect tool for anyone wanting to achieve precise and efficient welding. This welding gun is designed to work with a wide range of welding machines, making it a versatile option for welding enthusiasts and professionals alike.
Features an handle is ergonomic fits comfortably in your hand, allowing for extended welding sessions without discomfort. The torch's lightweight design minimizes operator fatigue, providing more comfort and protection to your arm and wrist while you weld. This function causes it to be a device is convenient for longer, demanding welding tasks.
Equipped with high-quality components that are built to final. It features a temp is high nozzle that can withstand high temperatures, making certain the torch persists longer. The top-notch materials used to make the torch also add to the reliability of the welding gun, ensuring performance is constant time.
Wire feed mechanism is also impressive, letting you get control is precise the welding operation, ensuring successful welds every time. With the MIG/MAG is 15AK welding, you've got the flexibility to weld at different angles, using various kinds of welding filler metals and gas.
The torch's efficient construction means that it is perfect for the welding needs whether you might be taking care of little or large projects. It is suitable for welding various materials such as for example stainless metal, carbon steel, aluminum, and copper, rendering it a tool is versatile will cover your project needs with ease.
The Tonyweld 15AK MIG/MAG welding torch is a reliable, flexible, and high-performance tool that will help you obtain precise and efficient welding results. It is perfect for welding enthusiasts, DIY projects, and professional welders looking to achieve quality welds with every project. With this welding gun, you can experience the convenience and reliability that Tonyweld products bear.
