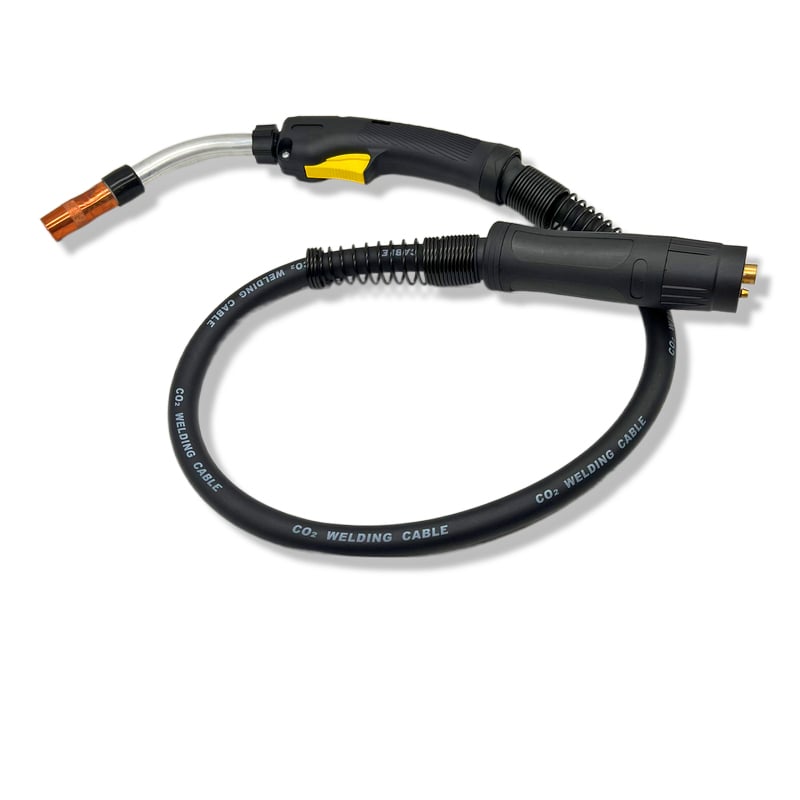

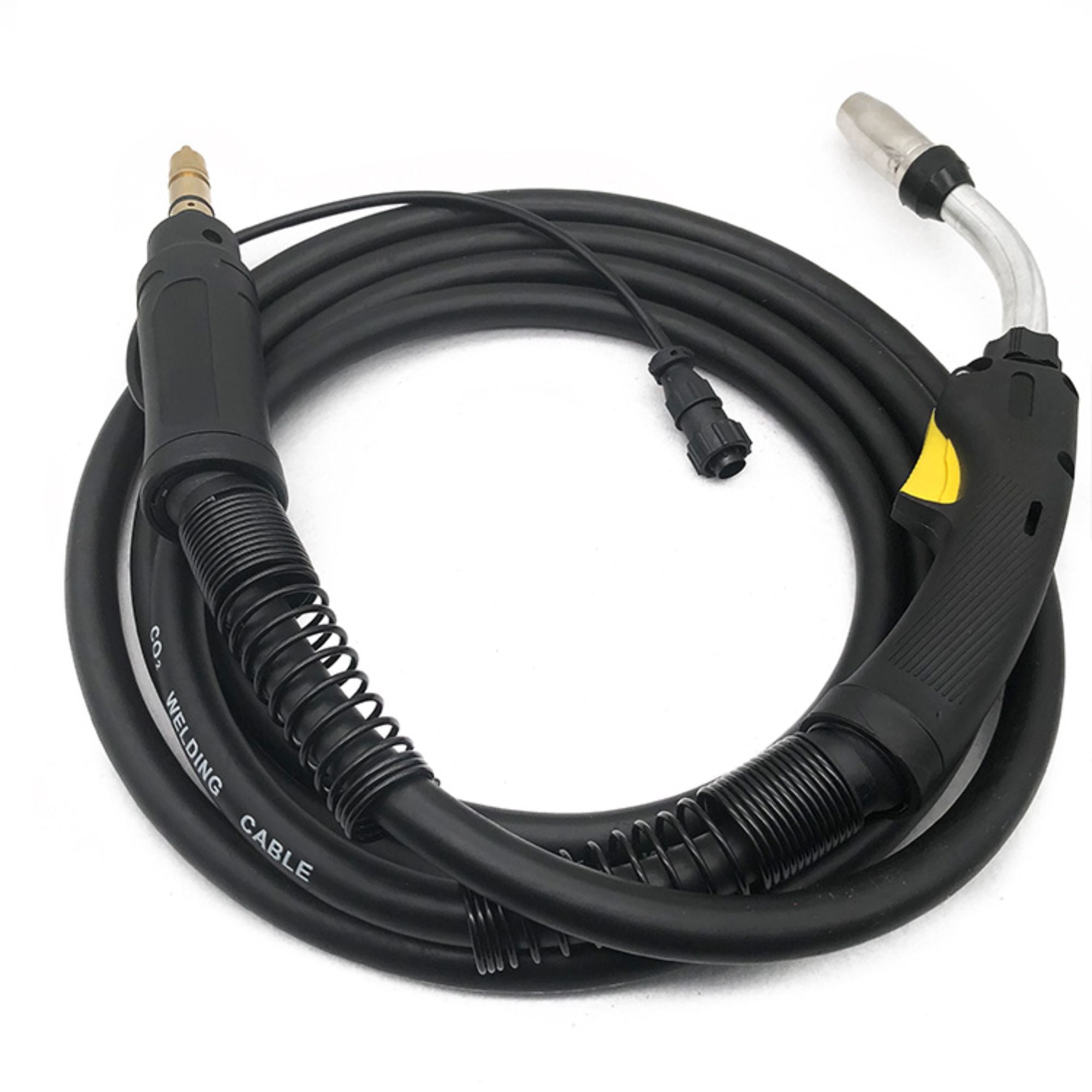

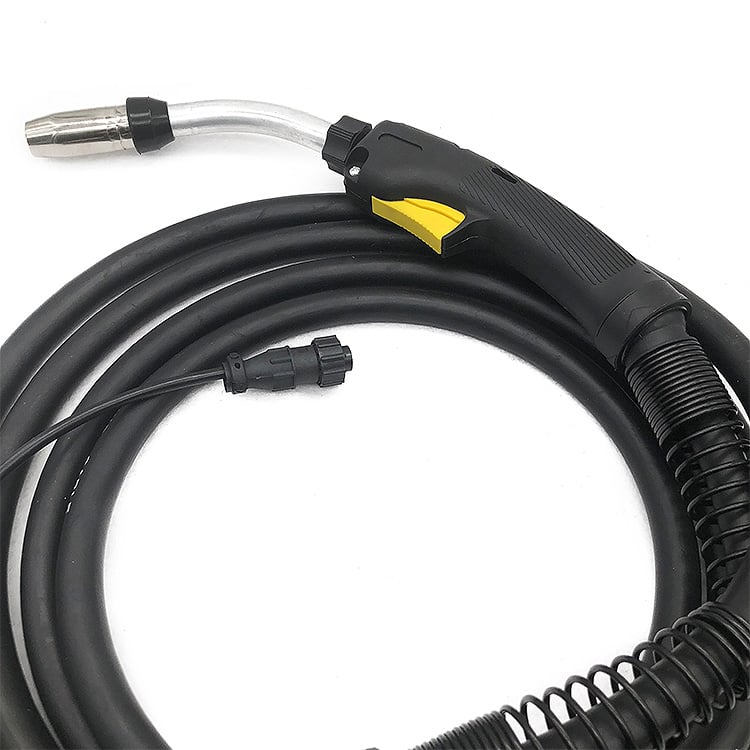

| BND BTB Q40 AIR COOLED MIG WELDING TORCH | ||
| Technical Data： | Rating: 400A CO2/350A Mixed Gases | |
| Duty Cycle: 60% | ||
| Wire Size: .025”-1/16”(0.6-1.6mm) | ||
| Type | 10ft(3.0m) | |
| Q400 MIG Gun Euro Connector | Q4010AE8EE | |
| Q400 MIG Gun Miller Connector | Q4010AE8EM | |
| Q400 MIG Gun Tweco Connector | Q4010AE8ET | |
| Q400 MIG Gun Lincoln Connector | Q4010AE8EL | |
| No. | Description | Order |

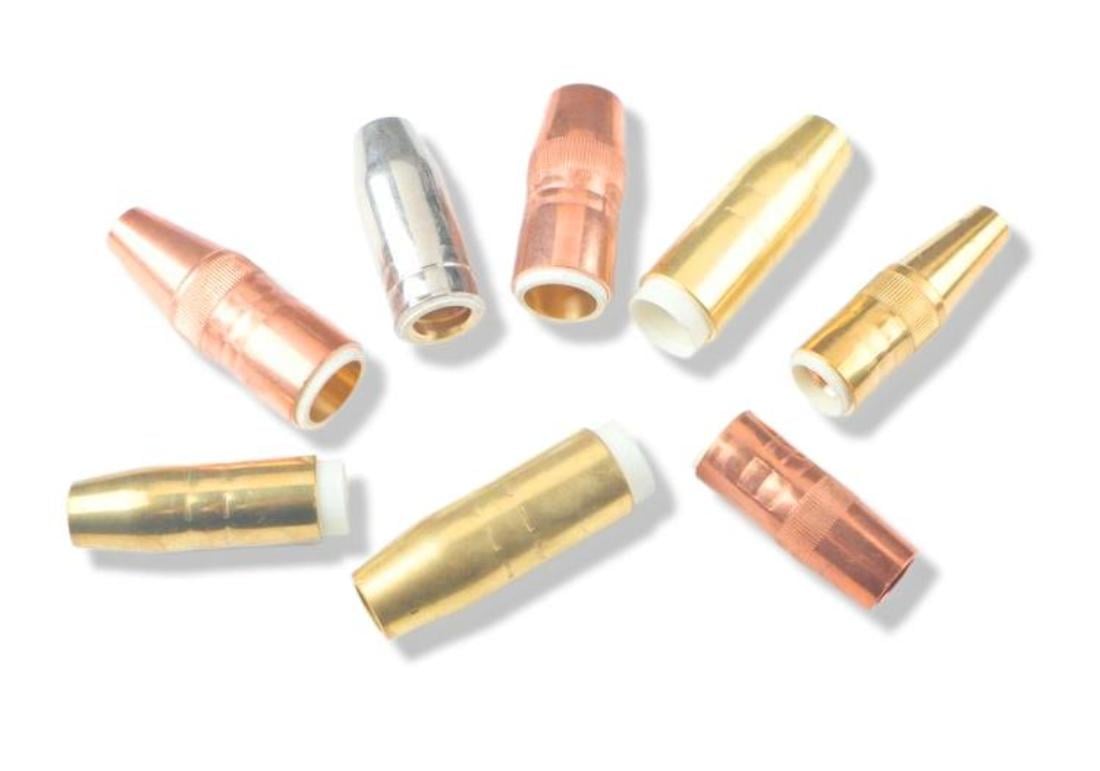

| A | Nozzle 5/8″ 15.9mm Flush Copper | N-5800C |
| Nozzle 5/8″ 15.9mm 1/8″ Recess Copper | N-5818C | |
| Nozzle 5/8″ 15.9mm 1/4″ Recess Copper | N-5814C | |
| Nozzle 3/4″ 19mm Flush Copper | N-3400C | |
| Nozzle 3/4″ 19mm 1/8″ Recess Copper | N-3418C | |
| Nozzle 3/4″ 19mm 1/4″ Recess Copper | N-3414C | |
| A-1 | Quik Tip Nozzle 3/4” 19mm Copper | N1C34Q |
| Quik Tip Nozzle 3/4” 19mm Brass | N1B34Q | |
| Quik Tip Nozzle 5/8” 15.9mm Copper | N1C58Q | |
| Quik Tip Nozzle 5/8” 15.9mm Brass | N1B58Q | |
| Quik Tip Nozzle 1/2” 12.7mm Copper | N1C12Q | |
| Quik Tip Nozzle 3/4” 19mm Bore Copper HD | N1C34HQ | |
| Quik Tip Nozzle 5/8” 15.9mm Bore Copper HD | N1C58HQ | |
| B | Contact Tip .023” 0.6mm | T-023 |
| Contact Tip .030” 0.8mm | T-030 | |
| Contact Tip .035” 0.9mm | T-035 | |
| Contact Tip .039” 1.0mm | T-039 | |
| Contact Tip .045” 1.2mm | T-045 | |
| Contact Tip .052” 1.4mm | T-052 | |
| Contact Tip 1/16” 1.6mm | T-062 | |
| Contact Tip 5/64” 2.0mm | T-078 | |
| Contact Tip 3/32” 2.4mm | T-094 | |
| B-1 | Contact Quik Tip .045” 1.2mm | T1045 |
| Contact Quik Tip .052” 1.4mm | T1052 | |
| Contact Quik Tip 1/16” 1.6mm | T1116 | |
| Contact Quik Tip .068” 1.7mm | T1068 | |
| Contact Quik Tip .072” 1.9mm | T1072 | |
| Contact Quik Tip 5/64” 2.0mm | T1564 | |
| Contact Quik Tip 3/32” 2.4mm | T1332 | |
| C | Diffuser | D-1 |
| C-1 | Quik Tip Diffuser 1/4″ Recess | D114Q |
| Quik Tip Diffuser 1/8″ Recess | D118Q | |
| Quik Tip Diffuser Flush | D1FQ | |
| D | Neck Insulator | 10012 |
| E | Liner for .045”-.1/16” (1.2-1.6) 10ft (3.0m) | 44210 |
| Liner for .045”-.1/16” (1.2-1.6) 15ft (4.6m) | 44215 | |
| Liner for .045”-.1/16” (1.2-1.6) 25ft (7.6m) | 44225 | |
| No. | Description | Order |

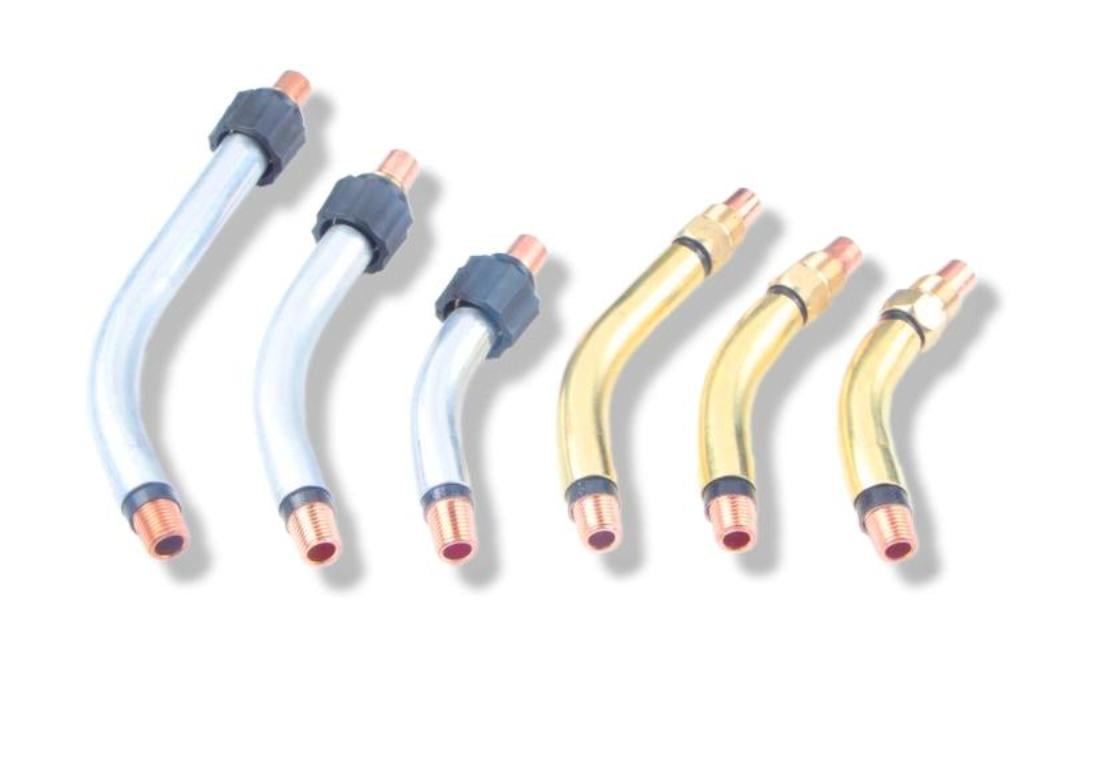

| 1 | Swan neck 45° | QT3-45 |
| Swan neck 60° | QT3-60 | |
| 2 | Nut Cover | 1840057 |
| 3 | End fitting | 4313B |
| 4 | Cone nut | 1540003 |
| 5 | Front Handle | 1880198 |
| 6 | Hook | 1790002 |
| 7 | Switch | 5662 |
| 8 | Cable Ball Joint & Support Spring Big | 400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | 1060115 |
| Gun & Cable Asbly 12ft(3.6m) | 1060116 | |
| Gun & Cable Asbly 15ft(4.6m) | 1060117 | |
| 10 | Euro Direct Plug Kit | 1199E |
| 10-1 | Rear Handle | 501.2248 |
| 10-2 | Adaptor nut | 4861 |
| 10-3 | Bernard Euro Central Connector | 5060 |
| 11 | Rear Handle American Brand | 2520047 |
| 12 | Control Wire (Tweco/Miller) | MAK-354 |
| 12-1 | Control Wire (TLincoln) | LAK-354 |
| 13 | Tweco Central Connector | 2200103 |
| 14 | Miller Central Connector | 2200101 |
| 15 | Lincoln Central Connector | 2200099 |
| 15-1 | Gas Tube | LKGAS |
