Overview

Bnd Q30 CO2 mig welding torch and consumables supplier

Bnd Q30 CO2 mig welding torch and consumables factory

Bnd Q30 CO2 mig welding torch and consumables manufacture

Bnd 200A CO2 mig welding torch package

* 1 piece Bnd mig torch 200A package in a carton

Our Sevice

* timely online 24 hours .

* sample order /trail order is available .

*supply the qualified products.

*after -sale service

*processing customer's sample .

企业微信截图_17103874003399

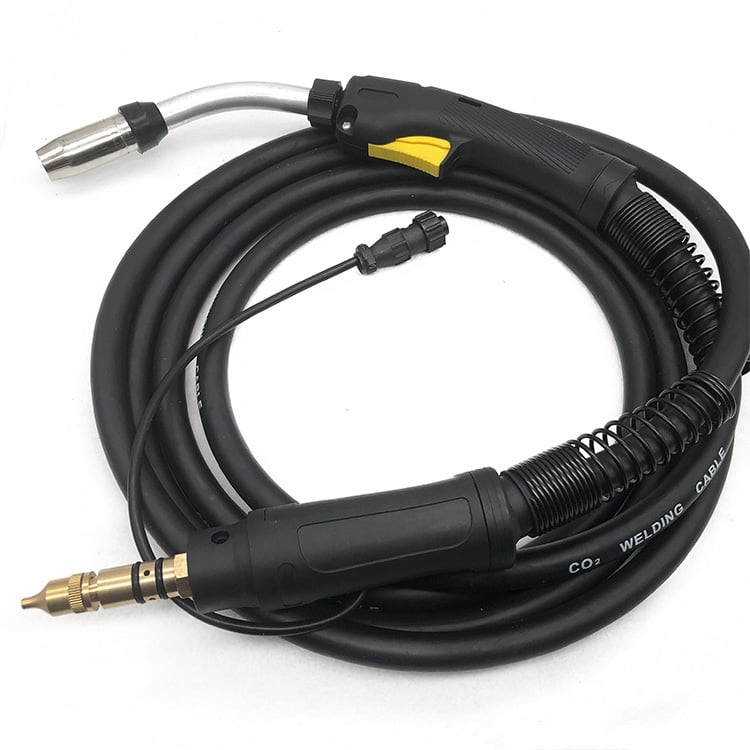

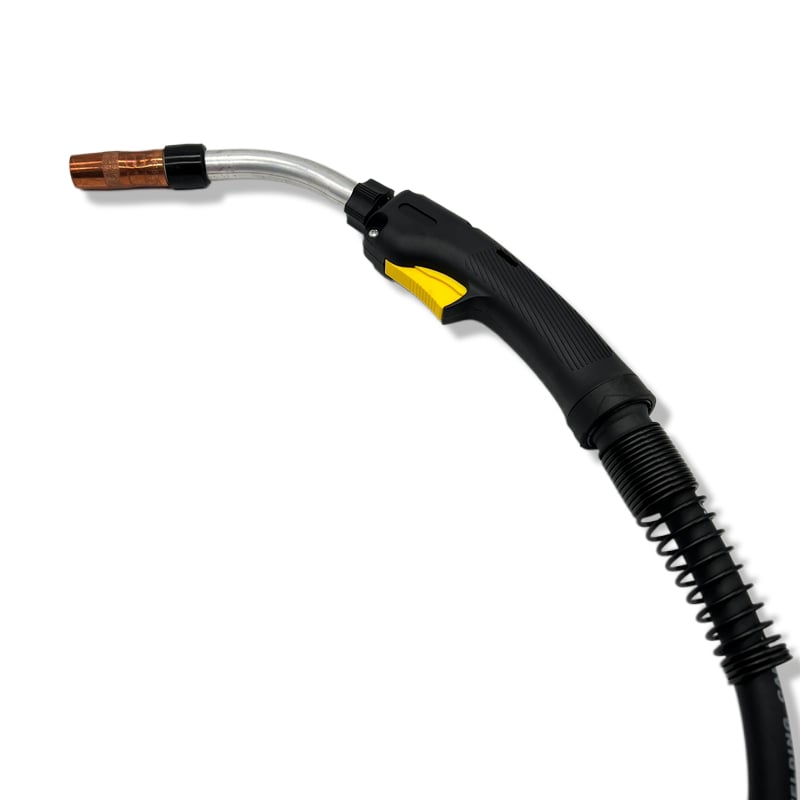

BND BTB Q30 AIR COOLED MIG GUN
Technical Data：	Rating: 300A CO2/250A Mixed Gases
	Duty Cycle: 60%
	Wire Size: .025”-.045”(0.6-1.2mm)

	Type	10ft(3.0m)
	Q300 MIG Gun Euro Connector	Q3010AE8EE
	Q300 MIG Gun Miller Connector	Q3010AE8EM
	Q300 MIG Gun Tweco Connector	Q3010AE8ET
	Q300 MIG Gun Lincoln Connector	Q3010AE8EL

No.	Description	Order
A	Nozzle 5/8″ 15.9mm Flush Copper	NS-5800C
	Nozzle 5/8″ 15.9mm 1/8″ Recess Copper	NS-5818C*
	Nozzle 5/8″ 15.9mm 1/4″ Recess Copper	NS-5814C
	Nozzle 5/8″ 15.9mm Flush Brass	NS-5800B
	Nozzle 5/8″ 15.9mm 1/8″ Recess Barss	NS-5818B
	Nozzle 5/8″ 15.9mm 1/4″ Recess Barss	NS-5814B
	Nozzle 1/2″ 12.7mm 1/8″ Recess Copper	NS-1218C
	Nozzle 1/2″ 12.7mm Flush Brass	NS-1200B
	Nozzle 1/2″ 12.7mm 1/4″ Recess Barss	NS-1218B
A-1	Nozzle 3/8″ 9.5mm Flush Brass	NST-3800B
	Nozzle 3/8” 9.5mm 1/8″ Recess Brass	NST-3818B
	Nozzle 3/8″ 9.5mm 1/8″ Extension Brass	NST-38XTB
B	Contact Tip .023” 0.6mm	T-023
	Contact Tip .030” 0.8mm	T-030
	Contact Tip .035” 0.9mm	T-035
	Contact Tip .039” 1.0mm	T-039
	Contact Tip .045” 1.2mm	T-045*
	Contact Tip .052” 1.4mm	T-052
B-1	Contact Tip .023” 0.6mm	TT-023
	Contact Tip .030” 0.8mm	TT-030
	Contact Tip .035” 0.9mm	TT-035
	Contact Tip .039” 1.0mm	TT-039
	Contact Tip .045” 1.2mm	TT-045
	Contact Tip .052” 1.4mm	TT-052
C	Diffuser	DS-1
D	Neck Insulator	4323R
E	Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m)	44110
	Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m)	44115
	Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m)	44125

No.	Description	Order
1	Swan neck 45°	QT3-45
	Swan neck 60°	QT3-60
2	Nut Cover	1840057
3	End fitting	4213B
4	Cone nut	4305
5	Front Handle	1880198
6	Hook	1790002
7	Switch	5662
8	Cable Ball Joint & Support Spring Big	400.1010B
9	Gun & Cable Asbly 10ft(3.0m)	1060109
	Gun & Cable Asbly 12ft(3.6m)	1060110
	Gun & Cable Asbly 15ft(4.6m)	1060111
10	Euro Direct Plug Kit	1199E
10-1	Rear Handle	501.2248
10-2	Adaptor nut	4861
10-3	Bernard Euro Central Connector	5060
11	Rear Handle American Brand	2520047
12	Control Wire (Tweco/Miller)	MAK-354
12-1	Control Wire (TLincoln)	LAK-354
13	Tweco Central Connector	2200103
14	Miller Central Connector	2200101
15	Lincoln Central Connector	2200099
15-1	Gas Tube	LKGAS
