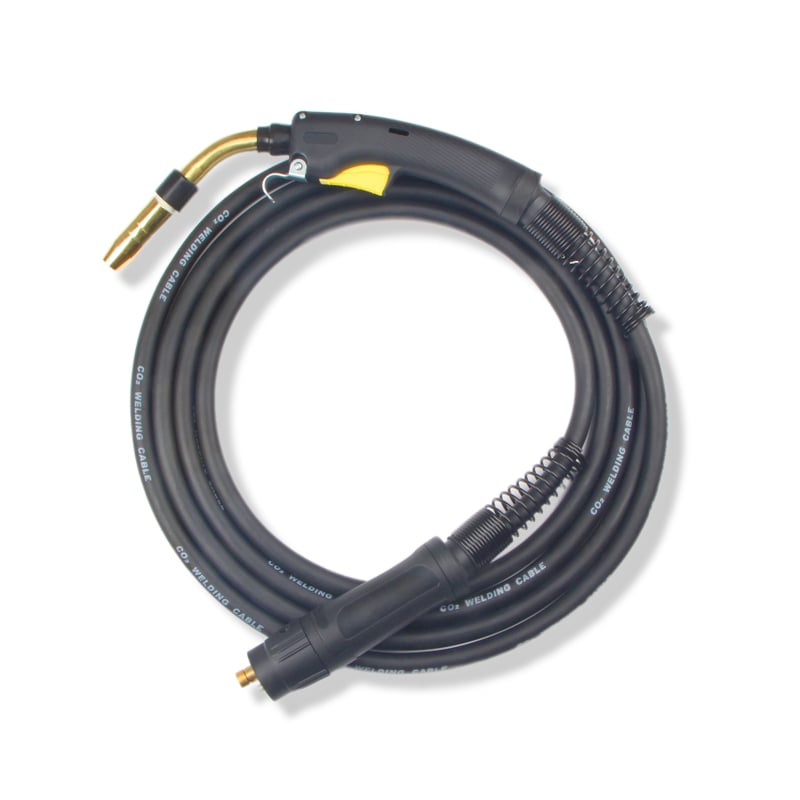

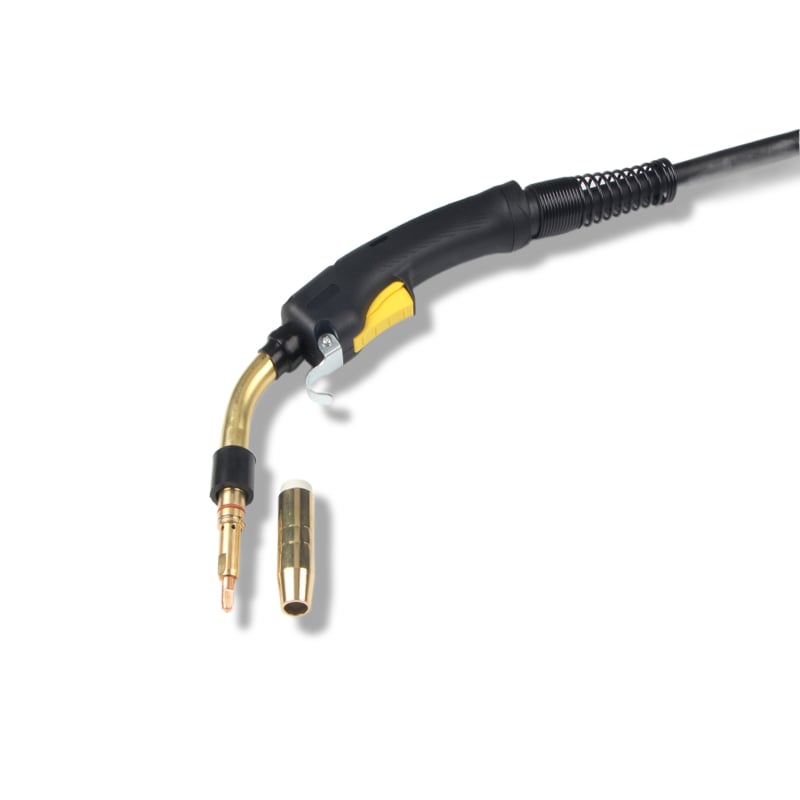

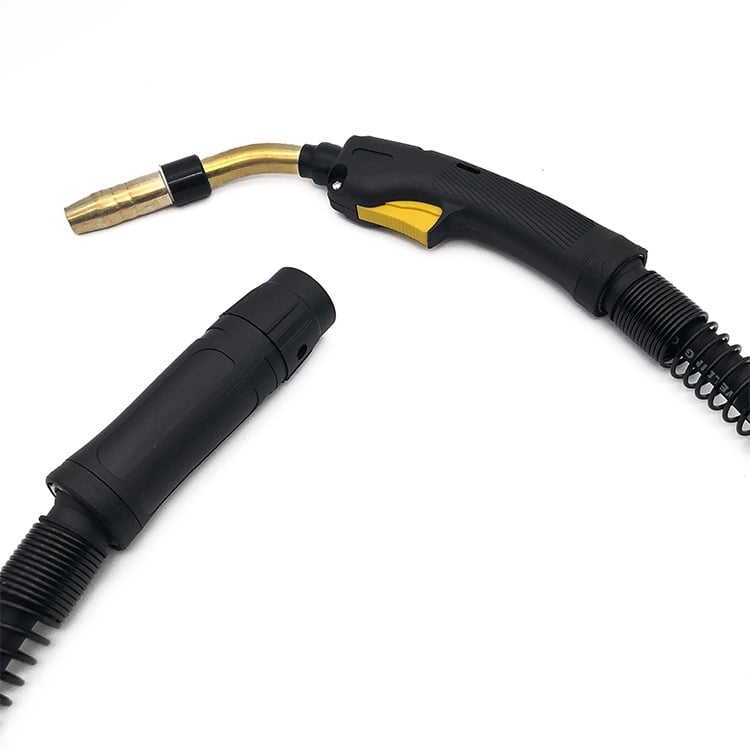

| BND 200A AIR COOLED MIG WELDING TORCH | ||
| Technical Data： | Rating: 200A CO2/150A Mixed Gases | |
| Duty Cycle: 60 % | ||
| Wire Size: .025”-.045”(0.6-1.2mm) | ||
| Type | 10ft(3.0m) | |
| BND200 MIG Gun Euro Connector | BND20010E | |
| BND200 MIG Gun Miller Connector | BND20010M | |
| BND200 MIG Gun Tweco Connector | BND20010T | |
| BND200 MIG Gun Lincoln Connector | BND20010L | |
| No. | Description | Order |
| A | Nozzle Brass 5/8″ 15.9mm | 4391 |
| Nozzle Brass 1/2″ 12.7mm | 4392 | |
| Nozzle Copper 5/8″ 15.9mm | 4393 | |
| Nozzle Copper 1/2″ 12.7mm | 4394 | |
| Nozzle Brass 3/8″ 9.5mm | 4295 | |
| B | Contact Tip .023” 0.6mm Short 31mm | 7497 |
| Contact Tip .030” 0.8mm Short 31mm | 7488 | |
| Contact Tip .035” 0.9mm Short 31mm | 7489 | |
| Contact Tip .039” 1.0mm Short 31mm | 7496 | |
| Contact Tip.045” 1.2mm Short 31mm | 7490 | |
| Contact Tip .052” 1.4mm Short 31mm | 7498 | |
| Contact Tip 1/16” 1.6mm Short 31mm | 7491 | |
| B-1 | Contact Tip .023” 0.6mm Long 50mm | 1597 |
| Contact Tip .030” 0.8mm Long 50mm | 1588 | |
| Contact Tip .035” 0.9mm Long 50mm | 1589 | |
| Contact Tip .039” 1.0mm Long 50mm | 1596 | |
| Contact Tip .045” 1.2mm Long 50mm | 1590 | |
| Contact Tip .052” 1.4mm Long 50mm | 1598 | |
| Contact Tip 1/16” 1.6mm Long 50mm | 1591 | |
| C | Gas diffuser for Short Tips | 4335 |
| C-1 | Gas diffuser for Long Tips | 4235 |
| D | Insulator | 4323R |
| E | Liner for .035”-.045” (0.9-1.2mm) 10ft (3.0m) | 43110 |
| Liner for .035”-.045” (0.9-1.2mm) 15ft (4.5m) | 43115 | |
| Liner for .035”-.045” (0.9-1.2mm) 25ft (7.6m) | 43125 | |
| No. | Description | Order |
| 1 | Swan neck | 4786* |
| 2 | Insulator | 4780 |
| 3 | End fitting | 4213B |
| 4 | Cone nut | 4305 |
| 5 | Front Handle | 1880198 |
| 6 | Hook | 1790002 |
| 7 | Switch | 5662 |
| 8 | Cable Ball Joint & Support Spring Big | 400.1010B |
| 9 | Gun & Cable Asbly 10ft(3.0m) | 1060121 |
| Gun & Cable Asbly 12ft(3.6m) | 1060122 | |
| Gun & Cable Asbly 15ft(4.6m) | 1060123 | |
| 10 | Euro Direct Plug Kit | 1199E |
| 10-1 | Rear Handle | 501.2248 |
| 10-2 | Adaptor nut | 4861 |
| 10-3 | Bernard Euro Central Connector | 5060 |
| 11 | Rear Handle American Brand | 2520047 |
| 12 | Control Wire (Tweco/Miller) | MAK-354 |
| 12-1 | Control Wire (TLincoln) | LAK-354 |
| 13 | Tweco Central Connector | 2200103 |
| 14 | Miller Central Connector | 2200101 |
| 15 | Lincoln Central Connector | 2200099 |
| 15-1 | Gas Tube | LKGAS |
Bnd 200A CO2 mig welding torch package
* 1 piece Bnd mig torch 200A package in a carton
